VICTRIX PRO V2 100 - 120 - 150 EU
44

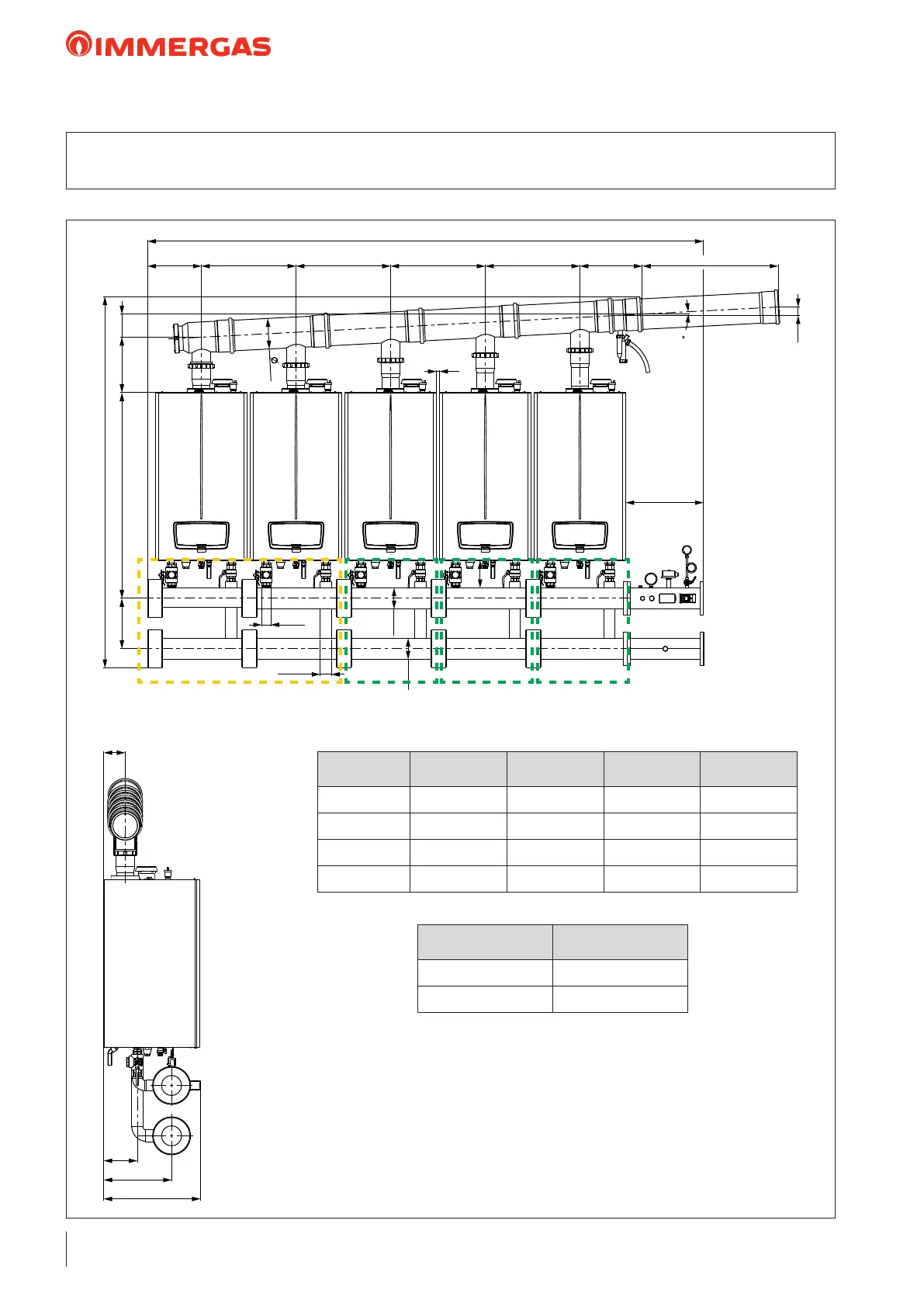

16.1 KIT DIMENSIONS AND CONNECTIONS OPTIONAL FOR VICTRIX PRO V2
100  120 EU MODULES IN SET CONFIGURATION MAXIMUM 5 APPLIANCES
140
444
220
633
353 620 620 620 620
G 1 1/2"
G 1 1/2"
DN100
DN100
180
200
20
330
1347 363
105
3
409
509
X
2000
Y
Z
Technical note
Hydraulic manifolds (optional) are equipped with non return valve and 3-way valve
on the ow pipe of each thermal module and 2-way shut o valve on the return pipe
to the thermal module.
Inserting the 3-way valve on the ow pipe of the thermal module puts it in commu-
nication with the proper heat carrying uid exhaust system in the module itself to
perform extraordinary maintenance.
Ref. Position Code KIT
A 3.033667
B 3.033668
A B B B
Reference 2 boilers 3 boilers 4 boilers 5 boilers
X 1783 mm 2403 mm 3023 mm 3643 mm
Y 2335 mm 2367 mm 2399 mm 2431 mm
Z 55 mm 87 mm 119 mm 151 mm
Ø 200 mm 200 mm 200 mm 200 mm
