VICTRIX PRO V2 100 - 120 - 150 EU
45

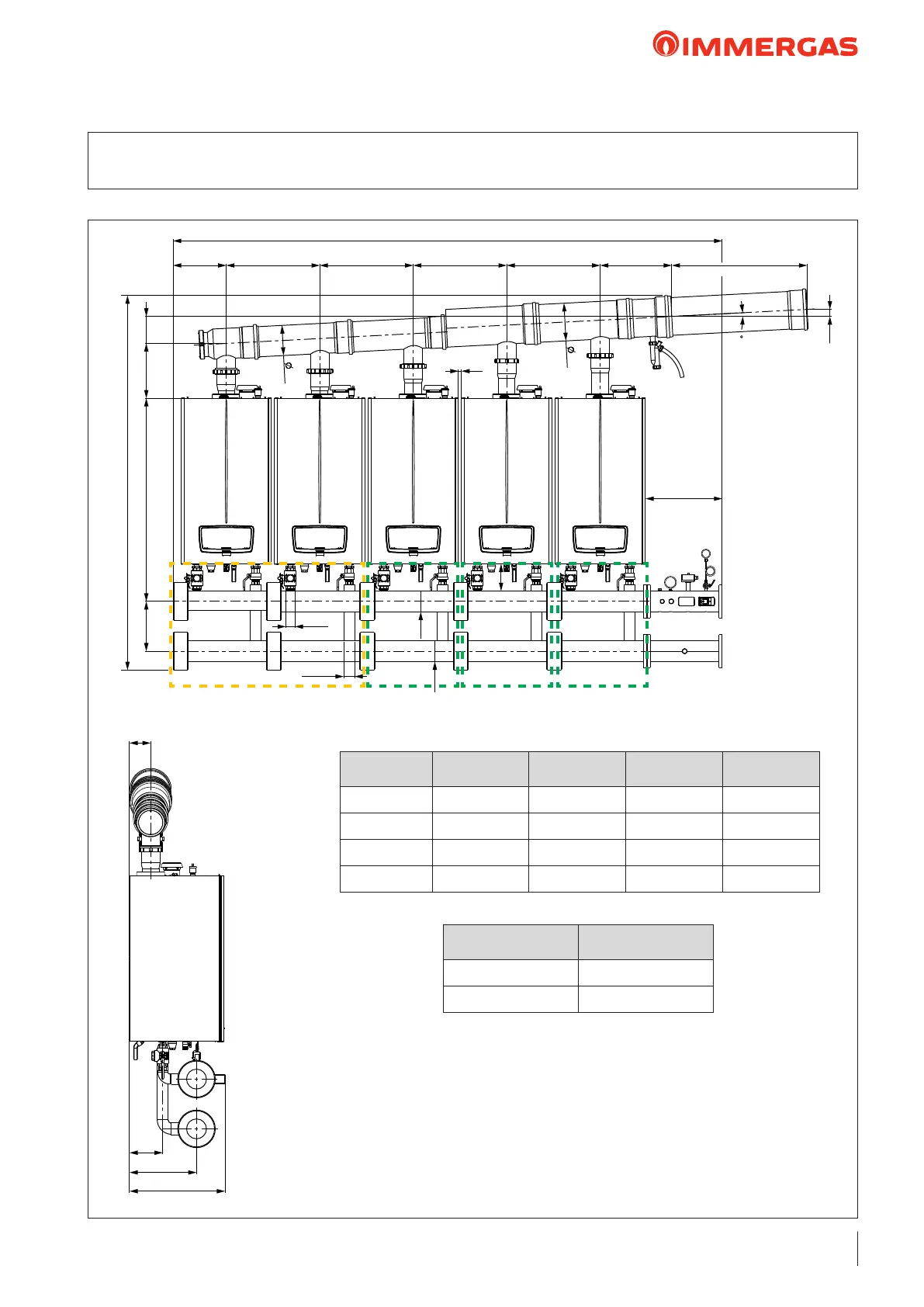

16.2 KIT DIMENSIONS AND CONNECTIONS OPTIONAL FOR VICTRIX PRO V2
150 EU MODULES IN SET CONFIGURATION MAXIMUM 5 APPLIANCES
140
444
220
633
353 620 620
G 1 1/2"
G 1 1/2"
DN100
DN100
180
200
20
330 1347 363
509
X
620 620 475
250
3
Y
Z
105
2000
Technical note
Hydraulic manifolds (optional) are equipped with non return valve and 3-way valve
on the ow pipe of each thermal module and 2-way shut o valve on the return pipe
to the thermal module.
Inserting the 3-way valve on the ow pipe of the thermal module puts it in commu-
nication with the proper heat carrying uid exhaust system in the module itself to
perform extraordinary maintenance.
A B B B
Reference 2 boilers 3 boilers 4 boilers 5 boilers
X 1782 mm 2402 mm 3022 mm 3642 mm
Y 2343 mm 2375 mm 2455 mm 2482 mm
Z 59 mm 91 mm 147 mm 179 mm
Ø 200 mm 200 mm 250 mm 250 mm
Ref. Position Code KIT
A 3.033667
B 3.033668
