VICTRIX PRO V2 180 EU
46

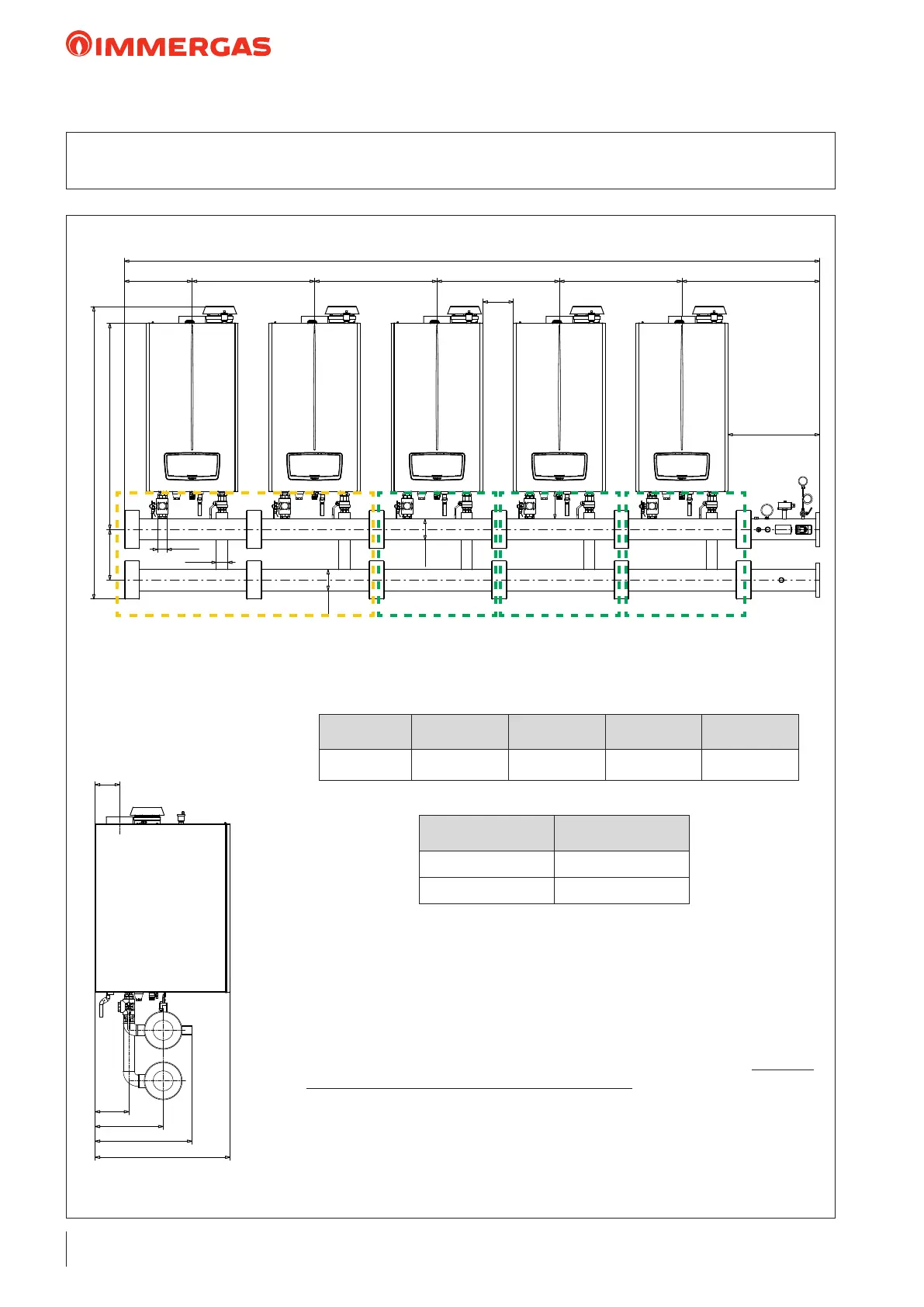

16.3 KIT DIMENSIONS AND CONNECTIONS OPTIONAL FOR VICTRIX PRO V2
180 EU MODULES IN SET CONFIGURATION MAXIMUM 5 APPLIANCES
443
800 800 800 800 900
600
X
330
1347
1912
160
220
444
882
633
DN100
DN100
G 1 1/2"
G 1 1/2"
180
200
Technical note
In this conguration, for VICTRIX PRO V2 180 EU modules in cascade, Immergas
does not supply either ue manifolds or clapet valves.
Hydraulic manifolds (optional) are equipped with non return valve and 3-way valve
on the ow pipe of each thermal module and 2-way shut o valve on the return pipe
to the thermal module.
Inserting the 3-way valve on the ow pipe of the thermal module puts it in commu-
nication with the proper heat carrying uid exhaust system in the module itself to
perform extraordinary maintenance.
A B B B
Reference 2 boilers 3 boilers 4 boilers 5 boilers
X 2143 mm 2943 mm 3743 mm 4543 mm
Ref. Position Code KIT
A 3.034938
B 3.034939
