VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU
47
G2"1/2
G2"1/2
R
M
13
8
9
6
7
13
4
10
11
11
1
5
6
2
11
11
14
12
13
13
2
3
KEY:
1 - ermal modules in set conguration
2 - 2 Valve xing ttings
3 - Ball valve
4 - Insulation
5 - 3-way valve
6 - 2 Nipples
7 - Long insulated 90° bend in return
8 - Insulated 90° bend in ow
9 - Non return valve
10 - Insulation
11 - Insulation half-shell
12 - 2 ManifoldsG 2" ½
13 - Insulation half-shell
14 - 2 Caps C1" ½
Modules
Hydraulic manifold kit G2" ½
2 modules code: 3.032338
Hydraulic manifold kit G2" ½
extension code: 3.033669
2 VICTRIX PRO V2 35-55-60-68-80 EU N° 1 --
3 VICTRIX PRO V2 35-55-60-68-80 EU N° 1 N° 1
4 VICTRIX PRO V2 35-55-60-68-80 EU N° 1 N° 2
5 VICTRIX PRO V2 35-55-60-68-80 EU N° 1 N° 3

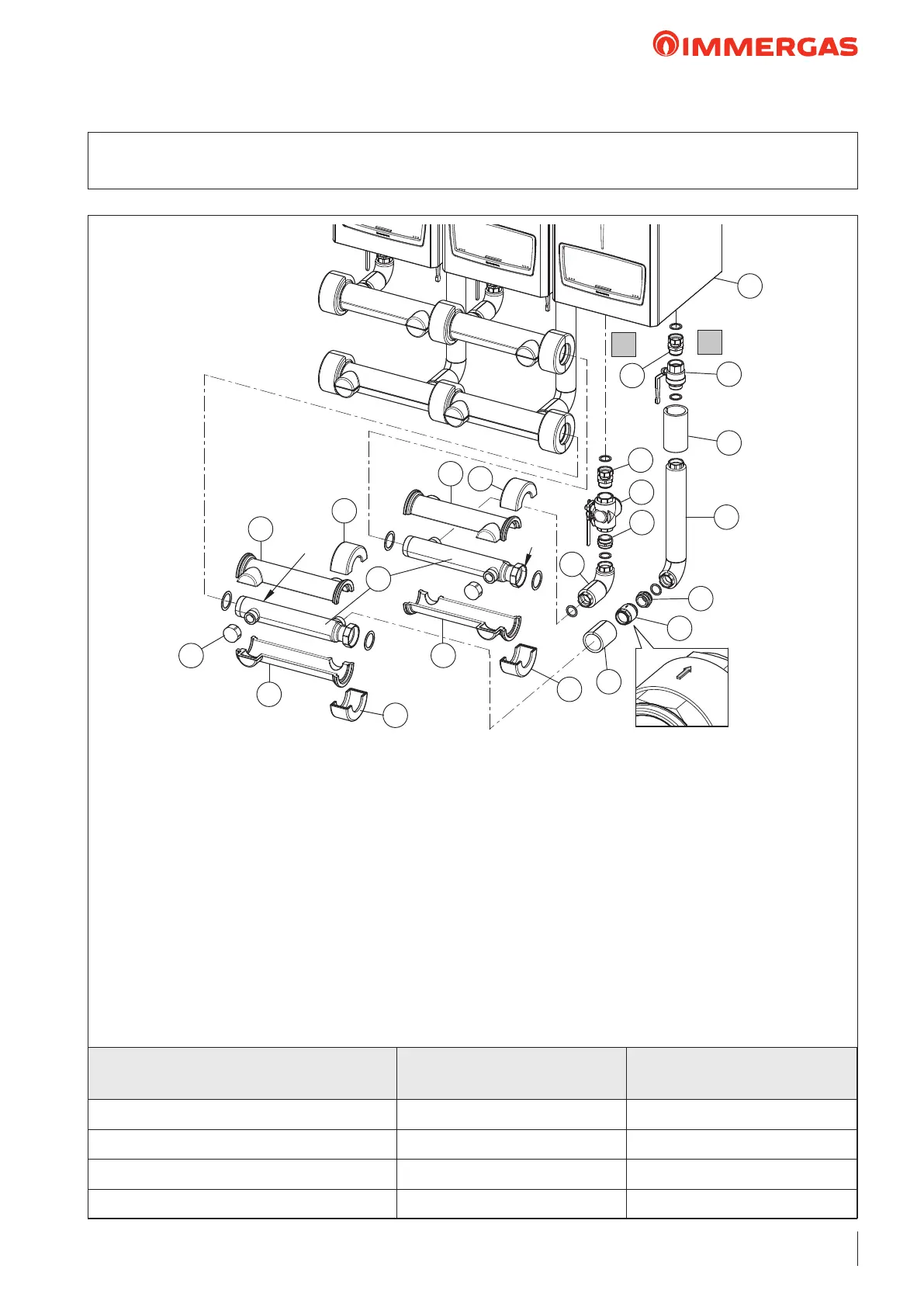

17 INSTALLATION OF HYDRAULIC MANIFOLD KIT OPTIONAL
AT RH/LH IN SET CONFIGURATION VICTRIX PRO V2 35  55 - 60 - 68 - 80 EU
