VICTRIX PRO V2 100 - 120 - 150 -180 EU
50
KEY:
1 - Flange gasket DN 100
2 - ermometer pocket
3 - Brass plug G1/2" M (possibly with F.S.O.V. tting)
4 - INAIL type-approved pressure gauge-holder cock
5 - INAIL-approved thermometer (scale 0-120 °C)
6 - INAIL-approved manual reset thermostat (calibra-
tion temperature of 95 °C)
7 - INAIL-approved manual reset pressure switch (1-5
bar adjustment - 3 bar factory setting)
8 - Manifold - Insulated return stub pipe DN100 L=500
mm
9 - Manifold - Insulated ow stub pipe DN 100 L=500
mm
10 - Damper coil
11 - INAIL-approved pressure gauge (0-10 bar scale)
12 - INAIL-approved minimum pressure switch (0.5-1.7
bar adjustment - 0.9 bar factory setting)
13 - Nut M16
14 - Washer
15 - G 3/4" M brass plug
16 - Screw M16 x 65
M - System ow
R - System return
Safety ther-
mostat
Electrical connections diagram for INAIL safety device kit for boilers in set conguration
Safety pres-
sure switch
Minimum pressure
switch
e modular boilers, i.e. appliances comprised of multiple
modules set up by the manufacturer to operate in cascade
(set) with an original Immergas hydraulic manifold kit, must
be considered a unique generator, which assumes the serial
number (factory number) of the thermal module nearest to
the INAIL safety devices. It is therefore possible to ank up to
5 modules, with a unique INAIL safety kit.
With outdoor installation it needs to be protected using the
IPX4D protection box kit for set boiler conguration INAIL
safety devices, code 3.024038, or nonetheless protected from
the elements based on its electrical protection rating.
Immergas S.p.a. declines all liability whenever the installer does
not use the devices and INAIL-approved Immergas original kits
or uses them improperly.
e sensitive elements of the INAIL safety devices must be set
up as described in the installation instructions, in compliance
with the provisions set forth in the ''R'' collection.
For INAIL design purposes, by installing the Immergas safety
Immergas, there are already the following type-approved
INAIL devices: Pressure gauge-holder cock, pressure gauge,
thermometer, manual reset thermostat, manual reset maxi-
mum pressure switch, and manual reset minimum pressure
switch (the boiler is already equipped as per standard with
5,4-bar safety valve and standard draining funnel).
ere is a tting for an expansion vessel on the ow and return
stub pipes.
N.B.: e gure illustrates the INAIL safety device kit instal-
lation with the outlet on the right side, however, it is also to
install the kit with the outlet on the le side.

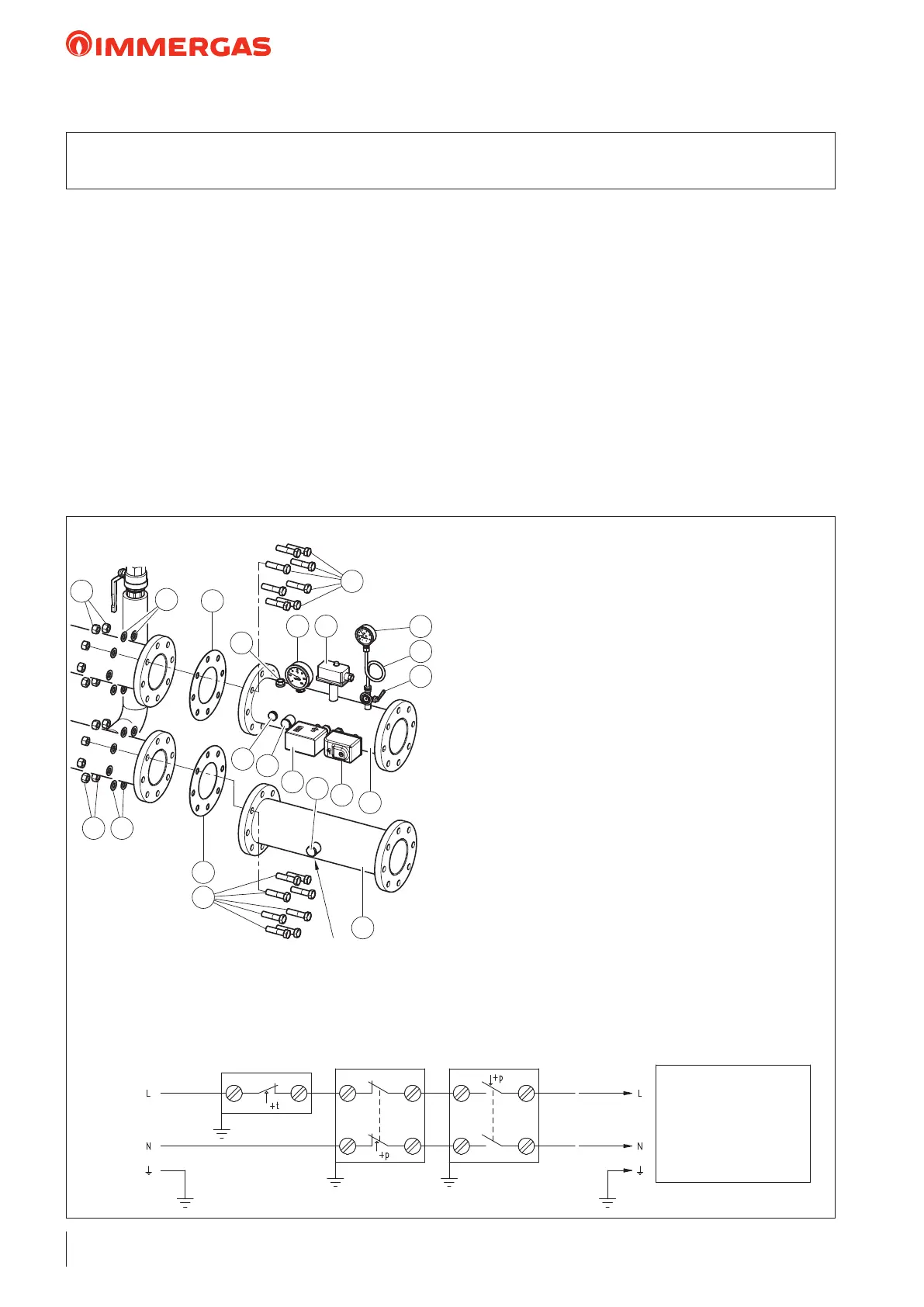

18.1 INAIL SAFETY DEVICES KIT DN 100 AT RH/LH FOR VICTRIX PRO V2 100  120  150
 180 EU MODULES IN SET CONFIGURATION CODE: 3.023961
M
R
1
1
2
4
5
15
3
6
7
12
10
11
9
8
15
G3/4"
16
16
14
13
14
13
To the supply
Single or set boiler
conguration
230 Vac
50 Hz
MAINS
