VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU
56
R
M
1
2
2 4
9
10
14
5
12
3
3
7
63
11
13
8
KEY:
1 - 2 Gaskets 18.5x11.5x2 AFM 34/2
2 - 4 Gaskets 56x44x2 AFM 37
3 - 3 Gaskets 75x55x2 mm in Fasit So RG
4 - Plate heat exchanger threaded connections Ø 2"
5 - O.R. 18X2 Nitrile 70 SH
6 - Hose union tting type Roma fem. G½" X15
7 - Cock G½" MF with bar hold
8 - Automatic air vent valve ½" mini
9 - Cap ½" F hex key 23 mm
10 - Brass plug Kramer G½" male
11 - Pipe DN65 G2" ½ MF return
12 - Pipe DN65 G2" ½ M G2" F ow
13 - Pipe DN65 G2" ½ M G2" F return
14 - Modules in set conguration

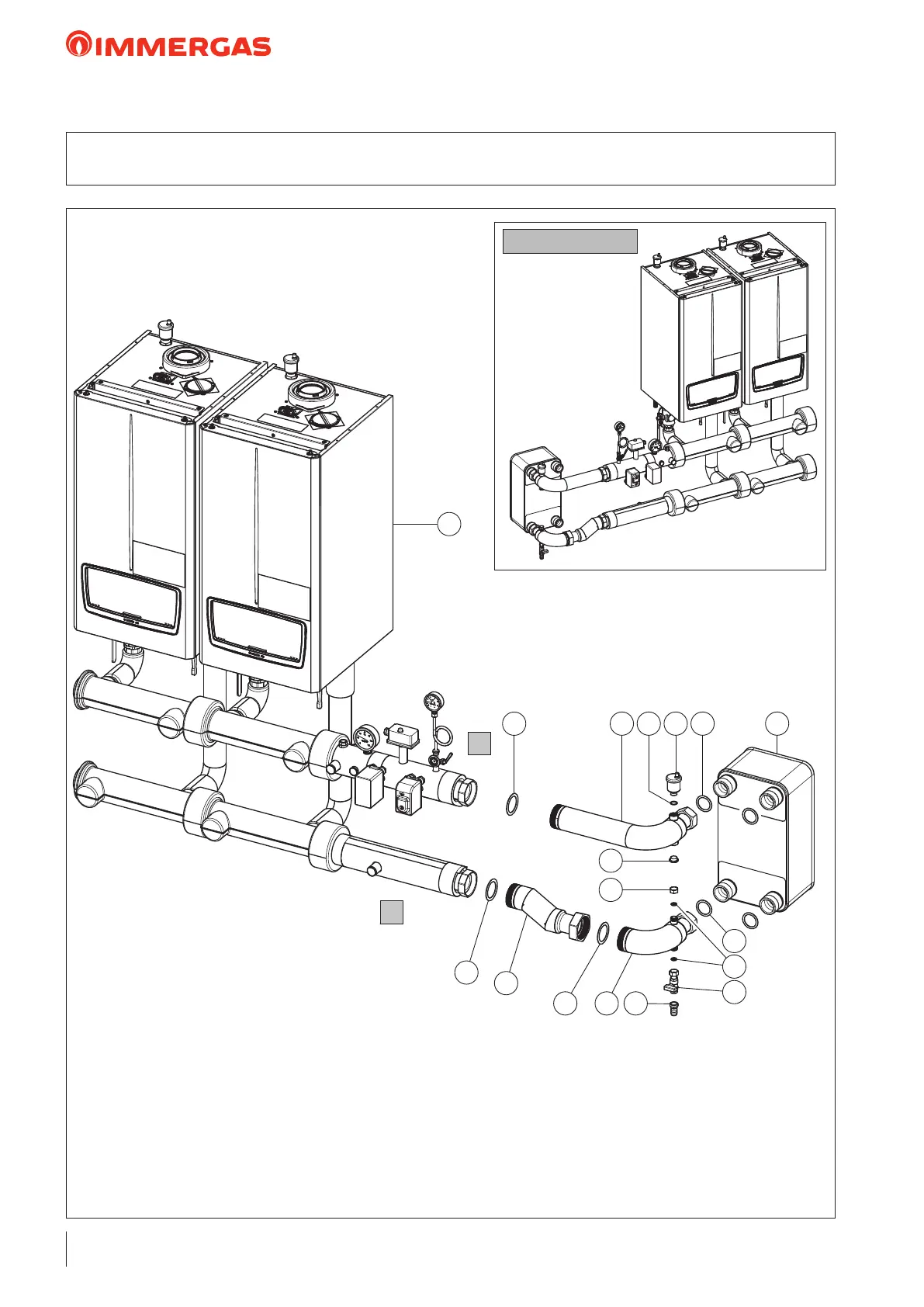

20.1 INSTALLATION OF RH/LH PLATE HEAT EXCHANGER KIT ON VICTRIX PRO V2
35  55 - 60 - 68 - 80 EU MODULES IN SET CONFIGURATION CODE: 3.033678
LEFT OUTLET
