25.3 FLUE EXHAUST MANIFOLD KIT Ø 200 WITH FLUE ADJUSTING DEVICE
TO EXPAND VICTRIX PRO V2 100  120  150 EU CODE: 3.034260
8
3
5
1
2
3
3
5
4
6
7

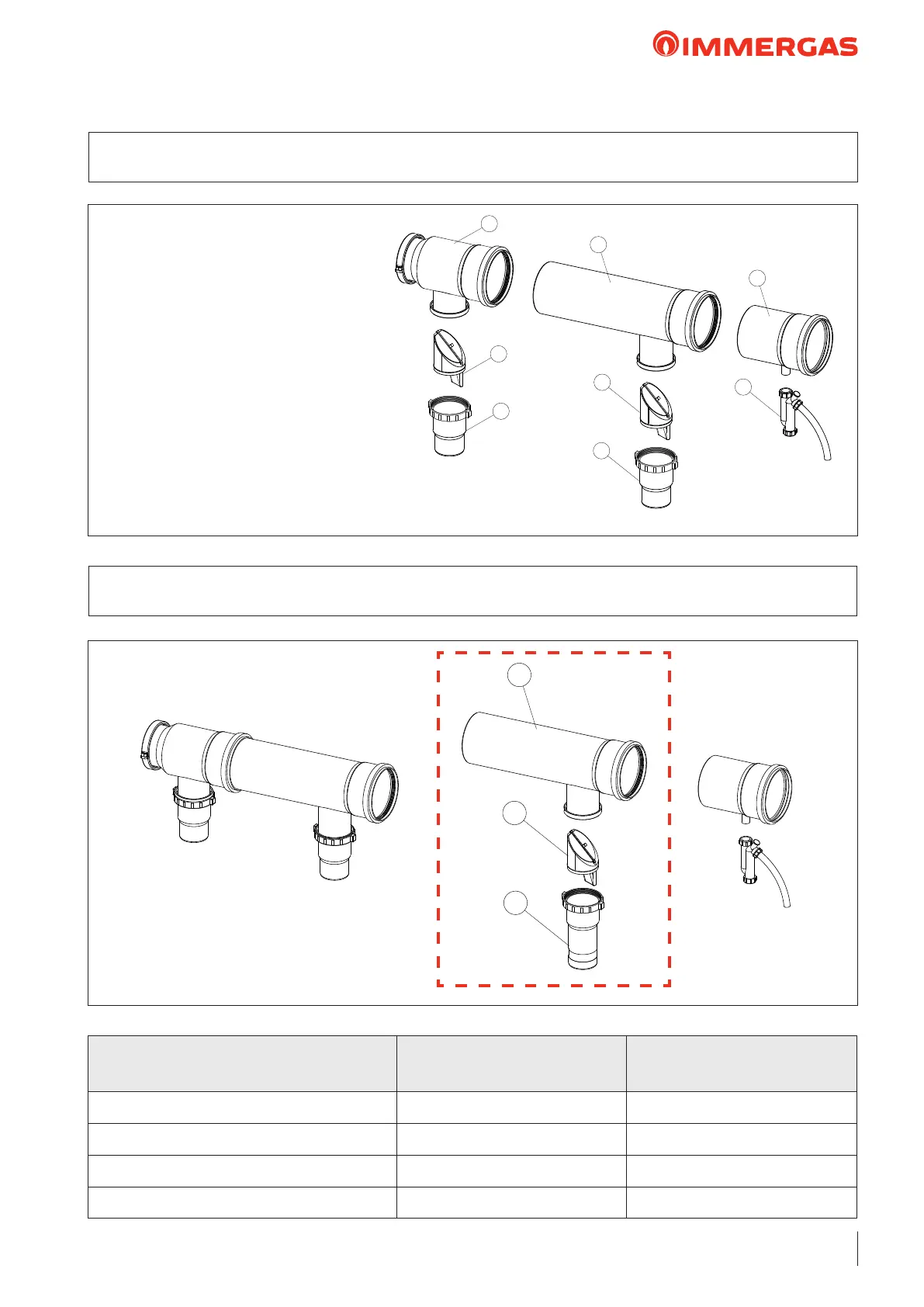

THE KIT INCLUDES:
1 - 1st Ø 110-125 Module connection
2 - 2nd Ø 110-125 Module connection
3 - Clapet valve Ø 125
4 - 1st Ø 200 Module manifold
5 - 2nd Ø 200 Module manifold
6 - Manifold for initial section Ø 200
7 - Drain trap unit
25.2 FLUE EXHAUST MANIFOLD KIT Ø 200 WITH
VICTRIX PRO V2 100  120  150 EU FLUE ADJUSTING DEVICE CODE: 3.034259
THE KIT INCLUDES:
3 - Clapet valve Ø 125
5 - Additional Ø 200 module manifold
8 - Additional Ø 110-125 module manifold
Modules
200 Ø Flue manifold kit
code: 3.034259
200 Ø Flue manifold kit for
expansion code: 3.034260
2 VICTRIX PRO V2 100-120-150 EU N° 1 --
3 VICTRIX PRO V2 100-120-150 EU N° 1 N° 1
4 VICTRIX PRO V2 100-120 EU N° 1 N° 2
5 VICTRIX PRO V2 100-120 EU N° 1 N° 3
