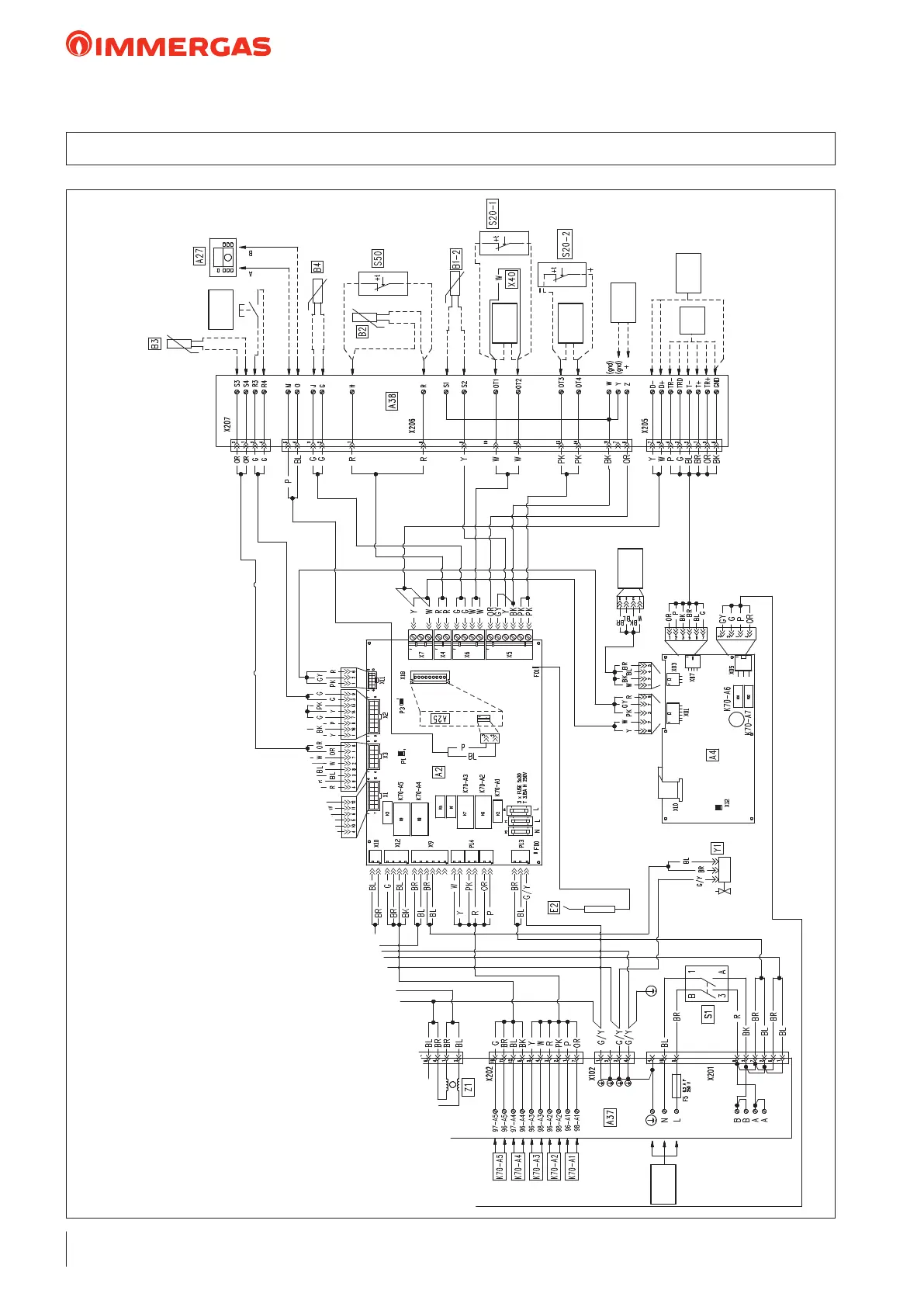

26 VICTRIX PRO V2 EU WIRING DIAGRAM
1
2
3
4
5
6
7
8
KEY:
BK - Black
BL - Blue
BR - Brown
CY - Cyan
G - Green
GY - Grey
G/Y - Yellow/Green
W/BK - White/Black
OR - Orange
P - Purple
PK - Pink
R - Red
W - White
Y - Yellow
1 - 230 Vac 50Hz Power supply
2 - Testing/iXTool (Bus microm)
3 - External reset (Optional)
4 - Bus openerm 1
5 - Bus openerm 2
6 - 0-10 V analogue input
7 - Modbus (Slave)
8 - Modbus (Master)
