Serial Port
• Used to connect the MicroScribe to the
Host Computer

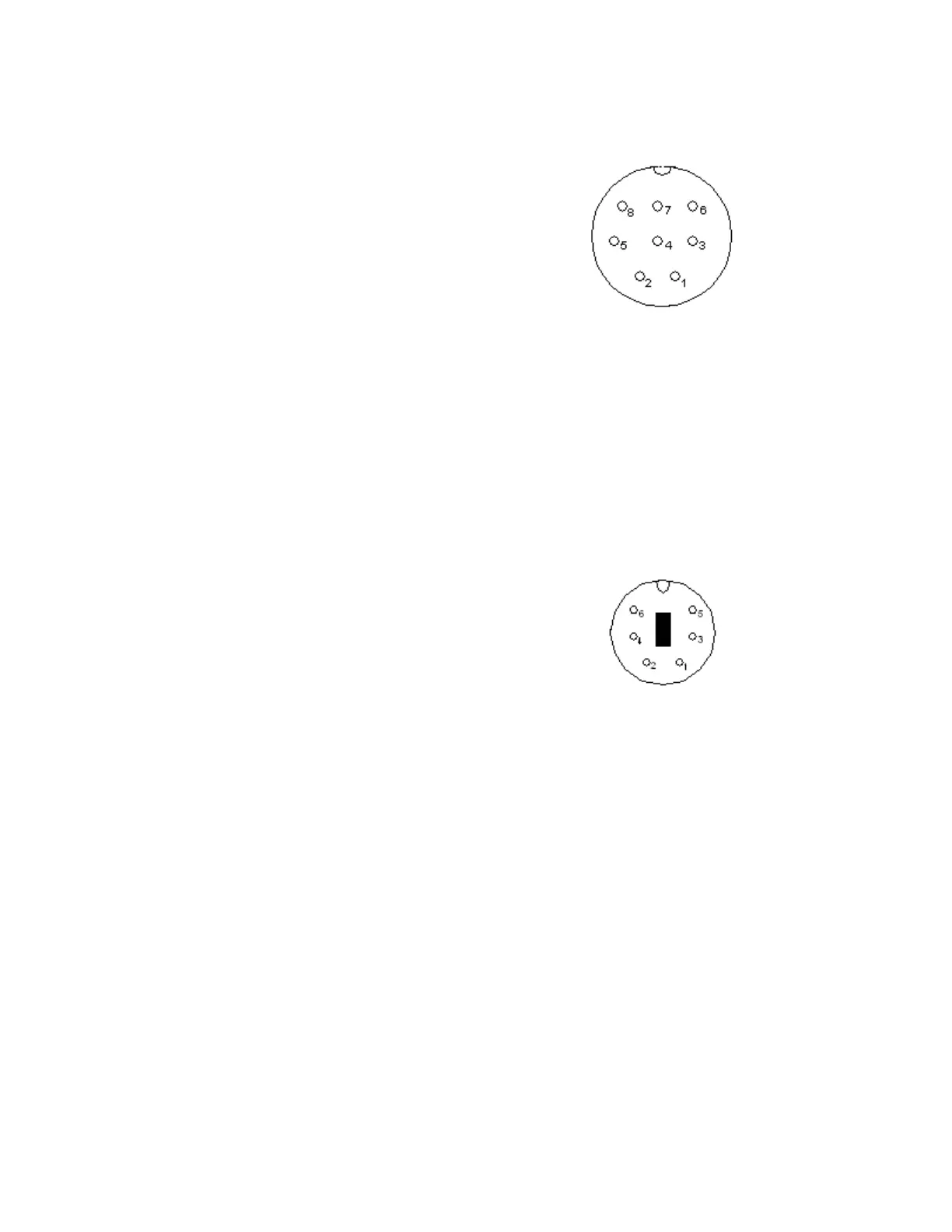

• Uses Mini-DIN 8 type connector
• Serial cables for PC-AT (DB-9) and
Apple Macintosh (Mini-DIN 8) are
available from Immersion Corp. Order
part # CCABLE-PCD8 (PC and
compatibles) or part # CCABLE-
MACD8 (for Macintosh and select SGI
systems).
Pin Number Signal Name Signal Description
1 NC Not connected
2 NC Not Connected
3 Tx Transmit Data
4 GND Electrical Ground
5 Rx Receive Data
6 NC Not connected
7 NC Not connected
8 NC Not connected
Digital Accessory Port
• Mini-DIN 6 type connector.
• Use only with Immersion Corp.
approved pedal/digital input device.
Pin Number Pedal Port Signal Name Signal Description
1 GND Electrical Ground
2 NC Not Connected
3 A3 Signal 3
4 A0 Signal 0
5 A2 Signal 2
6 A1 Signal 1
Power Port
• Use Immersion Corporation-supplied power supply. Immersion Corporation can provide
power supplies for international use. Please call for details. Immersion Corporation is not
responsible for any damage resulting from the use of a non-Immersion Corporation
authorized power supply.
• Immersion P/N CPS5-U is designed to accommodate worldwide voltages.
