ImoLaza Smart Sprinkler Controller User Manual

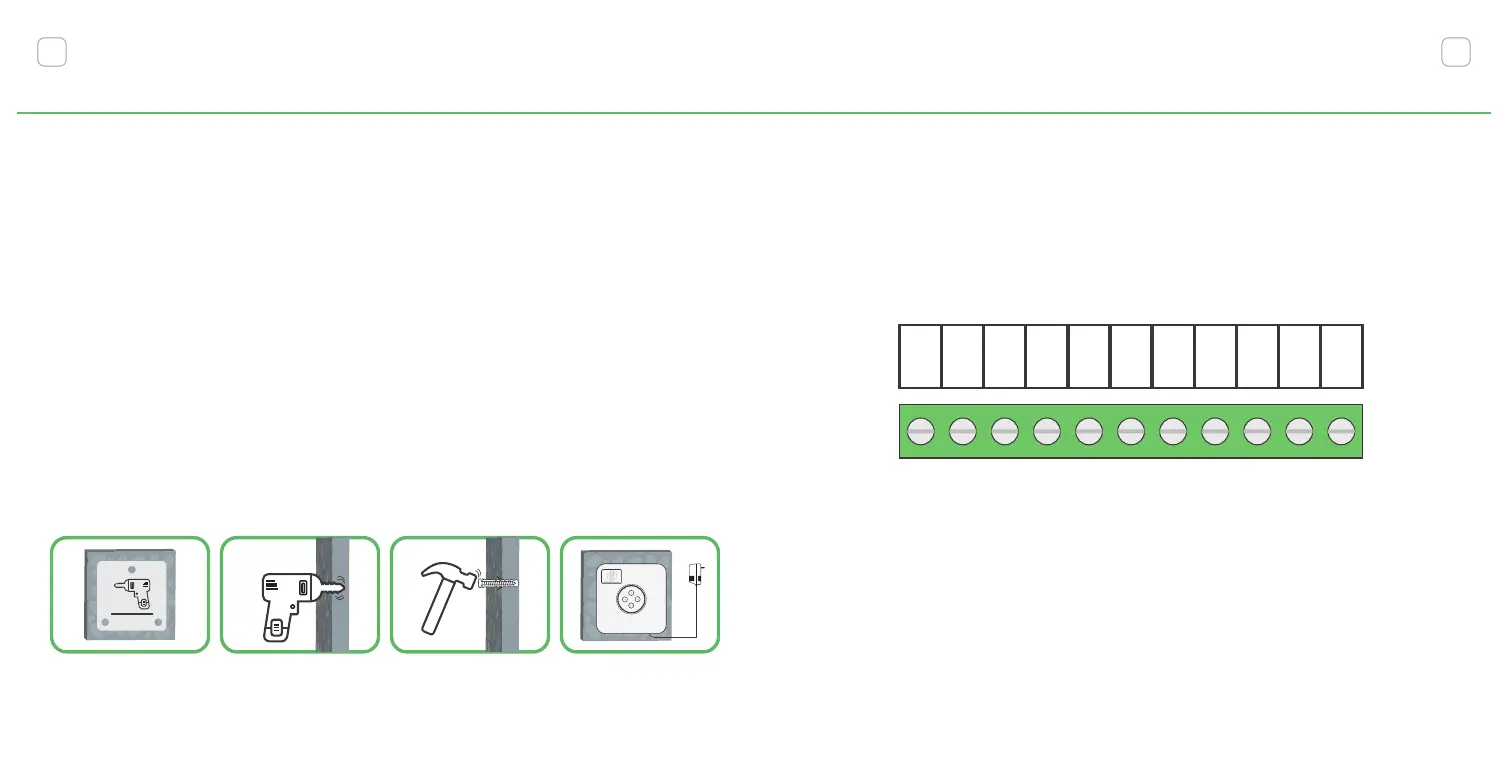

1. Use peorated label paper to mark where you want to install
the sma controller.
2. Drill holes for the anchors at the marked places using the
corresponding bit to drill through the dwall.
3. Use a hammer to tap lightly until each anchor point is in place.
4. Connect sprinkler wires according to the corresponding labels.
5. Install the product according to the xed position.
Install the New Controller
Pro tip: If you're replacing an old controller with our Wi-Fi control-
ler, be sure to mount the new controller within range of the Wi-Fi
network.
5
Referencing the photo of your previous wiring, attach
one wire from each valve to a "Common" (COM) termi-
nal and the other wires to a numbered terminal (only
one wire per terminal).
1. COM Wire:
Common wire – Imolaza contains 2 "COM" terminals and you can
connect it to any one of the "C" terminals.
Connect Wires
6
M 1 2 3 4 S1 S2
24V
一
AC
AC
24V
＋
COM COM
1
2
3
4
5
6
7
8

ImoLaza Smart Sprinkler Controller Specifications

General

Brand	ImoLaza
Model	Smart Sprinkler Controller
Category	Controller
Language	English
