Cheetah Pregius Camera with Camera Link – User Manual
July 6, 2018 Page 32 of 64 Rev 1.1

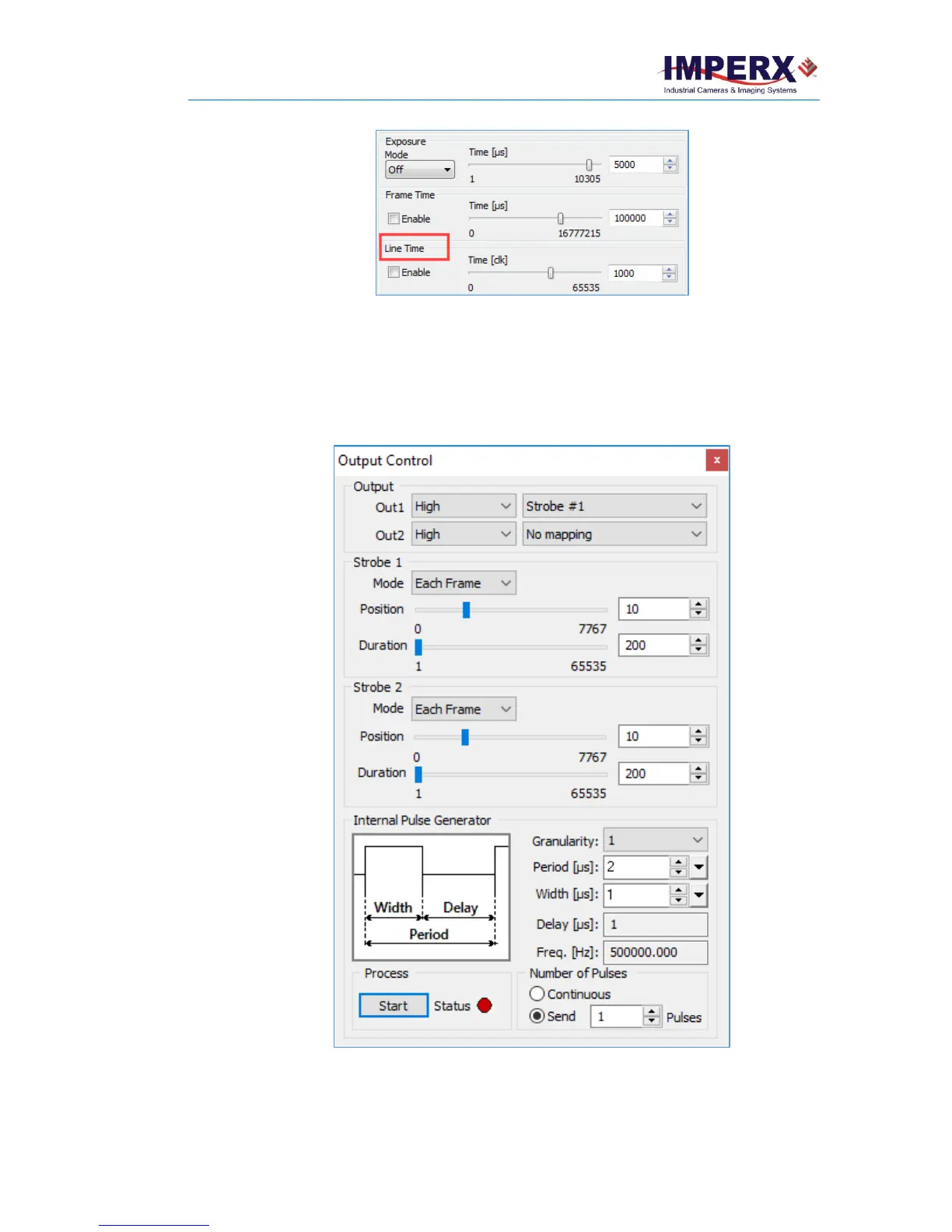

Figure 24: Line time settings.
3.6 Output
Output Control lets you configure the camera for the two strobe outputs, trigger signal,
and pulse generator.
Figure 25: Output Control.
