Cheetah Pregius Camera with Camera Link – User Manual
July 6, 2018 Page 52 of 64 Rev 1.1

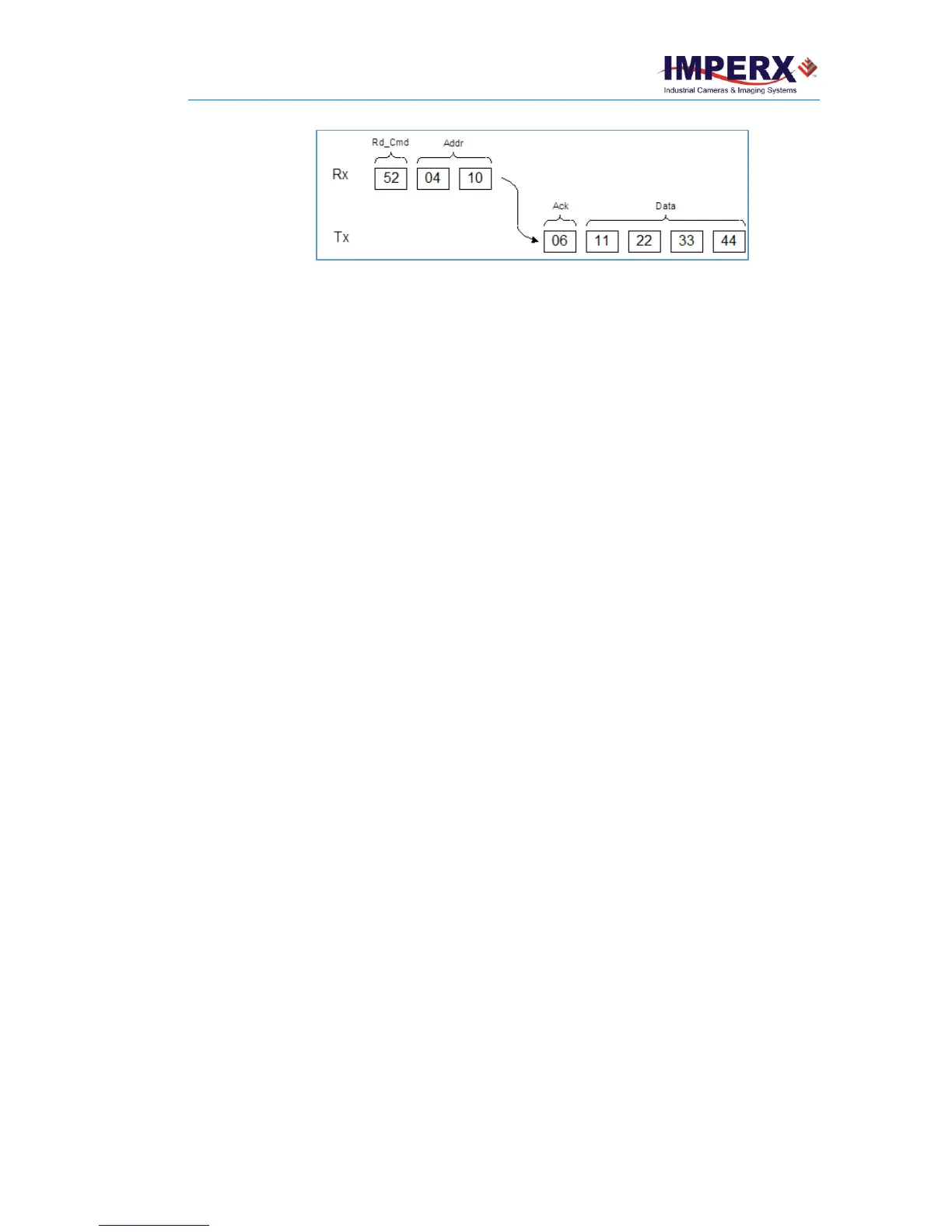

Figure 40: Normal read cycle.
Example: Read from camera register address 0x0410:
Camera Read Command: <0x52> <04> <10>
Camera returns register data payload value 0x11223344:
Register data <0x06> <11> <22> <33> <44>
5.1.1.3 Error Code Description
To manage camera reliability, use the following not-acknowledge error codes:
x00 – No error
x01 – Invalid command. An invalid command (not 52 or 57) sent to the camera.
x02 – Time-out
x03 – Checksum error
x04 – Value less than minimum
x05 – Value higher than maximum
x06 – AGC error
x07 – Supervisor mode error
x08 – Mode not supported error
