Impulse IT8012 - Pulley Block 1

13

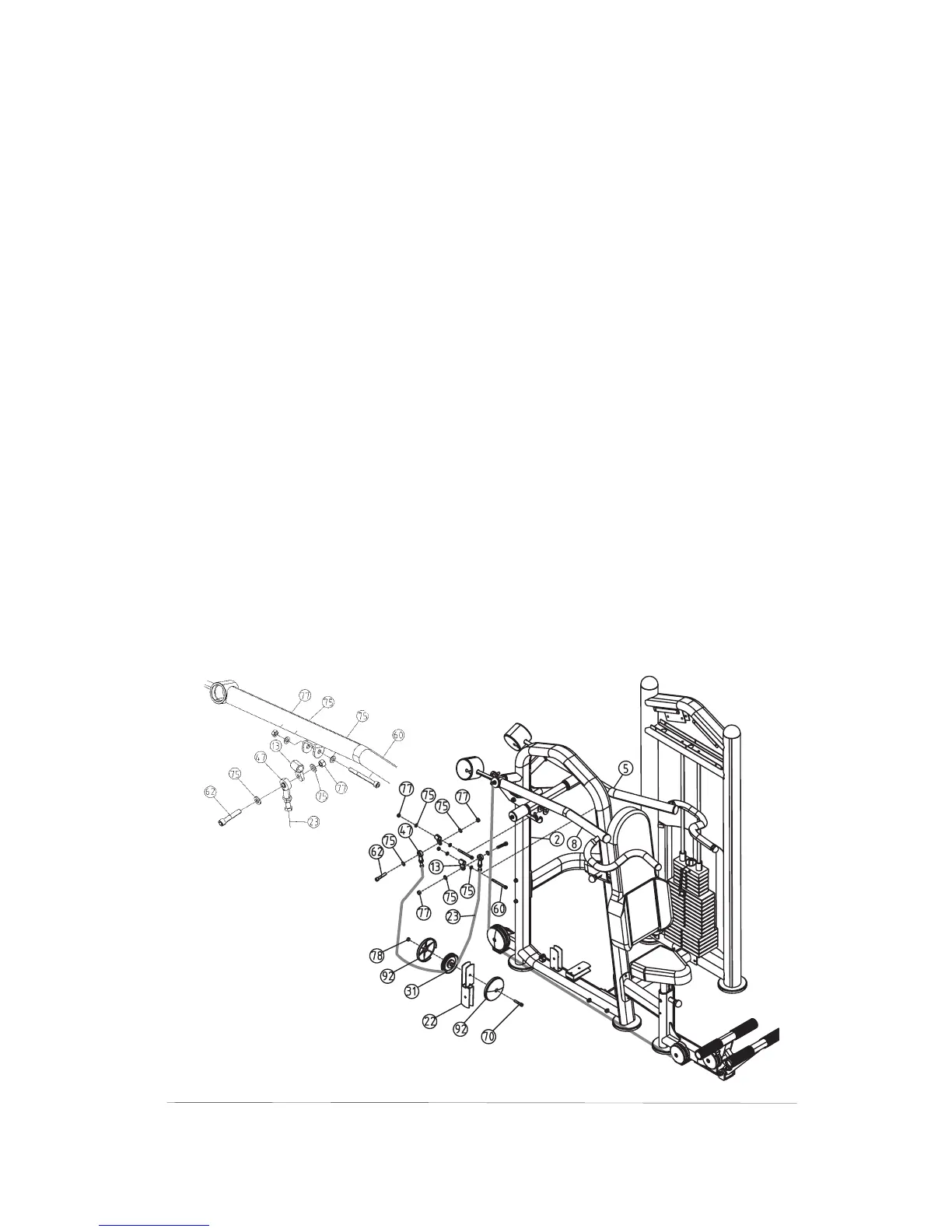

Step8 Route The Press Cable
1)Connect the Press Cable(#23) to the Univisal Coupling
Frame(#13) using:
2)Attach the Unvisal Coupling Frame(#13) to the Left
Arm(#8) using:
3)Route the Press Cable(#23) down and under the 4.5”
Pulley(#31),then secure them to the Pulley Block(#22)
using:
4)Connect the looped end of the Press Cable(#23) to the
Unvisal Coupling Frame(#13) using:
5)Attach the Unvisal Coupling Frame(#13) to the Right
Arm(#5) using:
one Allen Bolt(#62) M12×40 one Nylon Locknut(#77) M12
two Washers(#75)
one Allen Bolt(#60) M12×60 two Washers(#75)
one Nylon Locknut(#77) M12
one Shoulder Bolt(#70) M10×50 two 4.5” Pulley Covers(#92)
one Nylon Locknut(#78) M10
one Allen Bolt(#62) M12×40 one Nylon Locknut(#77) M12
two Washers(#75)
one Allen Bolt(#60) M12×60 two Washers(#75)
one Nylon Locknut(#77) M12
ΦΦ
ΦΦ
ΦΦ
ΦΦ
13× 24×1 5
13× 24×1 5
13× 24×1 5
13× 24×1 5
.
.
.
.
