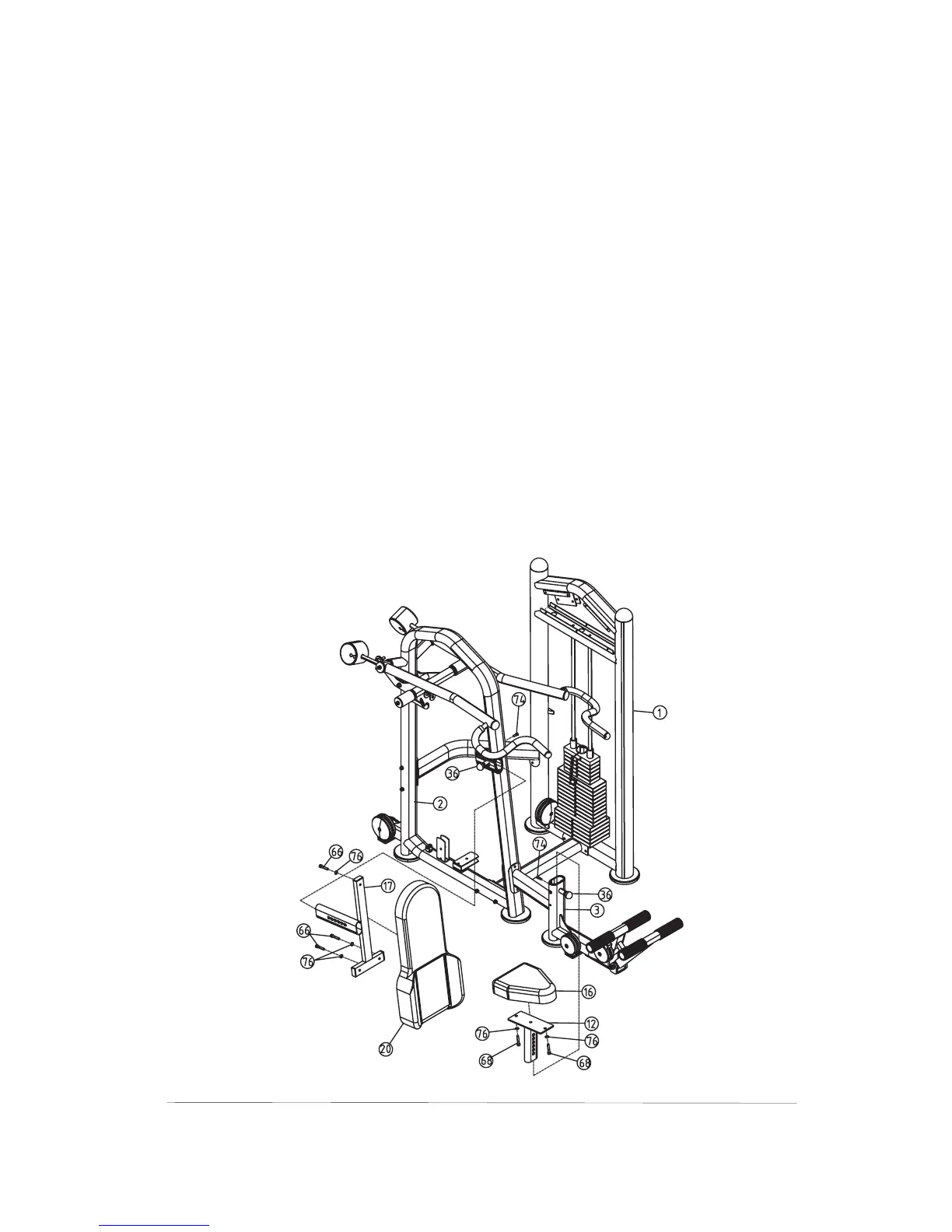

Step7 Assemble The Pads
1)Attach the Back Pad(#20) to the Back Pad Support
(#15) using:
2)Insert the Back Pad Support(#15) into the Side Upri-
ght(#2),then secure it into place by the Pop Pin(#36)
and the Should Bolt(#74).
3)Attach the Seat Pad(#16) to the Seat Pad Support(#12)
using:
4)Insert the Seat Pad Support(#12) into the Seat Frame
(#3) then secure it into place by the Pop Pin(#36) and
the (#74).
three Allen Bolts(#66) M10×50
three Washers(#76) 11× 20×2
two Allen Bolts(#68) M10×30
two Washers(#76) 11× 20×2
ΦΦ
ΦΦ
Should Bolt
To Next Page
