11

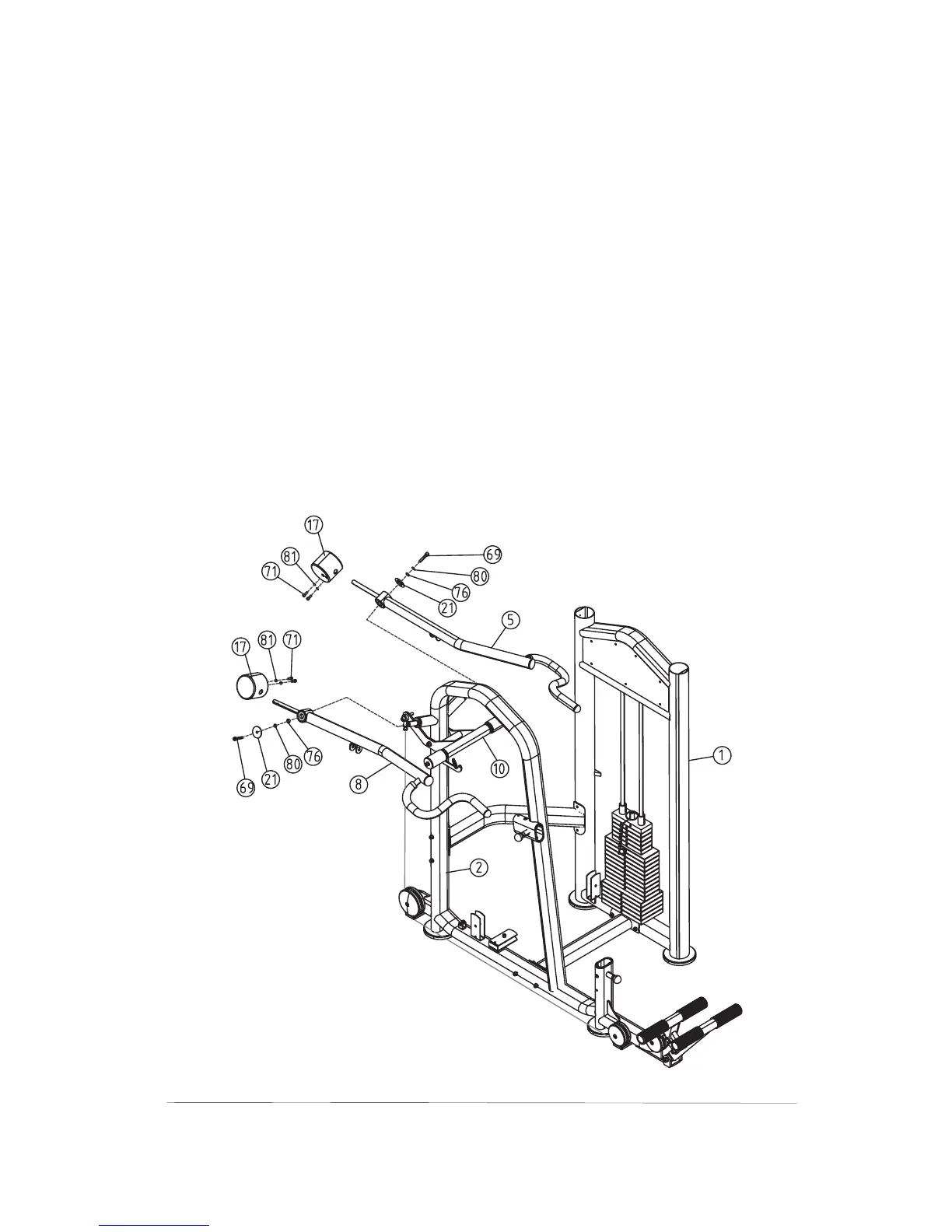

Step6 Assemble The Lift Arms
1)Insert the Left Arm(#8) onto the shaft located on the
Side Upright(#2) and secure it into place using
2)Attach the Counter Poise Block(#17) to the Left Arm
using
3)The assembly of the Right Arm(#5) is the same as the
left one.
:
(#8) :
one Allen Bolts(#69) M10×25
one Washer(#76) 11× 20×2
Spring Washers(#80) 10
Washer Pad(#21)
two Shoulder Bolts(#71) M8×25
two Spring Washers(#81) 8
ΦΦ
Φ
Φ
one
one
