Impulse IT8012 - Stopper Frame 1

9

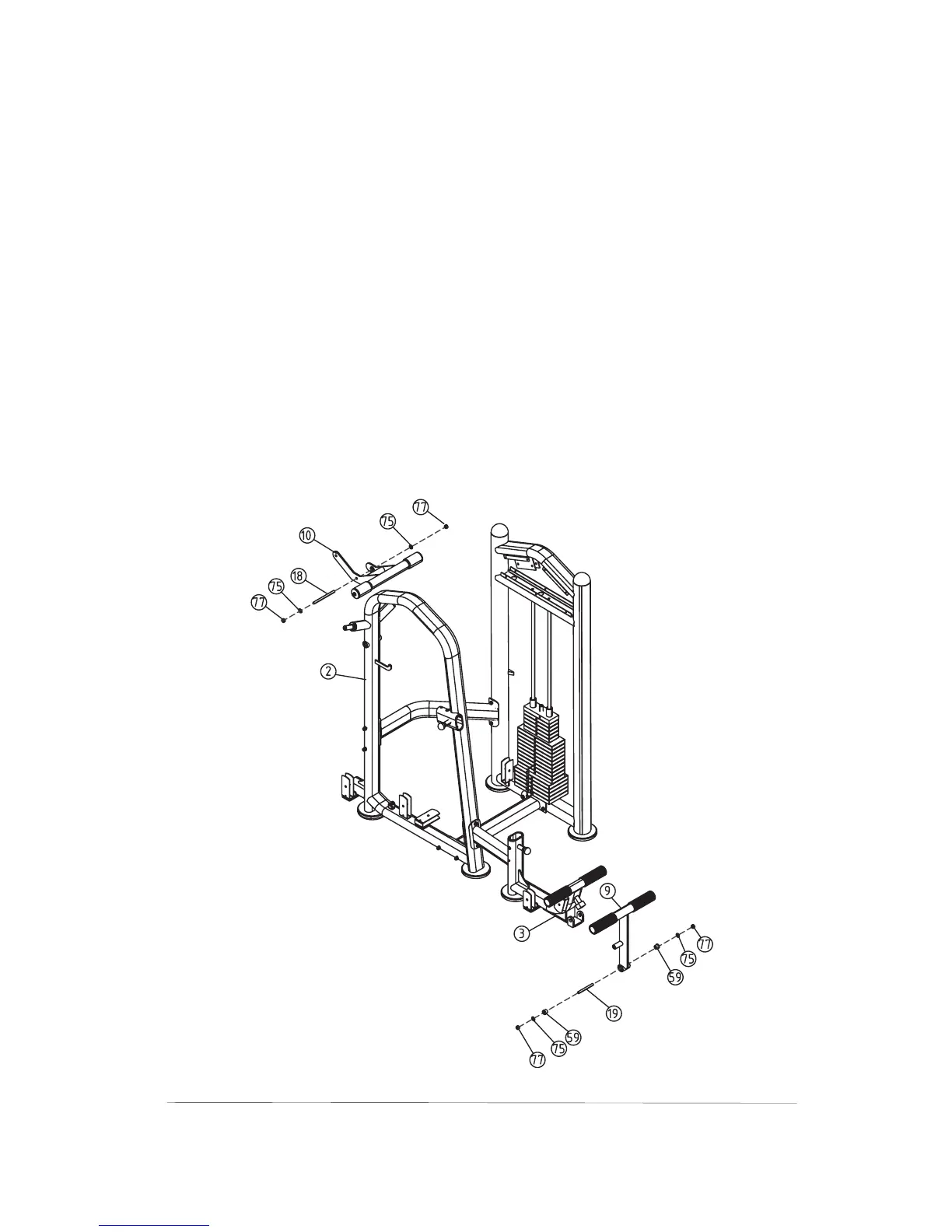

Step4 Assemble The Start Up Foot
Frame and The Stopper Frame
1)Insert the Start Up Foot Frame(#9) into the Seat Frame
(#3) and secure it into place using:
2)Attach the Stopper Frame(#10) to the Side Upright
(#2) using:
two Nylon Locknuts(#77) M12
two Washers(#75) 13× 20×1.5
two Iron Bushing ID 12(#59)
one Short Shaft(#19)
two Nylon Locknuts(#77) M12
two Washers(#75) 13× 20×1.5
one Long Screw Shaft(#18)
ΦΦ
ΦΦ
