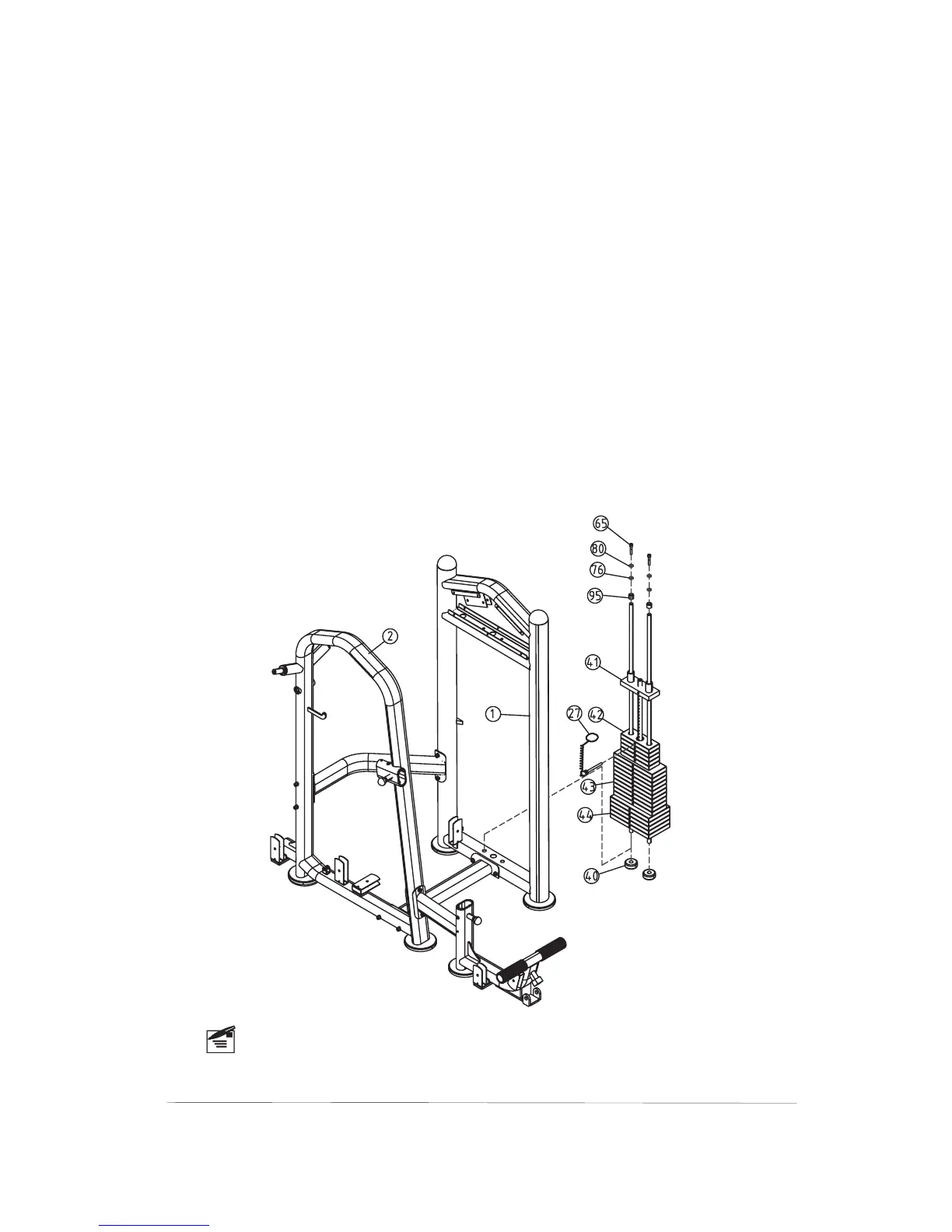

Step3 Assemble The Weight Plates
1)Insert both the Guide Rods(#26) into the Main Upright
(#1).
2)Slide the Weight Rubber Bumper(#40) down onto each
Guide Rod(#26).
3)Carefully begin sliding the Weight Plate one by one in
sequence:#44,#43,#42,#41
4)Align both top ends of the Guide Rods(#26) to the Main
Upright(#1) and secure them using:
two Allen Bolts(#65) M10×75
two Rubber Caps(#95)
two Spring Washers(#80) 10
two Washers(#76) 11× 20×2
Φ
ΦΦ
Make sure that Washers(#76)and Spring Washers
(#80) are on the top side.
Note
To Next Page
