Impulse IT8012 - Page 9

7

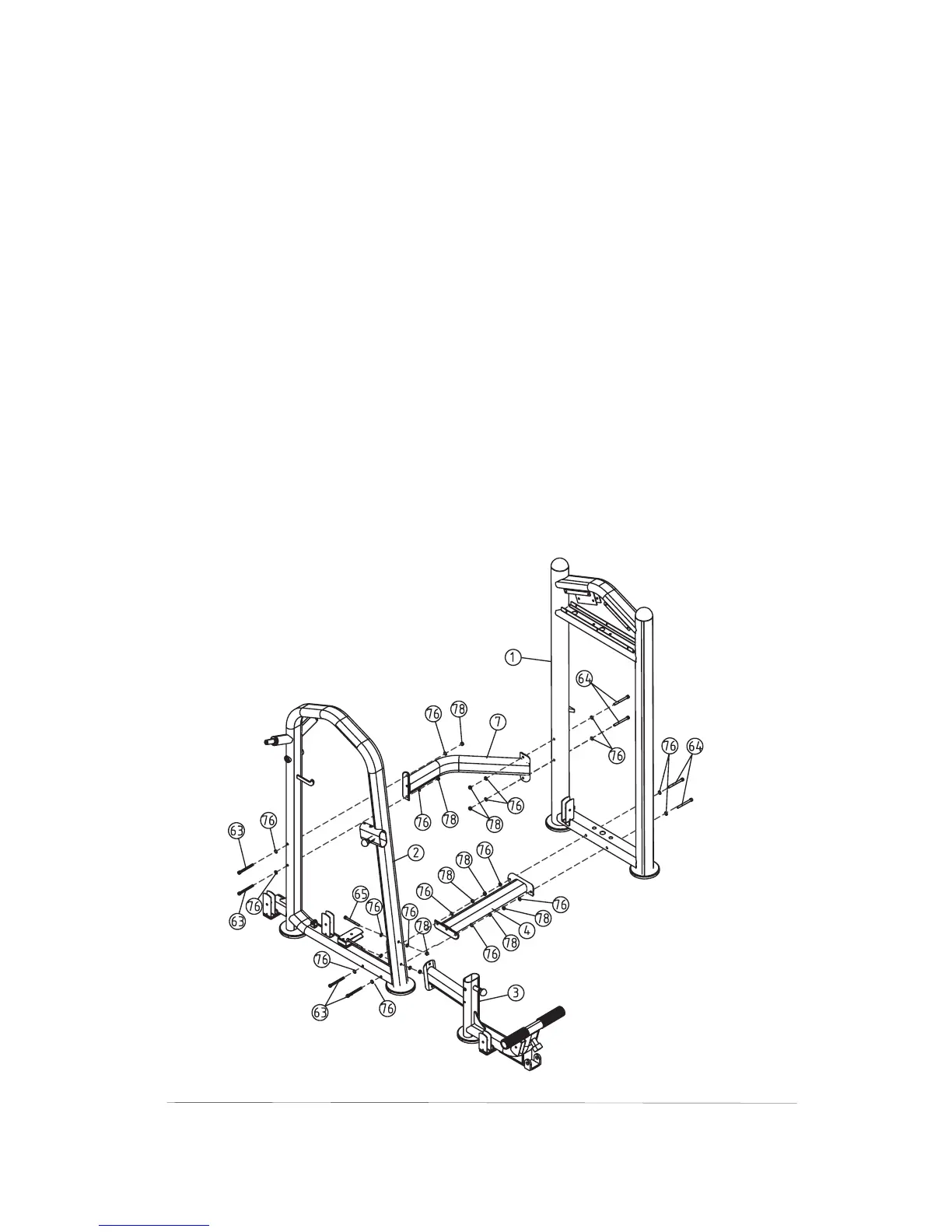

Step2 Assemble The Frame
1)Attach the Base Cross(#4) and the Upper Cross(#7)
to the Main Upright(#1) using:
2) the Side Upright(#2) to the Base Cross(#4) and
the Upper Cross(#7), using:
3)Attach the Seat Frame(#3) to the Side Upright(#2)
using:
four Allen Bolts(#64) M10×115
eight Washers(#76) 11× 20×2
four Nylon Locknuts(#78) M10
four Allen Bolts(#63) M10×120
eight Washers(#76) 11× 20×2
four Nylon Locknuts(#78) M10
two Allen Bolts(#65) M10×75
four Washers(#76) 11× 20×2
two Nylon Locknuts(#78) M10
ΦΦ
ΦΦ
ΦΦ
Attach
