IMT 5005i User Manual

Oshkosh Corporation Classification: Unrestricted
14 IMT Electric Cranes Operation & Safety Manual # 99904381
70394445
DANGER
Electrocution Hazard
Never approach this vehicle or the
load if it is near power lines.
Death or serious injury will result from
touching or being near this vehicle if it
becomes charged.

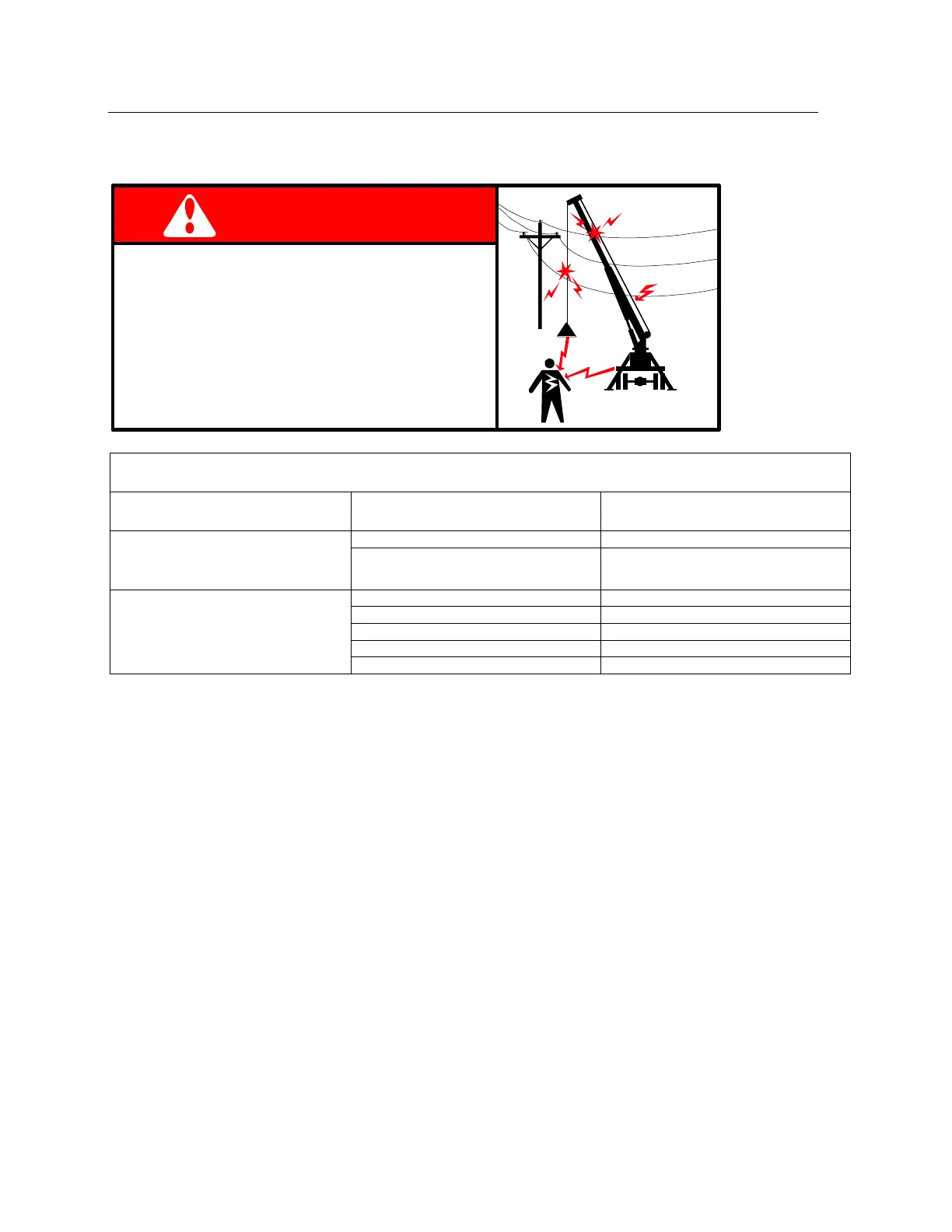

REQUIRED CLEARANCE OF CRANES FROM ELECTRICAL TRANSMISSION LINES
NORMAL VOLTAGE
kV (Phase to Phase)
MINIMUM CLEARANCE REQUIRED
Feet (meters)
OPERATION NEAR HIGH
VOLTAGE POWERLINES
From 0 to 350
20 (6.10)
Above 350 or unknown
50 (15.24)
OPERATION IN TRANSIT WITH
NO LOAD AND BOOM OR MAST
LOWERED
From 0 to 0.75
4 (0.22)
From 0.75 to 50
6 (0.83)
From 50 to 345
10 (3.05)
From 345 to 750
16 (4.87)
From 750 to 1000
20 (8.10)
GUIDELINES WHEN WORKING AROUND POWER LINES:
▪ Make sure the work area is clear of major obstacles and overhead obstructions
▪ Do not work within 20 feet (6.10 m) of high-voltage lines energized up to 35,000 volts, and
50 feet (15.24 m) of high-voltage lines energized up to 50,000 volts or of unknown voltage. It
is the law. The operator can be liable if activities in violation of this law cause injury or
property damage.
▪ Only operate in conditions where the vehicle and equipment can be stabilized. Do not set up
or operate on soft soil, mud, snow or other unstable ground conditions that could allow the
vehicle or equipment to shift and move within 20 feet (6.10 m) of a power line.
▪ Look up and live. Always check the operating vicinity for power lines before you drive into it.
Tree branches can hide power lines or cables from view. If operating at night, use powerful
lights to search for power lines or poles.
▪ During windy conditions, allow additional clearance.
▪ Do not rely on cage-type boom guards, insulating links, or proximity warning devices for
safety. Adhere to the required distances listed in table titled REQUIRED CLEARANCE OF
CRANES FROM ELECTRICAL TRANSMISSION LINES.
▪ Contact the utility company before beginning work near powerlines.
▪ Always assume overhead lines to be energized.
▪ Avoid transporting a crane over uneven terrain.
