Double & Single Line
Your crane can be operated with two-part or single-part line. Single-part line gives you a longer
load distance and faster line speed. If you require a longer load distance or a faster line speed,
first check that you have the capacity to lift your load using single part line. If you do, change the
crane to one part line using the following procedure.
1) Disconnect the two-part line load support pin which holds the hook/snatch block assembly in
place. Set aside the pin and the snatch block.
2) Disconnect the two-part line anchor pin.
3) Remove the downhaul weight from the crane boom tip.
4) Slide the downhaul weight onto the wire rope, below the locking collar. Drop it into place on
the hook. NOTE: Some cranes have two hooks. Use the hook rated for your load.

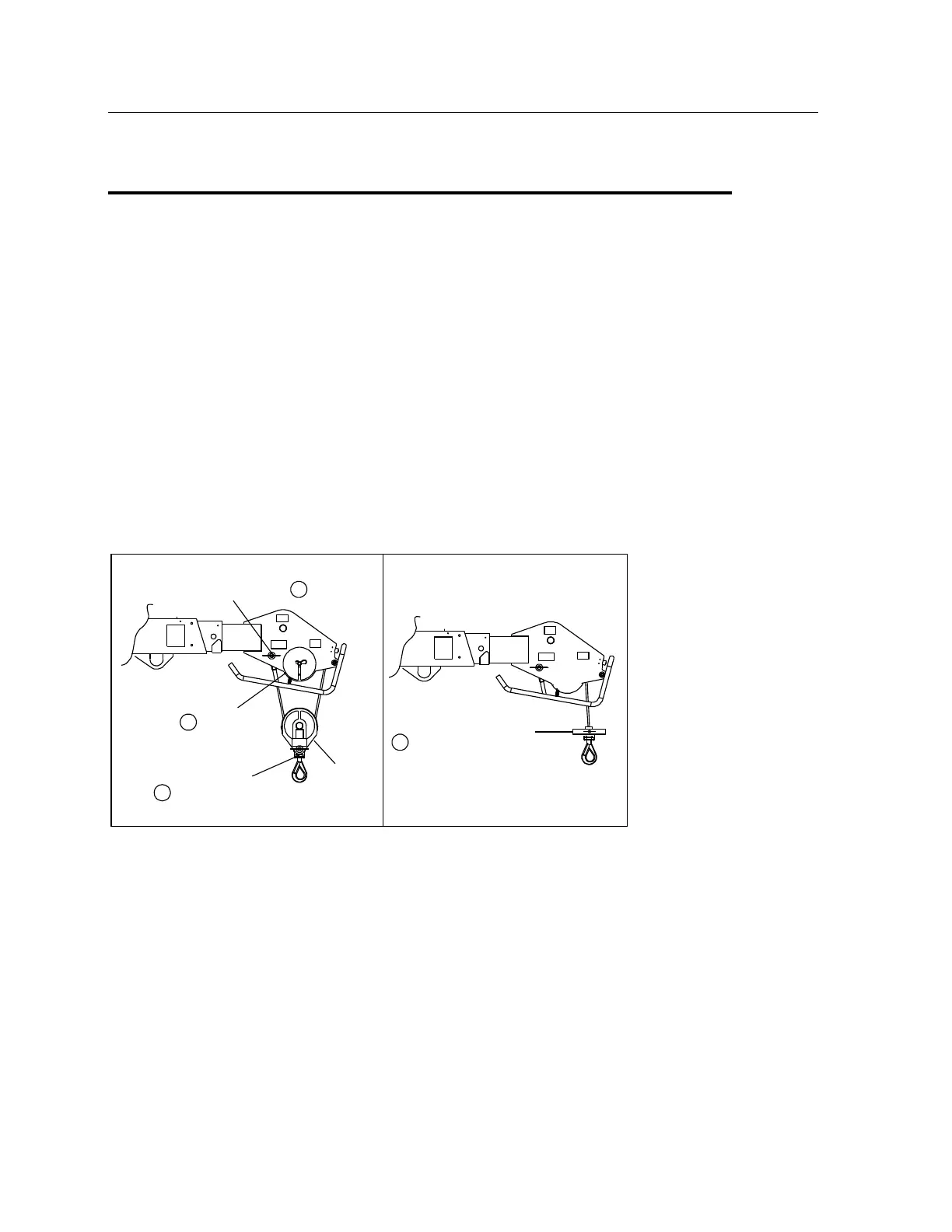

TWO-PART LINE
ANCHOR PIN
DOWNHAUL
WEIGHT
TWO-PART LINE
LOAD SUPPORT PIN
SNATCH
BLOCK
DOUBLE-PART LINE
DOWNHAUL WEIGHT
INSTALLED WITH
SINGLE-PART LINE
SINGLE-PART LINE
1
3
2
4
5) Lift your load. When finished, return the boom tip to two-part line or stow the snatch block and
pin.
