IMT 5005i User Manual
4
of 1
of 1 rating
60 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Oshkosh Corpora
tion Classification: Unrestricted
42

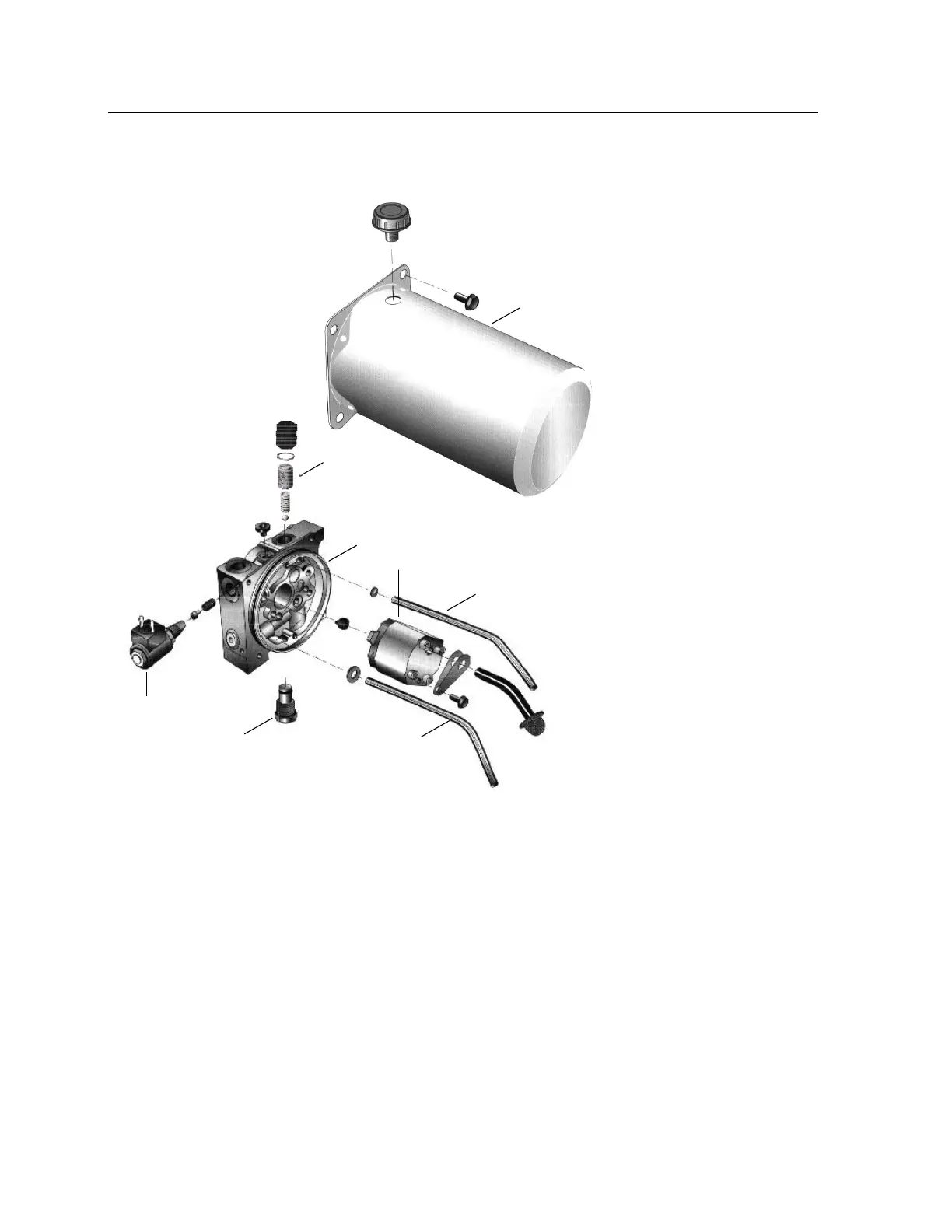

IMT Electric Cranes Operat
ion & Safety Man
ual # 99904381
A
D
A
P
TER / RESE
RVOIR CONFI
GURAT
I
ON
C
ar
tr
i
dge
V
al
ve
C
heck
V
alv
e
A
dapto
r
R
eli
ef
V
al
ve
R
etur
n
Li
ne P
ip
e,
R
el
ief
V
al
v
e
G
ear
P
um
p
Su
c
ti
on Li
ne
P
ip
e
R
etur
n
Li
ne
P
i
pe
Breath
er C
ap
R
es
er
v
oir
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
Revisions
5
Introduction
7
Crane Models & Features
9
Crane Identification
10
Safety
11
Safety Instructions
12
Daily Safety Inspection
14
Electrical Hazards
15
Crane Capacity
18
Electric Crane Danger Decal Placement
19
Work Site Planning
21
Stabilizer Operation
22
Ground Support
23
Winch Safety
24
Electric Crane Anti Two Block System
25
Holding Valves
26
Double & Single Line
27
Operation
29
Electric Crane Start-Up and Task Performance
29
IMT Electric Crane Controls
31
Tethered Remote Handle Operating Instructions
31
Radio Remote Controls
32
Proportional Remote Controls
33
Crane Shut down
35
Operation in Poor Conditions
35
Hand Signals
36
Maintenance & Repair
39
Maintenance Introduction
40
Electric Crane Power Safety
40
Maintenance Schedule
41
Electric Crane Lubrication
41
Grease Zerks
42
Crane Hydraulic Oil Specifications
42
Electric Crane Power Unit Components
43
Power Unit Troubleshooting
45
Purging Air from Hydraulic System
46
Hydraulic Pressure Relief
46
Hydraulic Cylinder Holding Capability
46
Pin Removal & Inspection
47
Electric Crane Wear Pads
48
Wire Rope Inspection
49
Wire Rope Lubrication
50
Wire Rope Maintenance
50
Wire Rope Inspection & Replacement
50
Wire Rope Lay
52
Additional Inspections
52
Excessive Load Limitation System
54
Excessive Load Limitation System (ELLS) Testing
54
ELLS Troubleshooting Procedure
55
Stability Test
57
Crane Stability
58
Stability Chart
60
