99903514:TELESCOPIC CRANE: 5-10
SECTION 5: DECALS
MANUAL OVERRIDE PROCEDURE
FOR FULL FLOW TO VALVE BANK:
Manually press and hold plunger (located on the end
of the proportional valve). While holding, operate the
desired function.
70396632
TO OPERATE INDIVIDUAL CRANE FUNCTIONS:
Manually depress plunger located on the end of each
solenoid spool.
SEE MANUAL
OVERRIDE PROCEDURE
INSIDE COVER
70396631

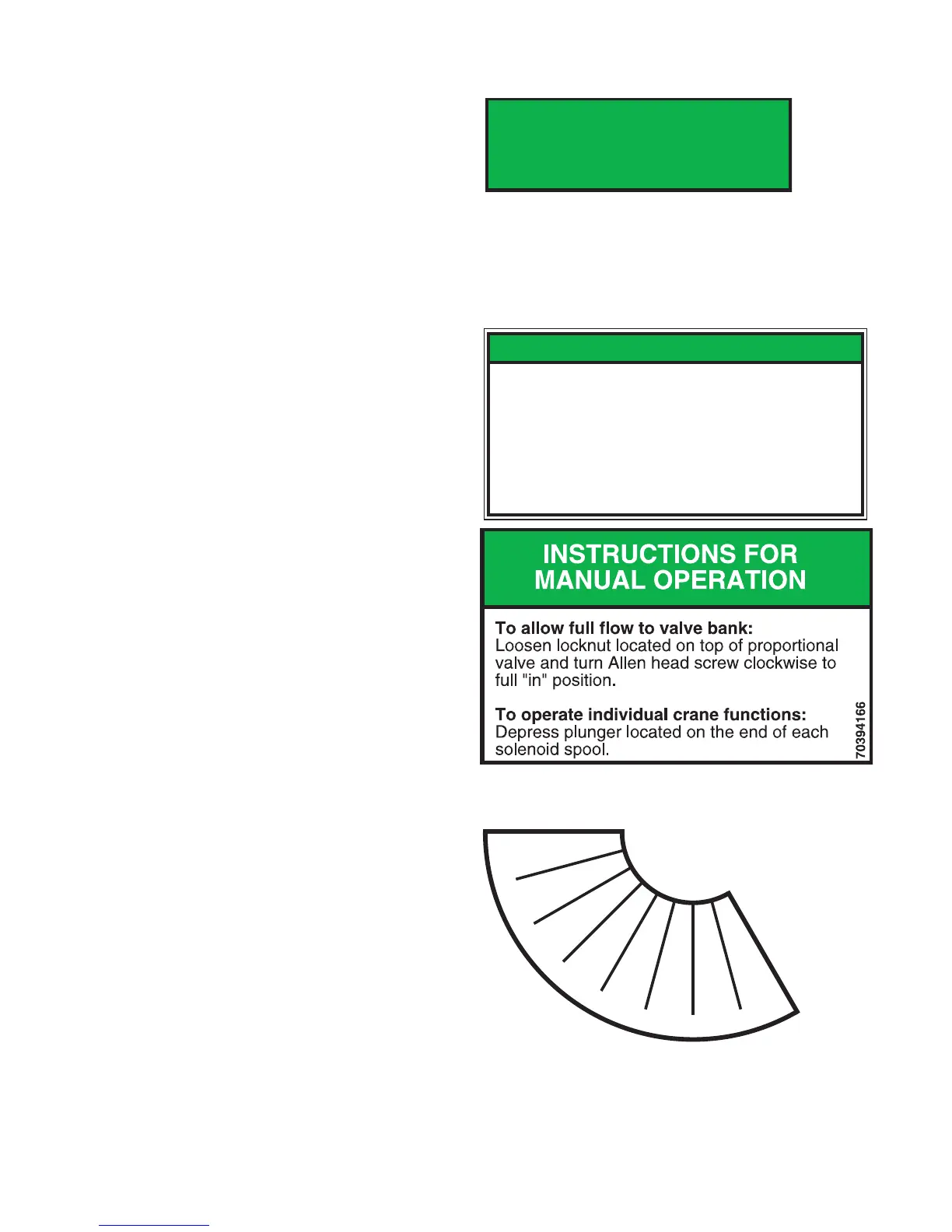

Figure E-23
DECAL: Manual Override
PART NUMBER: 70396631
FUNCTION: To inform operator about location of
manual override instructions.
USED ON: All remote controlled cranes.
PLACEMENT: On outside of valvebank cover.
QUANTITY: 1
Figure E-24
DECAL: Manual Override Instructions
PART NUMBER: Varies based on valvebank.
70396631 on 5525, 6025, 6625.
70394166 on all telescopic cranes except 1015
and 2020, and 5525, 6025, and 6625 after
January 2005.
FUNCTION: To inform operator about location of
manual override instructions.
USED ON: Remote controlled cranes.
PLACEMENT: On inside of valvebank cover.
QUANTITY: 1
Figure E-25
DECAL: Boom Angle Indicator - Left Hand
PART NUMBER: 71391523
DECAL: Boom Angle Indicator - Right Hand
PART NUMBER: 71391522
FUNCTION: To display to the operator the actual
angle of the boom of a telescoping crane.
USED ON: All telescoping cranes.
PLACEMENT: On the left or right side of the lower
boom in alignment with the angle indicator arrow.
QUANTITY: 1 EACH
71391522 RH
0
1
5
3
0
45
6
0
7
5
-1
5
20050125
