Incon 1250-LTC - Programming; Simplified Programming Flowchart

12
Num-
eric
Alpha-numeric
Protocol
Function: Default
Value:
Programmable
Range:
OP 88 PtrSt Resets the “Pass-Through-Neutral”
counter & alarm
rESEt
OP 90 1dCLt Sets the limit for number of consecutive
tap changes in One Direction
2 2 to 30
OP 91 1drLY Selects which relay will assert when the
“One Direction Change” limit is reached
OFF OFF, LO, HI
OP 92 1ddIS Displays the number of days since the
“One Direction Alarm” was asserted
OP 93 1dCLr Clears “One Direction Change” alarm CL
OP 99 tO OP Toggles between Numeric and
Alphanumeric menus
tO OP

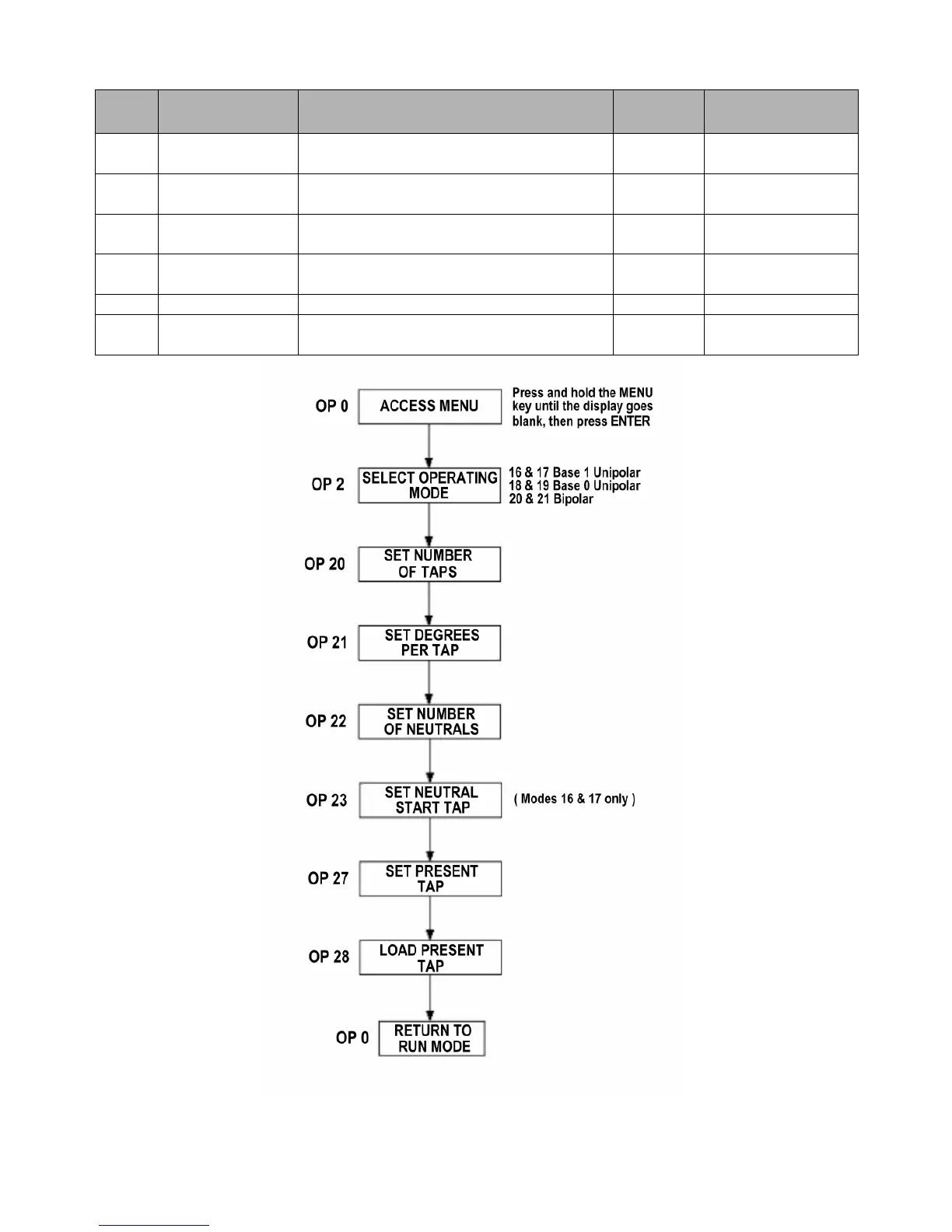

Figure 2.1 Simplified Programming Flowchart
