PPU-S User’s Manual
Page 10 of 20 Copyright 2023 IndeeLift, Inc. All Rights Reserved 08/2023
Seat Lock Release Bar Assembly Instructions
The Lock Release Bar assembly includes: 1 crossbar, 2 lever extensions, 4 round head screws and 2 flathead
screws (Fig A).
To Install the Lock Release Bar: Using a Phillips screwdriver, unscrew the black plastic fittings that are on the
outside of each Release Lever (Fig B) and discard. Fit the appropriate lever extension onto the outside of each
of the Release Levers and attach with two round head screws on each side. The crossbar is then attached to the
left and right lever extensions and secured with a single flathead screw per side. Once fully assembled, tighten
each screw to ensure they are secure (Fig C). See illustration of Seat Lock Release Bar below.

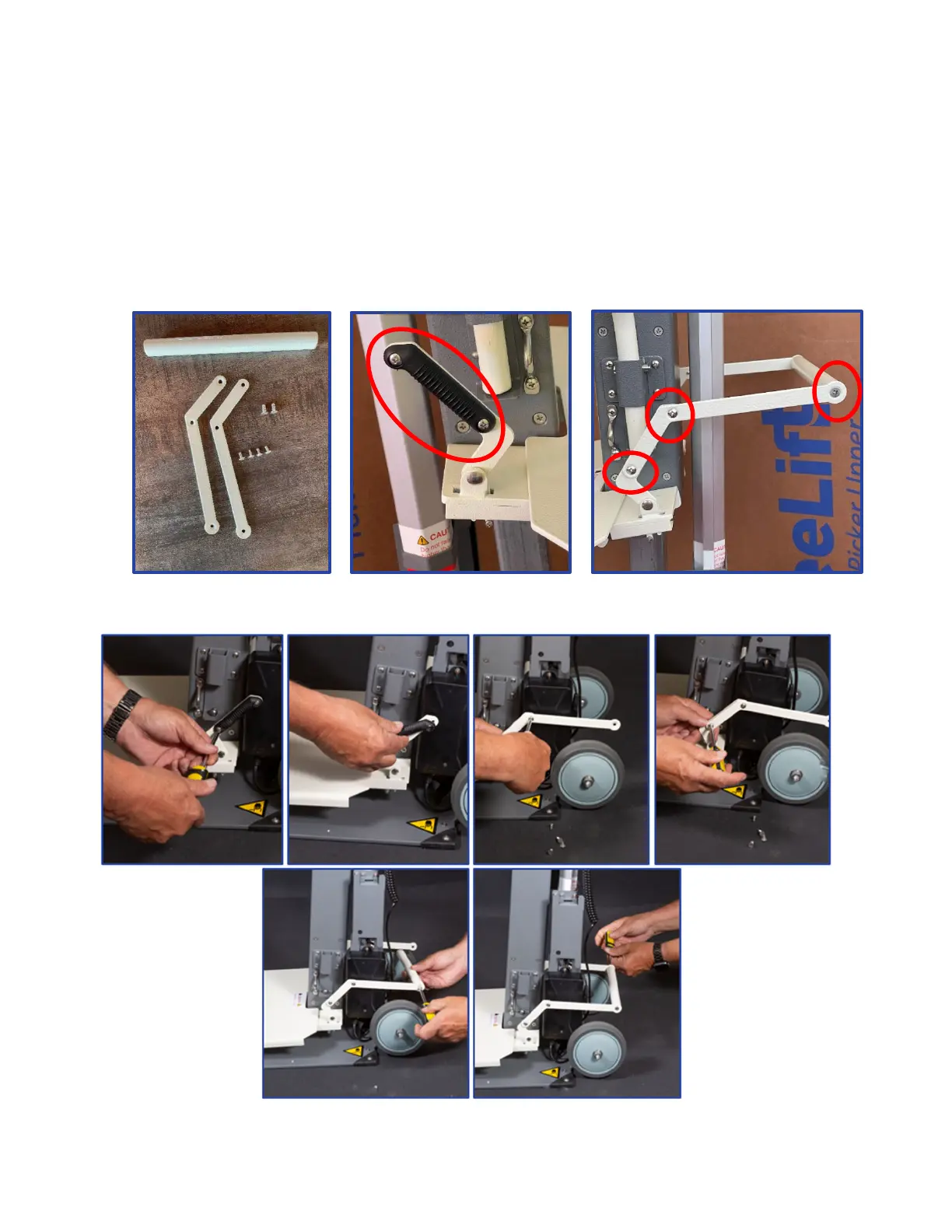

Fig A
Fi
g
B
Fi
g
C
Installation of Seat Lock Release Bar
