INSTALLATION
- Place the refrigerator on a dry, sheltered, at surface and away from any edges. The refrigerator must
not be used unsheltered, in the open air or exposed to splashing or rain.
- Your refrigerator requires good ventilation, especially around the back of the refrigerator, allow a gap
of at least 15 cm around the sides, back and top. Never use your refrigerator in the boot of a car or
against.
- Do not install the refrigerator near heat sources, sunlight.
- To x it inside the car and to avoid damages during transport, we suggest to secure the fridge trough
metal brackets placed on the sides
- Avoid introducing liquids or ice not inserted in containers
- Do not put hot food items into the refrigerator.

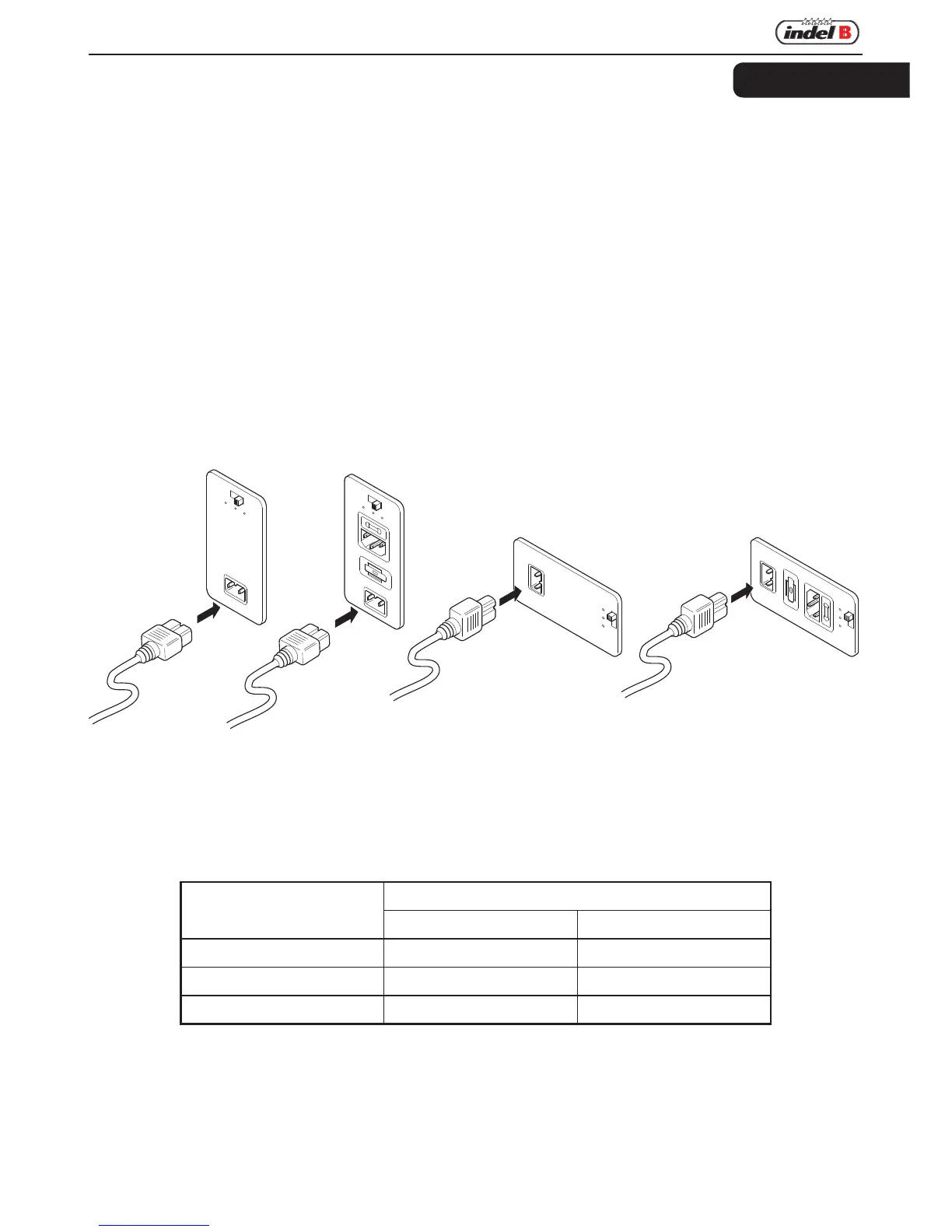

USING THE REFRIGERATOR IN A VEHICLE
- Connect the feeding cable to a direct current 12 or 24 V DC power source.
- Make sure the polarity is right.
- The supply line is protected by a 15 A fuse located on the box.
- If connected to an existing cigarette plug, carefully check up that power supply is suf cient.
- If the supplied power cable is not used, see the table containing the information related to the cable
section:
CABLE AREA
mm
2
(AWG)
MAX CABLE LENGHT METRES (ft)
12V 24V
2,5 (AWG 13) 2,5 (8 FT) 5 (16FT)
4 (AWG 11) 4 (13 FT) 8 (26 FT)
6 (AWG 9) 6 (20 FT) 12 (40 FT)
MED
HIGH
LOW
DC12V/24V
DC12V/24V
MED
HIGH
LOW
15
15
DC12V/24V
DC12V/24V
FUSE
15A
50HZ/60HZ
AC110-120V/220-240V
DC12V/24V
DC12V/24V
LOW HIGH MED
15A
FUSE
DC12V/24V
DC12V/24V
15
LOW HIGH MED
15
50HZ/60HZ
AC110-120V/220-240V
