Indel B TB51-TB51A - Handle Installation (Optional)

REFRIGERAZIONE MOBILE - FRIGOBAR
TB SERIES
18 TB_SERIES_rev. 03-2011
1
2
3
4
4
3
4
4
2
1
5
ENGLISH
HANDLE INSTALLATION (OPTIONAL)
TB31-TB31A-TB41-TB41A-TB51-TB51A
Handle kit

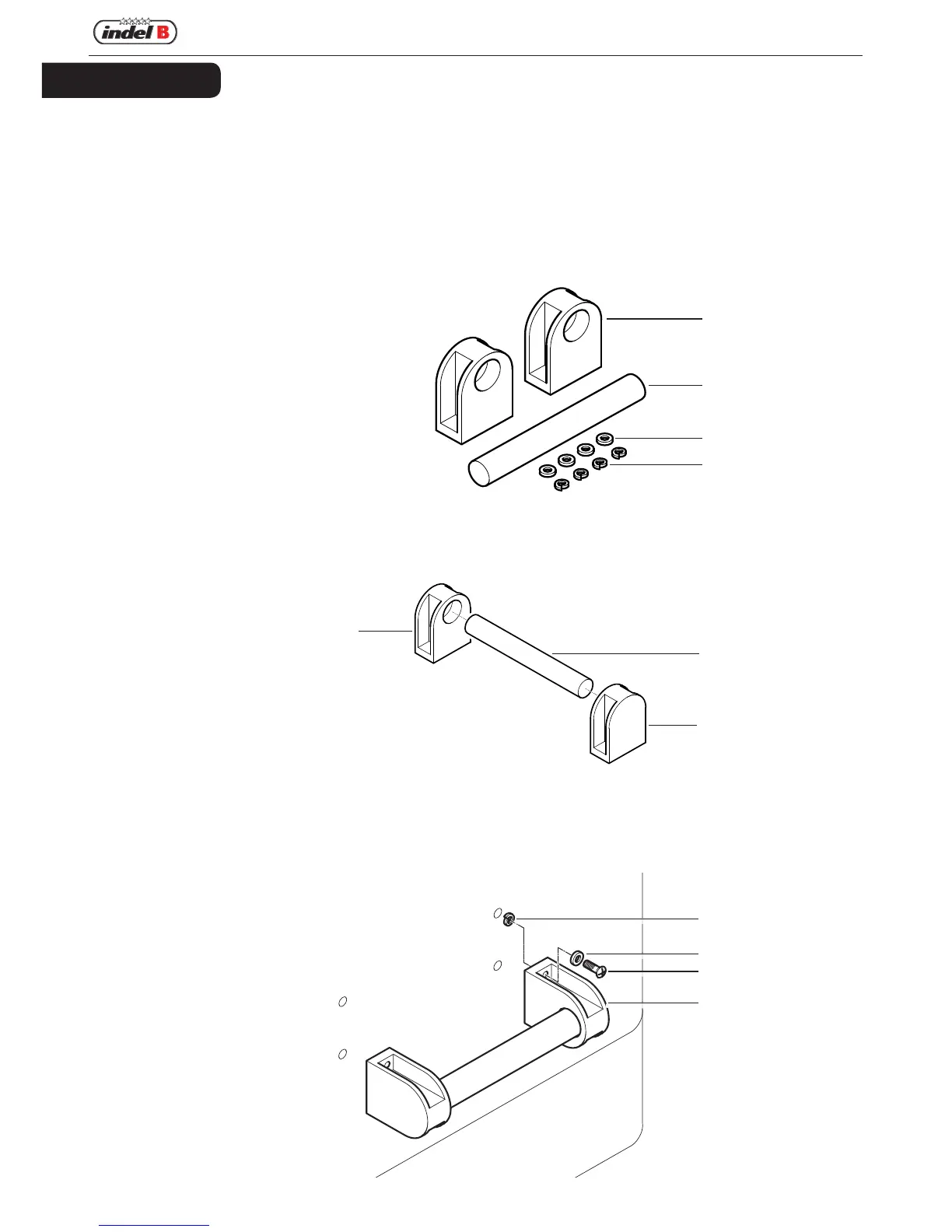

The handle installation kit consists of:
1 - washer No. 4 pcs
2 - split spring washer No. 4 pcs
3 - round tubular component No. 1 pc
4 - stand No. 2 pcs
Kit mounting
mount the stands (4) on the circular component (3)
Handle Installation
Remove the screws (5) from the trunk.
Fit washer (1) to the end of the handle (4).
Insert the screw (5) on the handle (4) and at its end insert the split spring washer (2).
Tighten the screws (5) to the trunk.
