REFRIGERAZIONE MOBILE - FRIGOBAR
TB SERIES
TB_SERIES_rev. 03-2011 9
ITALIANO
1
2
3
4

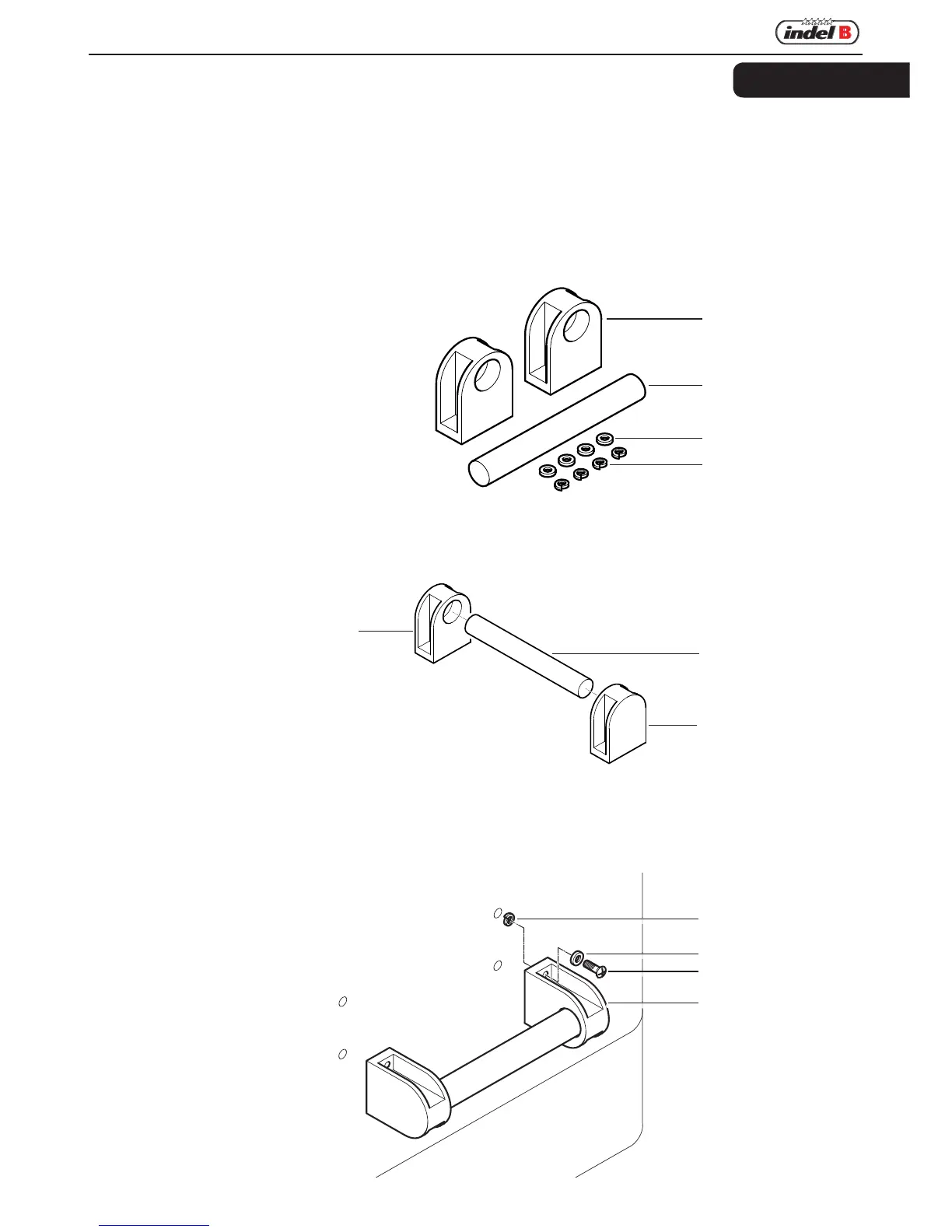

INSTALLAZIONE MANIGLIA (OPTIONAL)
TB31-TB31A-TB41-TB41A-TB51-TB51A
Kit maniglia
Il kit installazione maniglia è composto da:
1 - rosetta n°4 pz
2 - rosetta elastica spaccata n°4 pz
3 - componente tubolare tondo n°1 pz
4 - supporto n°2 pz
Montaggio kit
montare i supporti (4) sul componente circolare (3)
Installazione maniglia
Svitare le viti (5) dal bauletto.
Inserire la rosetta (1) sull'estremita` della maniglia (4).
Inserire la vite (5) sulla maniglia (4) e alla sua estremita` inserire la rosetta elastica spaccata (2).
Avvitare le viti (5 ) al bauletto.
4
3
4
4
2
1
5
