Indesit RI 161 C - Product Description Sheet; Dimensions of the Hob (mm)

7

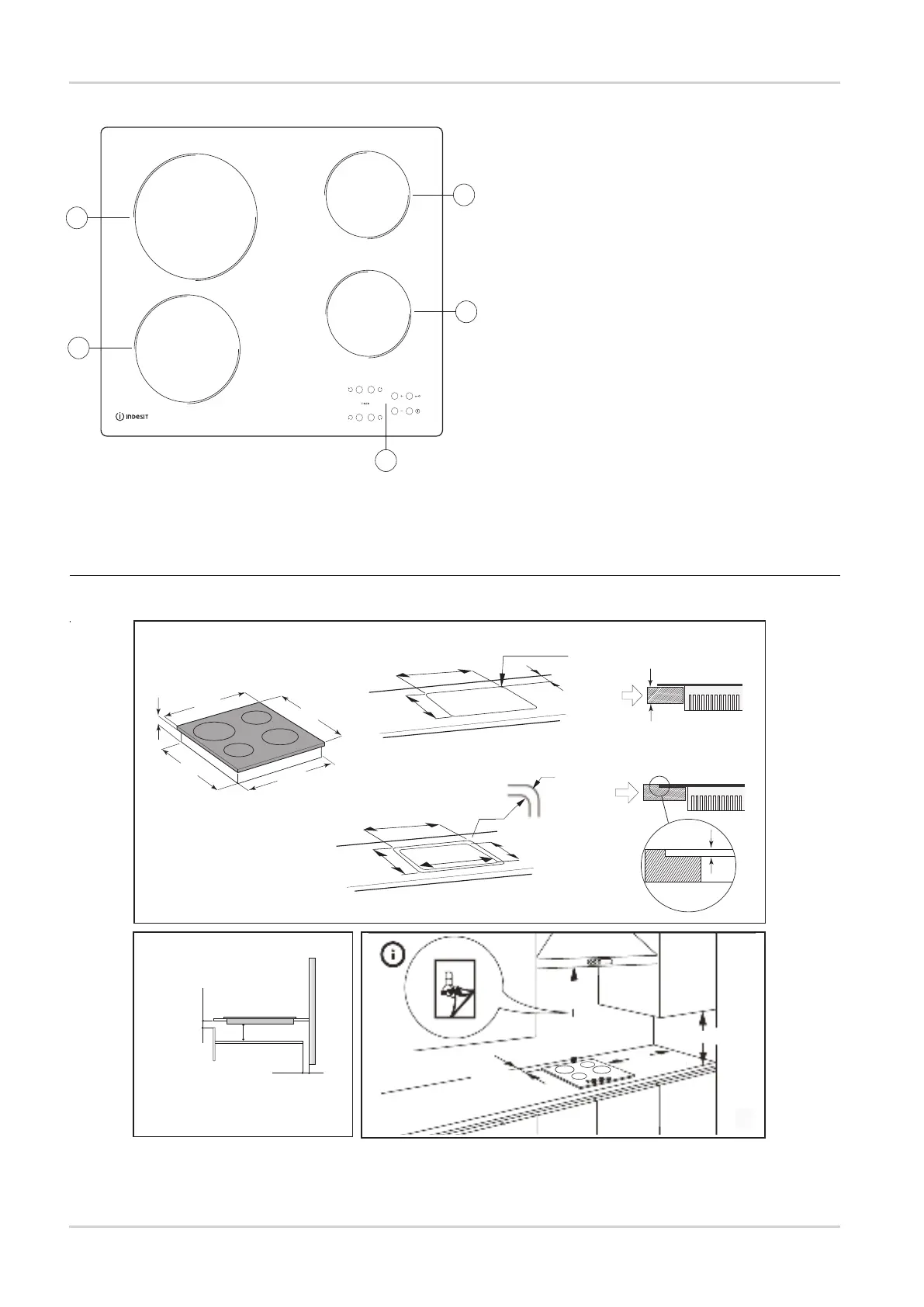

DIMENSIONS OF THE HOB (mm)
1. Radiating cooking zone Ø 145
2. Radiating cooking zone Ø 180
3. Radiating cooking zone Ø 145
4. Radiating cooking zone Ø 210
5. Display
PRODUCT DESCRIPTION SHEET
482 mm
552 mm
42 mm
R = Min. 6,5 mm
Max. 8 mm
490 mm
560 mm
0
+2
0
+2
513 mm
583 mm
0
+2
0
+2
6 mm
560 mm
490 mm
R = 11,5 mm
0
+2
0
+2
Min. 70 mm
Min. 40 cm
Min. 10 cm
Min. 7 cm
min 20 mm
510 mm
580 mm
R = Min. 6,5 mm
min. 5 mm
min. 20 mm
min. 5 mm
3
1
5
2
4
