10 - Inepro Metering - 4PU & 4PS
5.5 RS485 communication specications
Bus type RS485
Protocol MODBUS RTU with 16 bit CRC
Baud rate 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600 and 115200
Address range 1-247 user settable
Maximum bus load 60 meters per bus*
Range 1000m
*Note that the maximum number of meters is dependent on the converter, baudrate (the higher the baudrate, the
smaller the number of meters which can be used) and the circumstances under which the meters are installed.

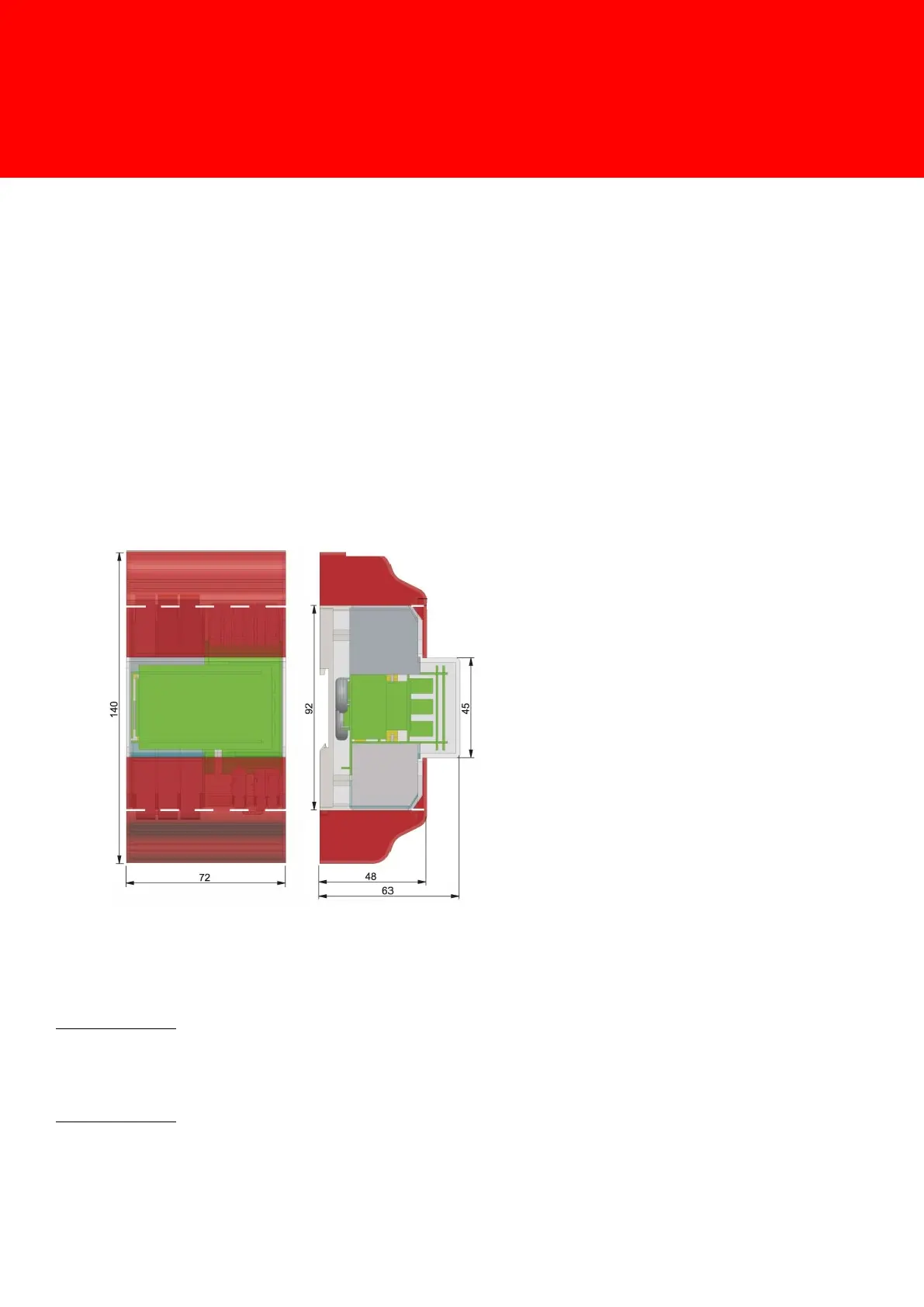

5.6 Dimensions
Height without protection cover 92 mm
Height 140 mm
Width 72 mm
Depth 63 mm
Weight
0,34 Kg (net)
5.7 Wire connection
Connection technology Push-in CAGE CLAMP
®
Actuation type Lever
WAGO serie 2616
Solid conductor 0.75 … 16 mm² / 18 … 4 AWG
Fine-stranded conductor 0.75 … 25 mm² / 18 … 4 AWG
Fine-stranded conductor; with insulated ferrule 0.75 … 16 mm²
WAGO serie 2604
Solid conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule 0.25 … 2.5 mm²
Push-in technology can be used for Solid conductors and ne-stranded conductors with insulated ferrule.
Fine-stranded conductors require opening the levers for connection.
2616
2616 2604
2604
