Setup
Infant Seat
Buckle Height Adjustment
Figure 1
Figure 2
Figure 3
Figure 4

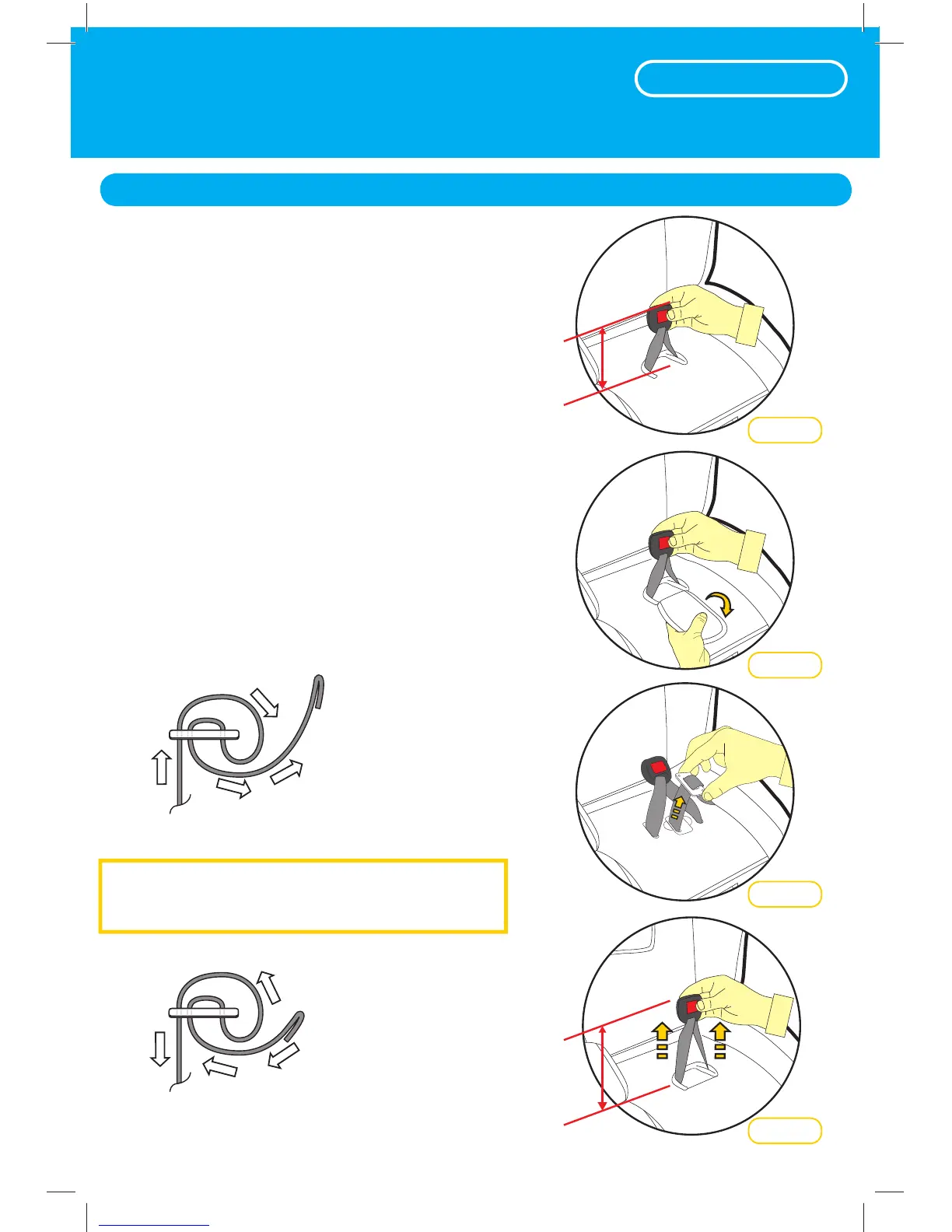

The buckle is supplied in a shortened position, if you
want to alter the buckle height the following steps are
required.
Step 1: Lift the buckle and determine the required buckle
height (refer Figure 1).
Step 2: To alter the buckle height
- Fold the ap forward and expose the
adjustment plate.
Step 3: Lift the adjustment plate
Step 4: Rethread the webbing.
-To shorten the buckle ‘Pull’ excess webbing
through the central plate.
-To lengthen the buckle ‘Push’ excess webbing
through the central 3 bar plate (refer Figure x).
Note: Do not shorten the buckle strap beyond the indicator
mark on the strap.
TO LENGTHEN
TO SHORTEN
Note: When shortening the buckle ensure the
buckle tongues have clearance above the
upper thigh (refer page 22).
Check
Buckle
Height
Check
Buckle
Height
