Infasecure CS9013 - Buckle Height Adjustment

Set Up

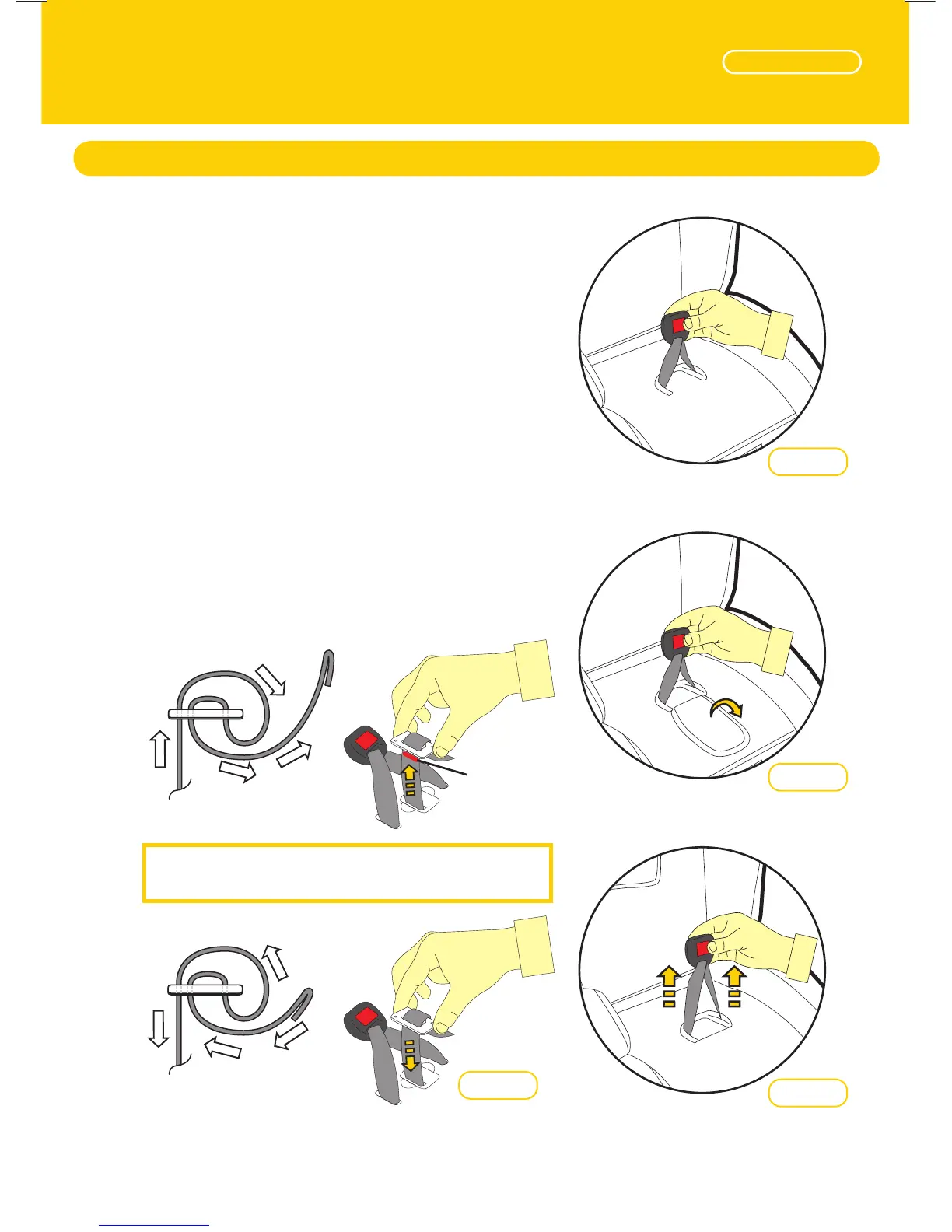

Buckle Height Adjustment
Figure 1
Figure 2
Figure 4
Figure 3
The buckle is supplied in a shortened position, if you
want to alter the buckle height the following steps are
required.
Step 1: Lift the buckle and determine the required buckle
height (refer Figure 1).
Step 2: Fold the buckle ap forward (and foam if applicable)
forward, exposing the central plate (refer Figure 2).
Step 3: Grab the central 3 bar plate and lift up to allow
access to the 3 bar plate (refer Figure 3).
Step 4: Adjust the webbing through the central plate.
-To shorten the buckle ‘Pull’ excess webbing through
the central plate.
-To lengthen the buckle ‘Push’ excess webbing
through the central 3 bar plate (refer Figure 3).
Step 5: Lift the buckle to verify the buckle height
(refer Figure 4).
TO LENGTHEN
TO SHORTEN
Note: Do not shorten the buckle strap beyond
the indicator mark on the strap.
INDICATOR
MARK
SECTION
Child Car Seat
WITH INBUILT HARNESS
13
