Infineon C166 Series User Manual

AP29000
Connecting C166 and C500 Microcontroller to CAN
Examples for the Connection of Infineon Microcontrollers to CAN
Application Note 35 V 1.0, 2004-02

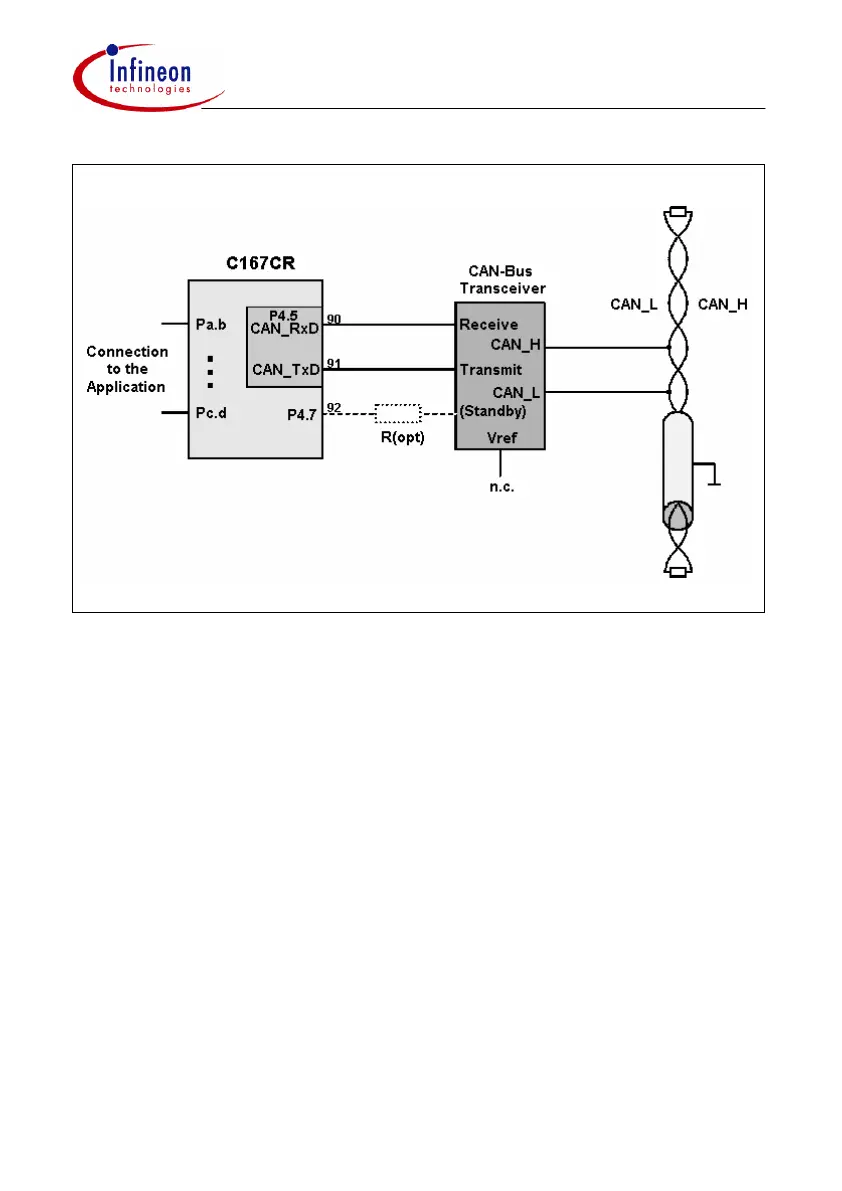

Figure 13 Connection of the C167CR to CAN
Figure 14 shows the connection between the C515C and the CAN bus. This time the
CAN module is connected to the CAN transceiver via the port pins "RXDC" and
"TXDC" of port 4. For the control of a slope control or "stand-by" pin, portpin P4.5 was
chosen in this example.
