Infineon XENSIV DEMO SENSE2GOL Setup Guide

21 of 31
2019-12-02
Using Infineon’s radar baseboard XMC4700 and BGT24LTR11 radar
shield with Arduino
Set-up guide
Software set-up

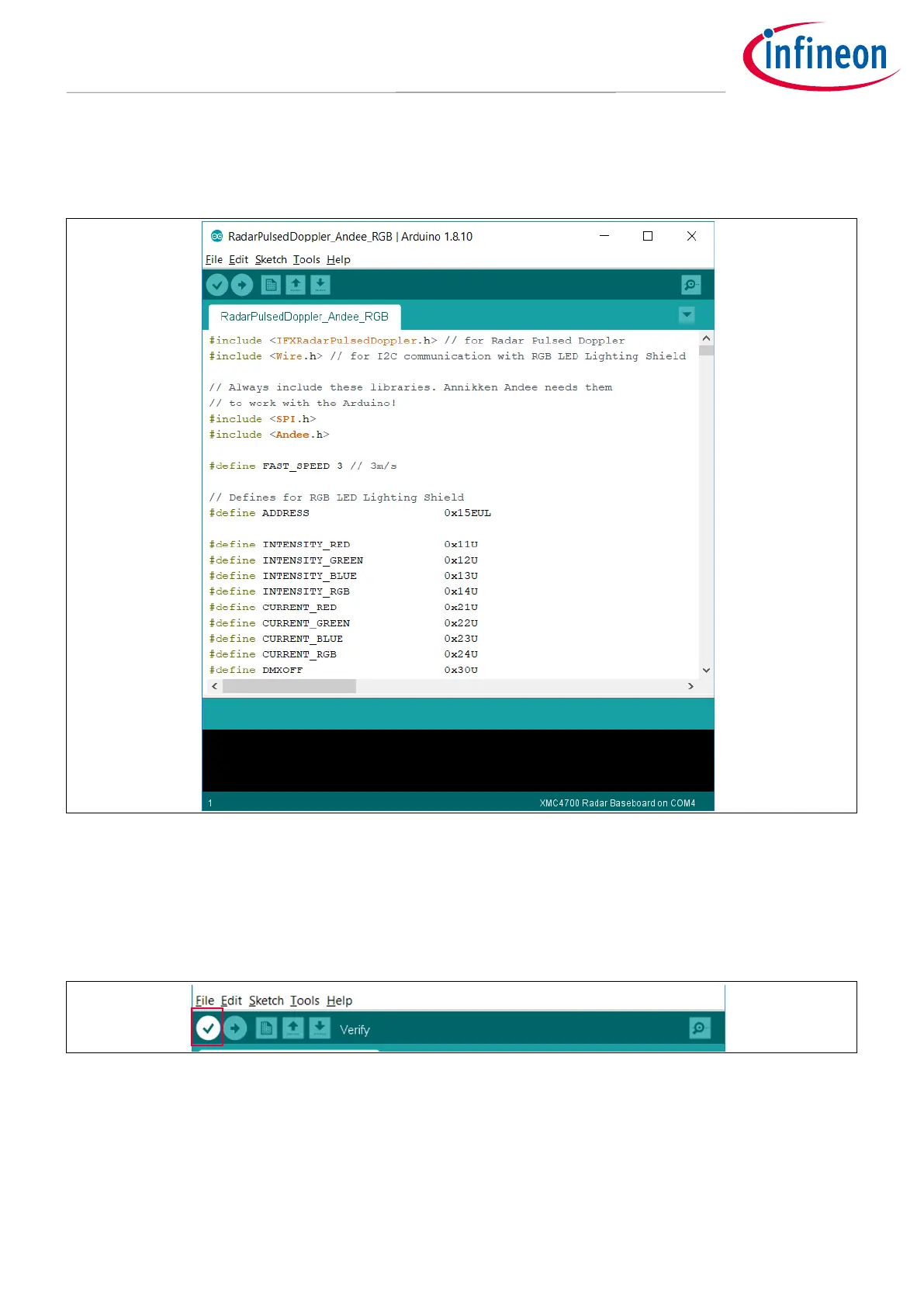

1. In Arduino IDE, navigate to File > Examples > IFXRadarPulsedDoppler > RadarPulsedDoppler_Andee_RGB. The
sketch will open (Figure 24).
Figure 24 Example sketch: RadarPulsedDopplerLED_Andee_RGB
2. Navigate to Tools > Board > XMC4700 Radar Baseboard (as shown previously in Figure 10) to select the radar
baseboard as the target kit.
3. Compile the sketch by clicking the “Verify” button (Figure 25). A success message will be displayed on
compilation completion (Figure 26).
Figure 25 Compiling the sketch
