13
English

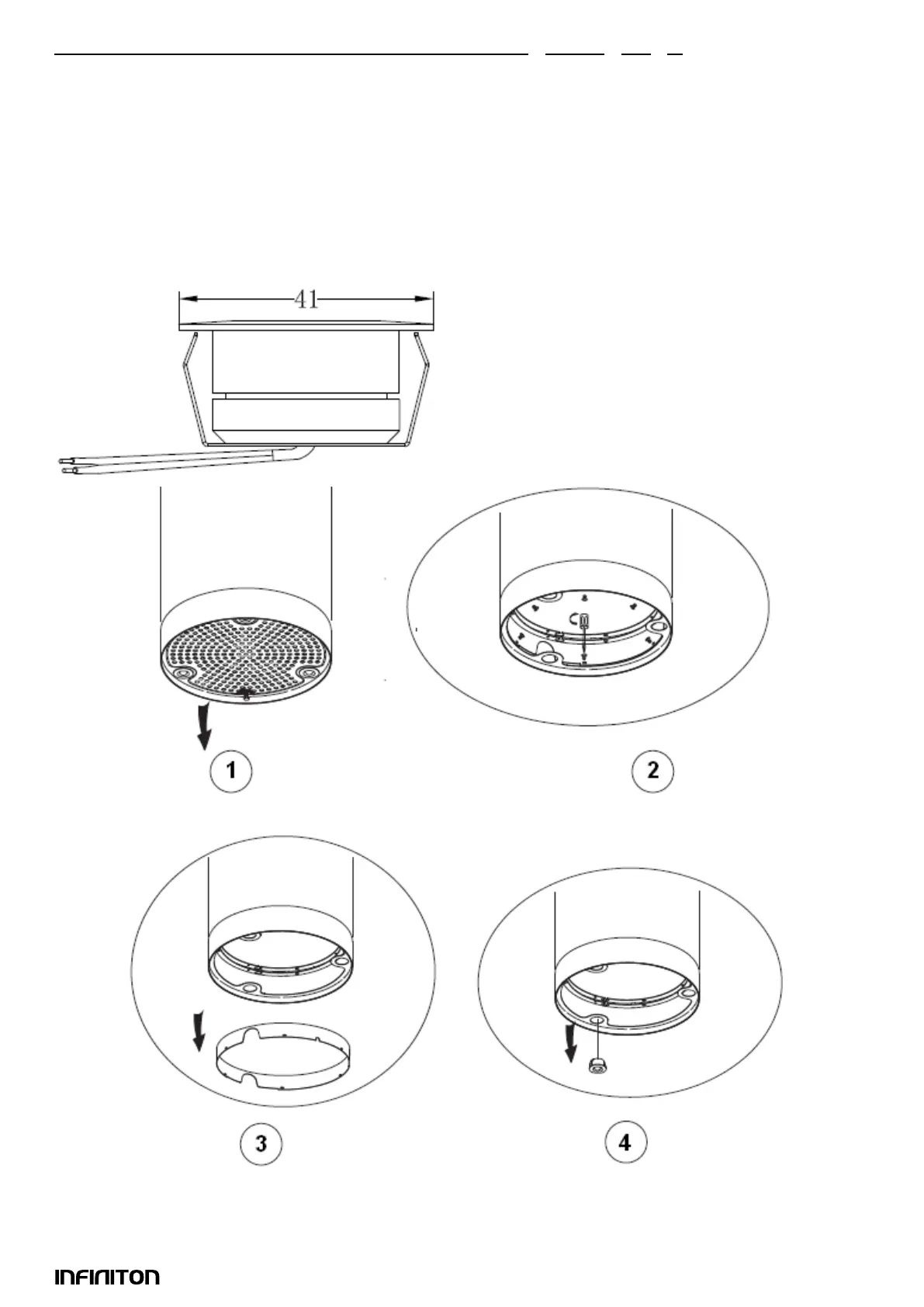

1. Carefully unscrew the oil mesh screw counterclockwise by your hand and take down the oil mesh.
2. Use a screwdriver to remove the 6 screws on the lamp bafe and remove the lamp bafe. Take down
the light and replace it.
• ILCOS D code for this lamp is: DSR-1-S-41
– LED modules– round LED lamp
– Max wattage: 3×1 W
– Voltage range: DC 12V
– Dimensions:
Maintenance and cleaning
inniton.es
