IL50s
38

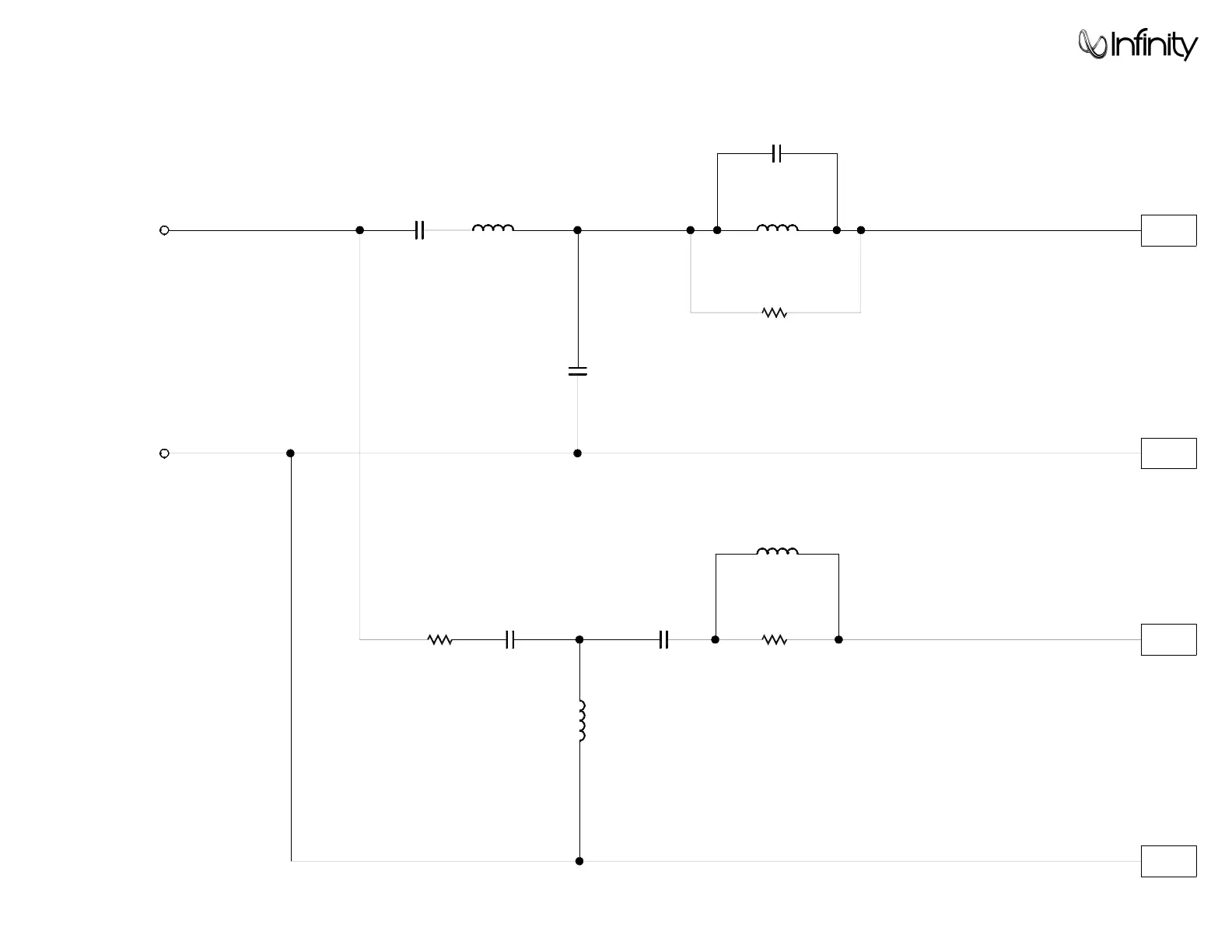

Crossover Network Schematic
C3
128uF
100V
L2
0.30mH
R1
10ohm
10w
L1
1.8mH
C2
10uF
100V
WHT
WHT/BLK
L4
0.075mH
R2
1.80ohm
10w
YEL
250
C5
20uF
100V
YEL/BLK
L3
0.22mH
C4
2.4uF
100V
R3
0.5ohm
10w
+INPUT
-INPUT
C1
470uF
100V
00323
MID
HF
205
187
110
+
-
+
-
41
