TSS-1100

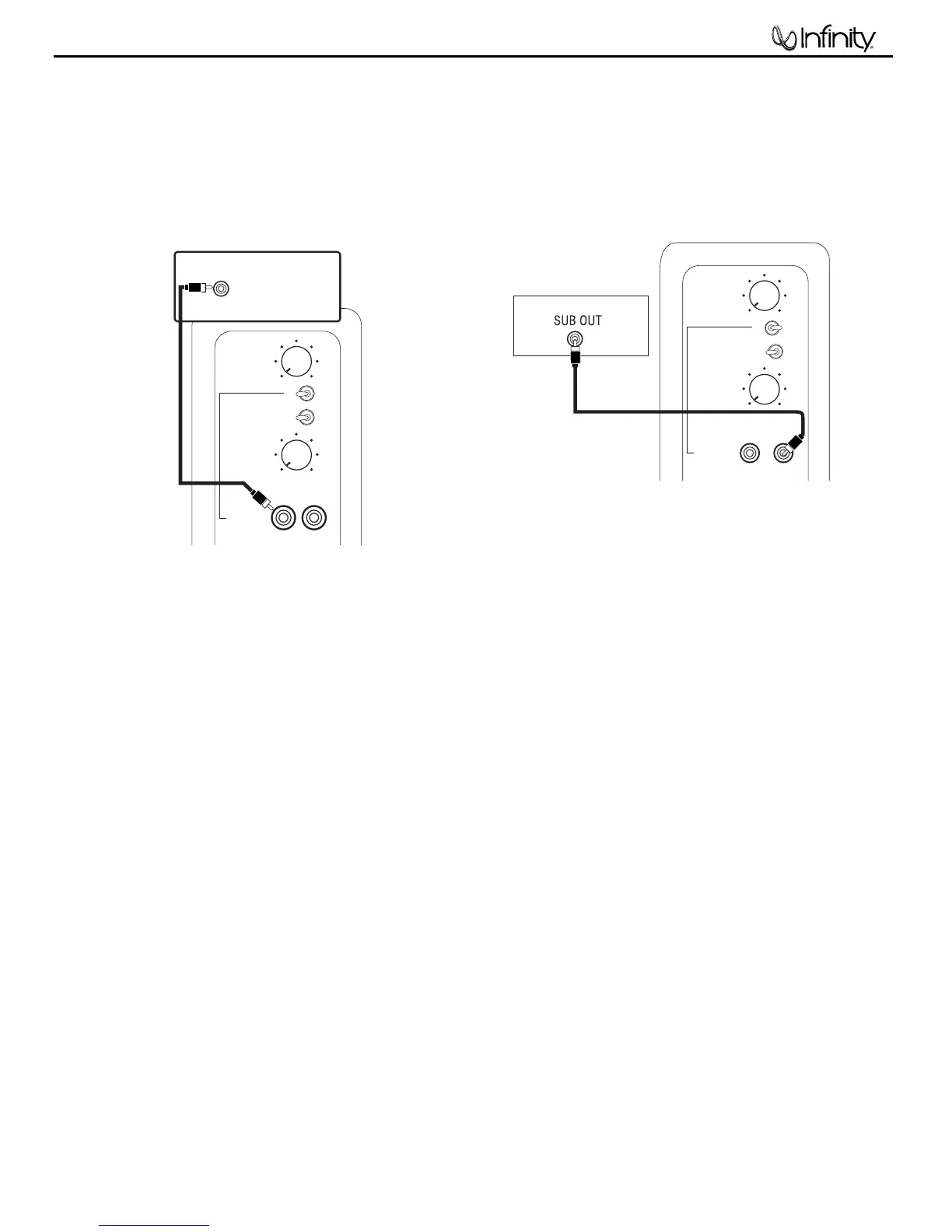

SUBWOOFER CONNECTIONS
If your receiver/processor does not contain
a Dolby Digital or DTS processor but has a
subwoofer output:
Set line-level/LFE switch to “Normal.”
NOTE:If your receiver/processor has only one sub out,
you may use either the L or R input.
If you have a Dolby* Digital or DTS
®
receiver/
processor with a low-frequency-effects (LFE)
or subwoofer output:
CROSSOVER
FREQUENCY
LEVEL
LINE LEVEL IN
PHASE
Min
Max
L R
For LFE use L or R
LFE NORMAL
50Hz
0º 180º
150Hz
SUBWOOFER OR
LFE OUTPUT
80Hz
Set line-level/LFE switch to “LFE.”
CROSSOVER
FREQUENCY
LEVEL
LINE LEVEL IN
PHASE
Min
Max
L R
For LFE use L or R
LFE NORMAL
50Hz
0º 180º
150Hz
RECEIVER/PROCESSOR
80Hz
15'
subwoofer
cable
included
15' subwoofer
cable included
