SERVICE NOTE

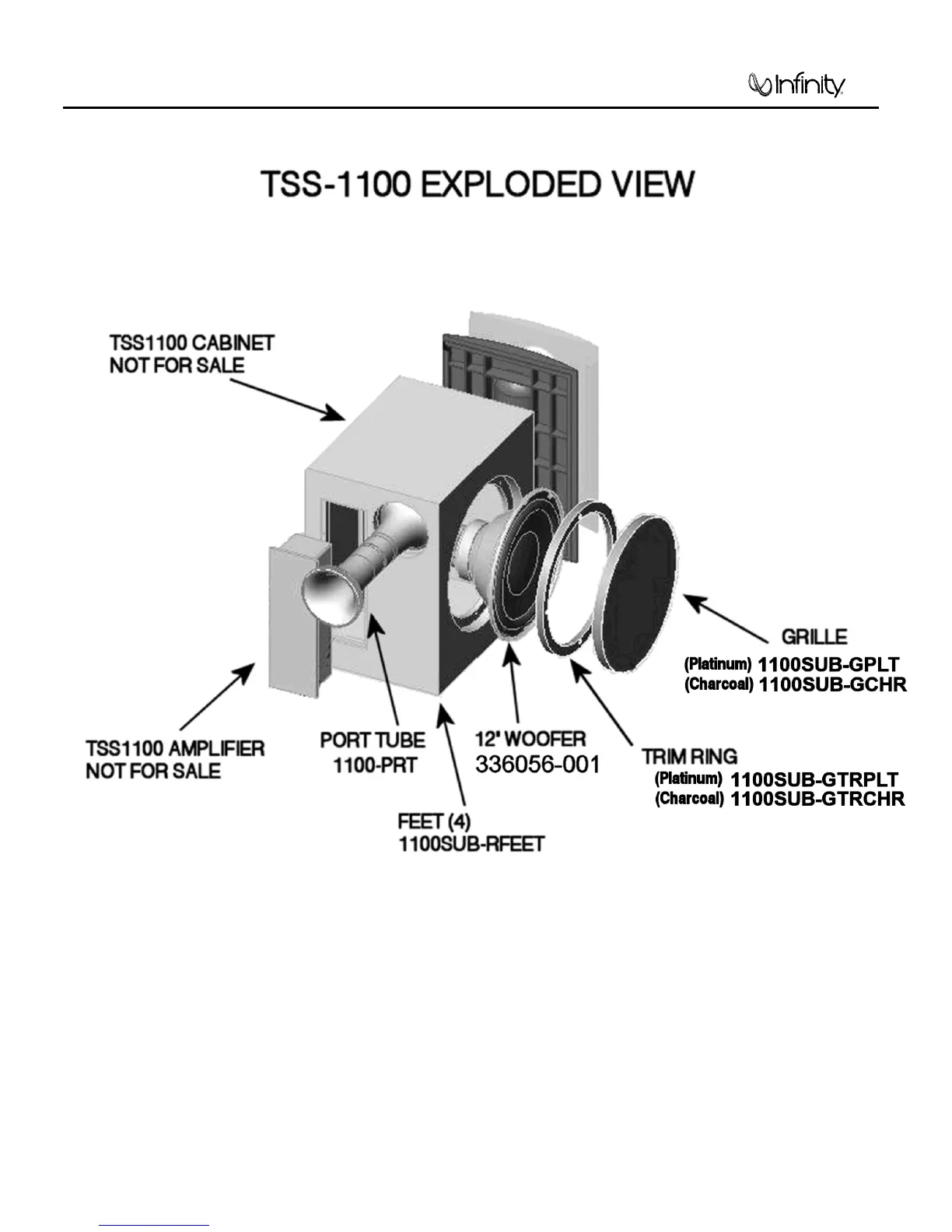

Access to woofer:
1) Carefully pry metal grille out of its recess with a sharp pointed
instrument such as an awl or dental pick – USE CAUTION and
protect the surface of the subwoofer from scratches or dents from
the work tool. Work evenly around the perimeter until the grill w/
gasket can be removed.
2) Remove the (6) Phillips screws holding the trim ring to the cabinet.
3) Remove the (6) Phillips screws holding the woofer to the cabinet.
REPLACEMENT: Assure when the woofer is replaced, it is exactly centered
in the counterbore.
7
TSS-1100
