Copyright ©2018, Infoblox, Inc.All right reserved.
1.
2.

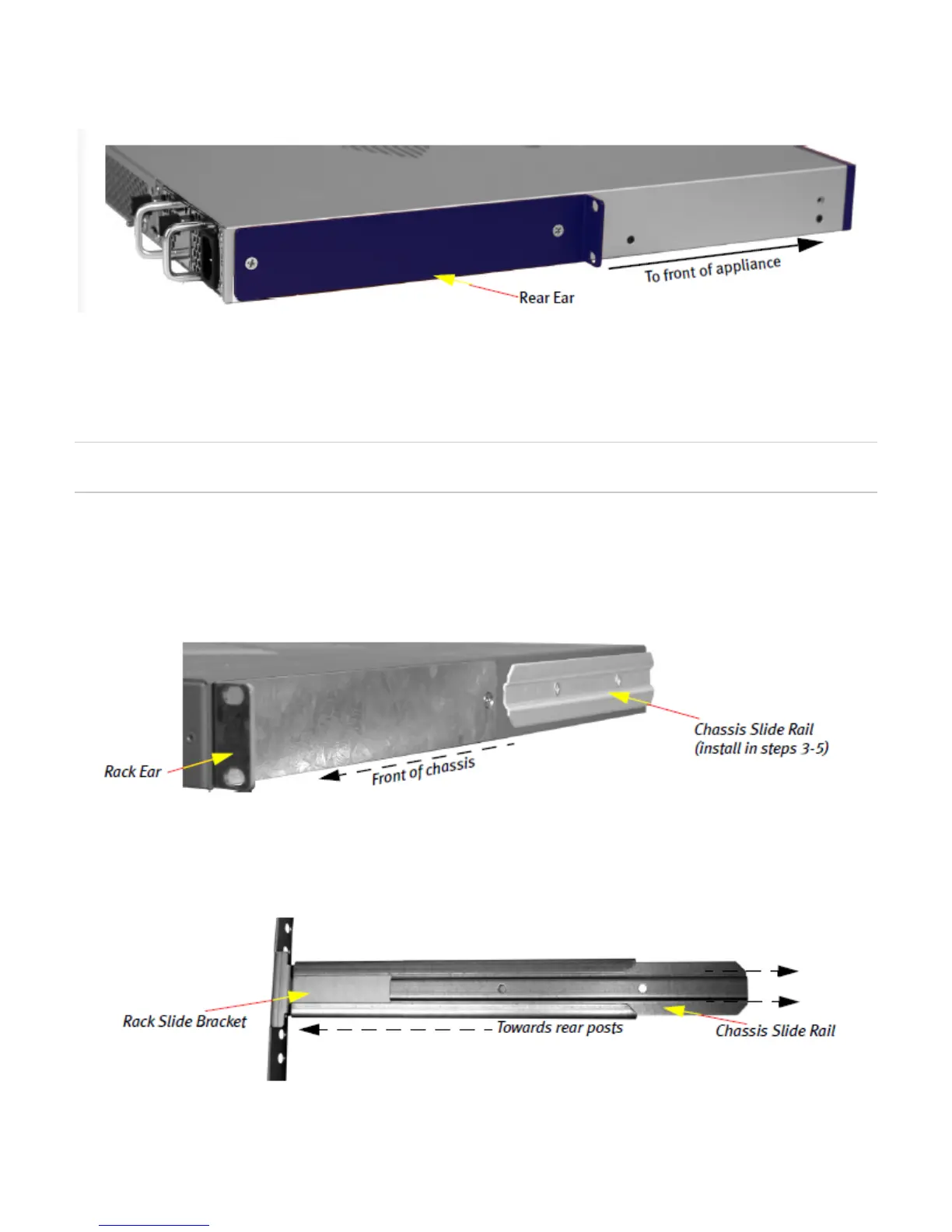

Figure 6 Rack Ears Placement for Two-Post Rack Mounting
3. With one person on each side, lift the appliance and position it in the equipment rack.
4. Attach each rack ear to the equipment rack with two (2) 10-32 screws on each side.
Four-Post Rack Mounting
:Caution The 600mm chassis rack rails kit provided with the Infoblox 1405 Series appliance provides only a limited range of travel. It does not
extend across the entire depth of the equipment rack. Exercise caution when withdrawing the appliance from its position in the equipment rack.
For a four-post rack mount, you combine the bundled pair of rack ears with a pair of chassis rack rails providing up to 600mm depth in a four-post
rack. The chassis rack rail assembly is bundled with the appliance at time of purchase. This kit also is provided as a field-replaceable unit; see Re
in this Guide for information.placeable Unit and SFP Part Numbers
Align the mounting holes on the rack ears with the front-most mounting holes on each side of the chassis.
Attach a rack ear to each side of the chassis with two (2) 8-32 screws, as shown in .Figure 7
Figure 7 Rack Ears and Chassis Slide Rails in Four-Post Rack Mount
3. Slide the inner chassis slide rails out of the rack slide brackets, as shown in .Figure 8
Figure 8 Chassis Slide Rail and Rack Slide Bracket
4. Align the mounting holes on the chassis slide rails with the rear-most mounting holes on each side of the chassis. Ensure that you place
the chassis slide rails in the correct orientation. Otherwise, the mounting holes do not align correctly.
5. Attach the chassis slide rails to each side of the chassis with two (2) 8-32 screws, as shown in .Figure 7
