1.
2.
3.
Extend the rack rail assembly backwards, align the mounting holes on the chassis slide rails with the required cage nuts, and fasten the
back end of the rack rail to the two cage nuts on the rear post of the designated space. As noted, the rack rail assembly has an extension
range from the minimum of 600mm to a maximum of 900mm.
Perform Steps 2 and 3 for the second rack rail assembly.

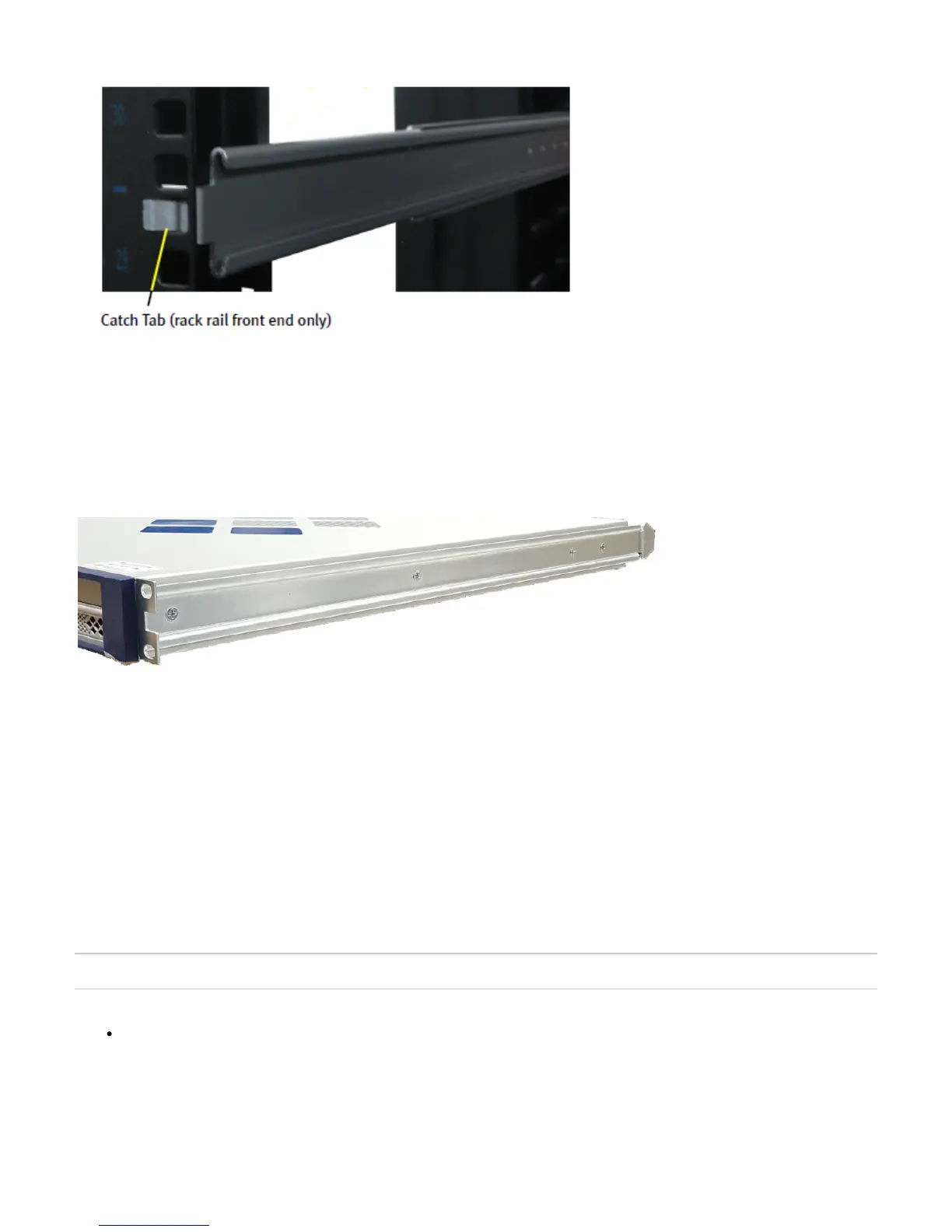

Attach the chassis slide rails to each side of the chassis with four (4) flathead 8-32 screws, as shown in . Figure 11
Figure 11 Chassis slide rails Installation
6. Lift the appliance and position it in front of the equipment rack.
7. Align the chassis slide rails on the appliance with the rack slide brackets on the posts of the equipment rack.
8. Slide the appliance into the rack slide brackets.
9. Secure the rack ears to the rack with four (4) 10-32 screws on each side of the rack.
Powering the Appliance
The TE-1415, TE-1425, PT-1405 and ND-1405 appliances ship with one (1) AC power supply module or one DC power supply module. You can
order an additional power supply to set up a redundant hot-swappable 1+1 configuration. In the 1+1 configuration, Infoblox recommends using the
power cables that ship with the appliances to connect each power supply to separate power circuits. In the event of a power failure on one circuit,
the appliances can then operate on the other circuit.
The Trinzic Reporting TR-1405 appliance provides a default 1+1 redundant power supply configuration.
Note: If your appliance comes with one power supply and an empty module, the single power supply must reside in the PSU #1 slot.
To power the appliance:
Connect a power cable between the power connector on the back of the appliance and a properly grounded and rated power circuit that
meets the provisions of the current edition of the National Electrical Code, or other wiring rules that apply to your location. Make sure that
the outlet is near the appliance and is accessible.
Cabling the Appliance to a Network
