in this Guide for information. The chassis rack rail kit is designed to allow one person to perform theplaceable Unit and SFP Part Numbers
physical installation of the rack rail kit and the appliance.
Align the mounting holes on the rack ears with the front-most mounting holes on each side of the chassis.
Attach the rack ears to each side of the chassis with two (2) 8-32 screws, as shown in . Figure 6

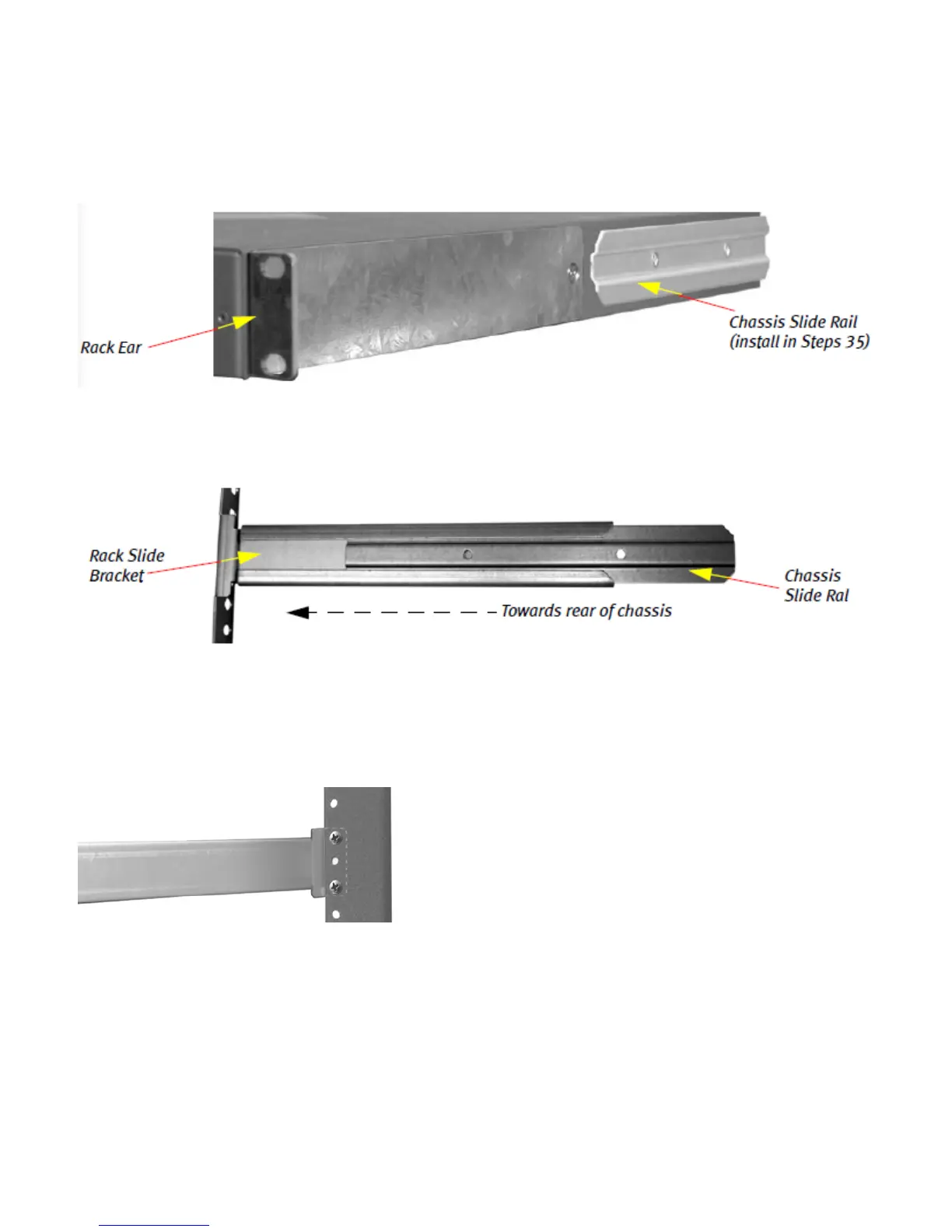

Figure 6 Rack Ears and Chassis Slide Rails in Four-Post Rack Mount
3. Slide the inner chassis slide rails out of the rack slide brackets, as shown in .Figure 7
Figure 7 Chassis Slide Rail and Rack Slide Bracket
4. Align the mounting holes on the chassis slide rails with the rear-most mounting holes on each side of the chassis, as shown in . Figure 6
Ensure that you place the chassis slide rails in the correct orientation. Otherwise, the mounting holes do not align correctly.
5. Attach the chassis slide rails to each side of the chassis with two (2) 8-32 screws, as shown in .Figure 6
6. Select a desired location and secure the rack slide brackets to the rear posts of the equipment rack with two (2) 10-32 screws on each
side of the rack, as shown in Figure 8.
Figure 8 Rack Slide Bracket Attached to the Rear Post of the Rack
7. With one person on each side, lift the appliance and position it in front of the equipment rack.
8. Align the chassis slide rails on the appliance with the rack slide brackets on the posts of the equipment rack.
9. Slide the appliance into the rack slide brackets.
10. Secure the rack ears to the front rack posts with two (2) 10-32 screws on each side of the rack.
Adjustable Rail Four-Post Rack Mount
Infoblox provides an adjustable four-post rail kit with 600mm to 900mm depth adjustment, designed to allow one person to perform physical
installation of the rack kit and the appliance. This kit is provided as a field-replaceable unit; for information, see the section Field Replaceable
at the end of this chapter. The adjustable rail kit is designed to allow one person to perform the physical installation of the rail kit and theUnits
To Next Page
