InFocus IN114v User Manual

9
English
Introduction

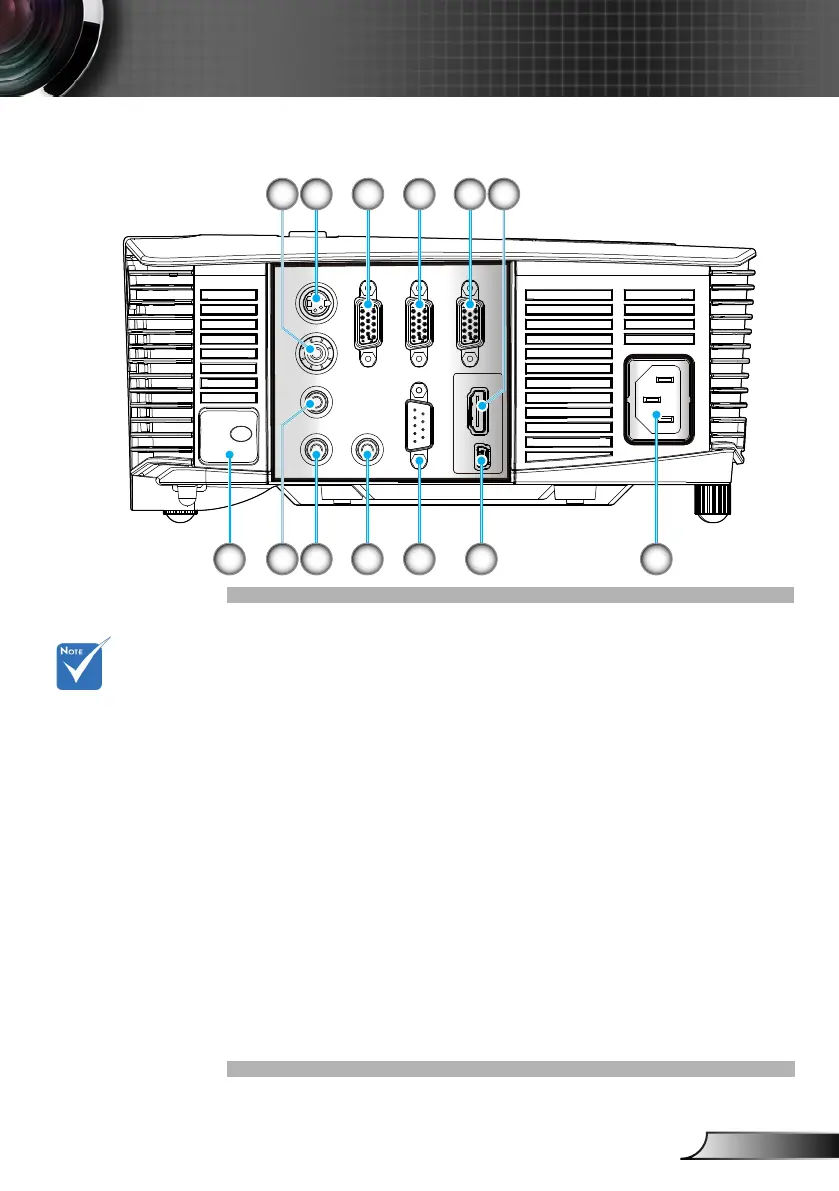

Input/Output Connections
Composite Video Input Connector1.
S-Video Input Connector2.
VGA-Out Connector (Monitor Loop-through Output)3.
VGA2-IN/YPbPr Connector 4.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
VGA1-IN/YPbPr Connector 5.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
HDMI Connector6.
Security Lock Slot7.
Audio2 Input 8. Connector (3.5mm mini jack)
Audio Output Connector ( 3.5mm mini jack)9.
Audio1 Input Connector (3.5mm mini jack)10.
RS-232 Connector (9-pin)11.
USB Connector (Connect to PC for Remote Mouse func-12.
tion/USB Service for rmware upgrade)
Power Socket13.
Monitor loop 
through only sup-
port in VGA2-IN/
YPbPr.
The interface is 
subject to model’s
specications.
USB
VGA1-IN/YPbPr
VIDEO
VGA-OUT
VGA2-IN/YPbPr
HDMI
AUDIO1-IN
AUDIO-OUT
AUDIO2-IN
S-VIDEO
RS-232C
7 9 10 11 12 138
2 3 4 51 6

InFocus IN114v Specifications

General

Noise Level	32 decibels
White Brightness	3500 lumens
Native Resolution	1024 x 768
Contrast Ratio	17000:1
Aspect Ratio	4:3
Throw Ratio Range	1.95 - 2.15:1
3D	yes
Maximum Screen Size	299 inches
Focus Adjustment	manual
Minimum Distance	3.3 feet
Maximum Distance	39 feet
Video Input	vga, hdmi, s-video, composite video
Inputs	mini-usb, hdmi, vga, s-video, composite video, rca, 3.5mm audio
Sound Mode	mono
Built In Speakers	yes
Speakers Output	2 watts
Remote Control	yes
OS Compatibility	none

Weight and Dimensions

Depth	8.8 inches
Height	3.5 inches
Width	12.4 inches
Net Weight	5.1 pounds
