Page 9INF6521 Hardware Guide
Attaching the speakers
The speakers can be installed as desired around the perimeter of the monitor using the supplied brackets, however
InFocus recommends installing the speakers across the bottom of the monitor. NOTE: If you are not attaching the
speakers, proceed to the next section, "Attaching the HD video conferencing camera" on page 10.
1) Carefully place your monitor face-down on a clean, cushioned surface. Do NOT place the monitor on its back.

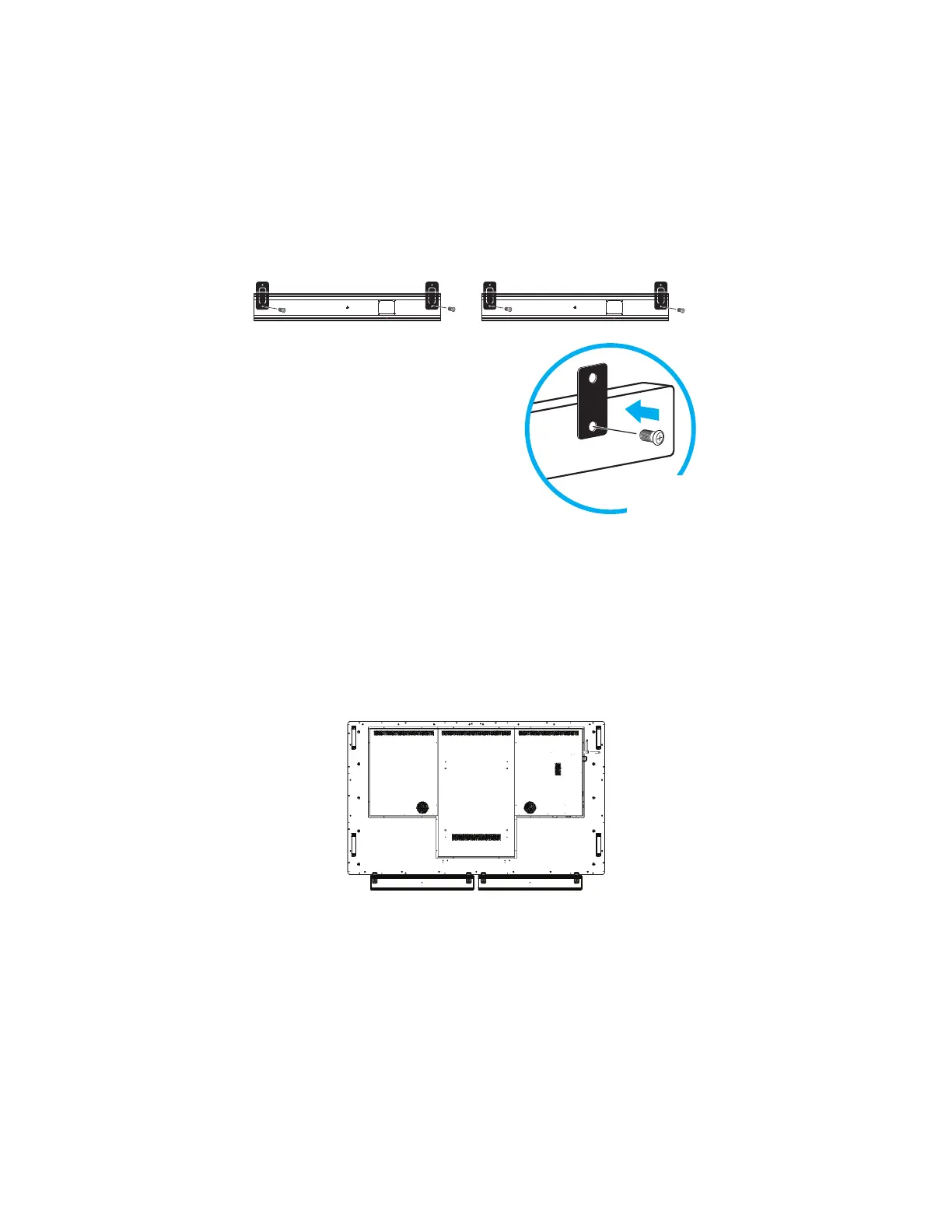

2) Attach the four small rectangular brackets to the speakers with the provided screws as shown below.
4x
3) Align the rectangular brackets with the screw holes on the monitor and using the provided screws, secure the
speakers against the bottom of the monitor. NOTE: The bottom edge has multiple screw hole positions allowing
for different placement options.
