InFocus LP130 Software Installation

To install the USB Drivers for Windows XP
1. Turn on the computer on.
2. Plug the projector into the computer
. Make sure the USB cable is plugged into a USB connector on the computer.
3. Turn the projector on.

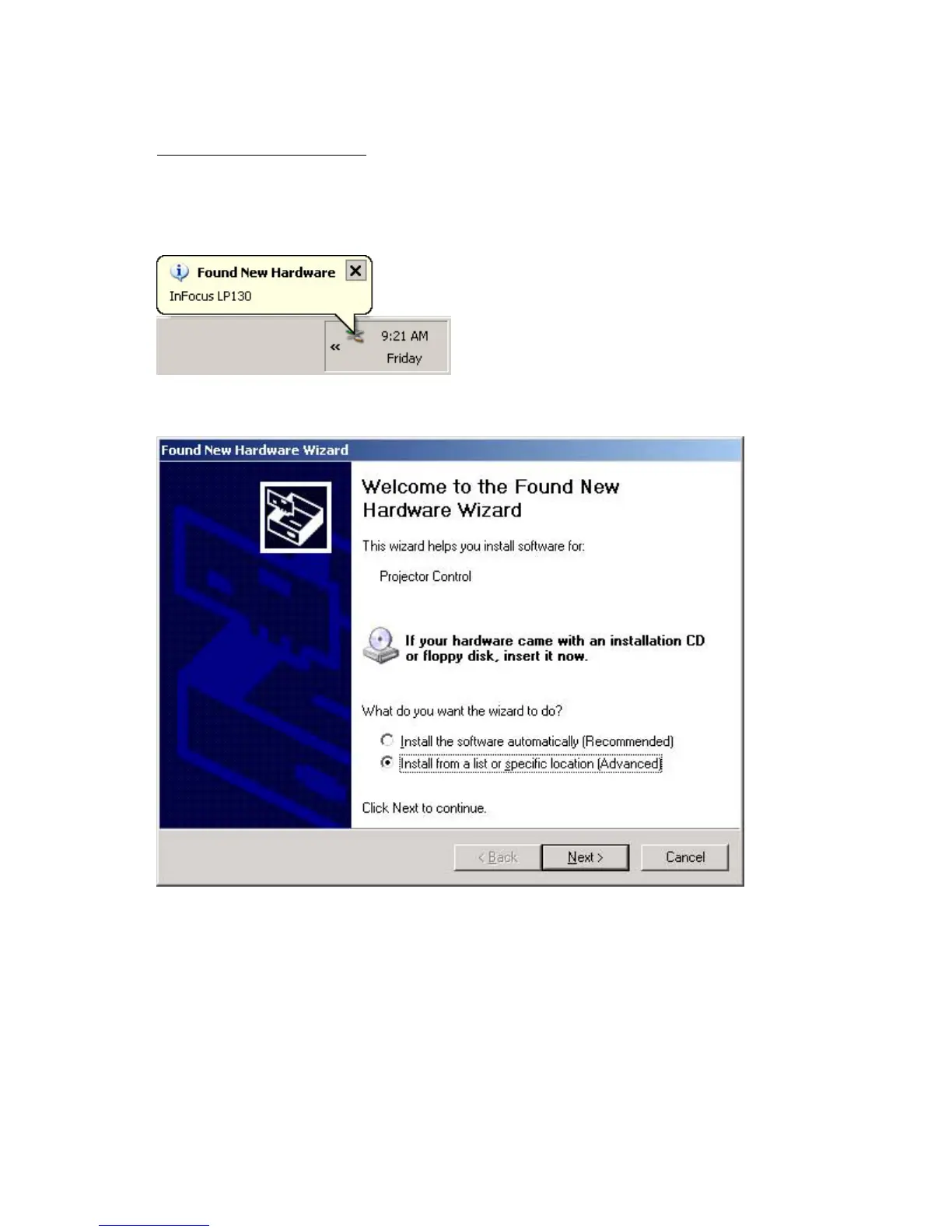

When you turn the projector on, a message appears adjacent to the Windows Task bar, telling you that Windows has
detected new hardware.
The Found New Hardware Wizard automatically appears.
4. In the Found New Hardware Wizard, select Install From a List or Specific Location (Advanced). Do not insert the
computer's Installation CD. Then click Next.

InFocus LP130 Specifications

Projection Distances and Image Sizes

projection distance 5 feet	1.52 m
min image size at 5 feet	0.90 m
max image size at 5 feet	1.10 m
projection distance 8 feet	2.44 m
min image size at 8 feet	1.44 m
max image size at 8 feet	1.76 m
projection distance 12 feet	3.66 m
min image size at 12 feet	2.16 m
max image size at 12 feet	2.63 m
projection distance 16 feet	4.88 m
min image size at 16 feet	2.88 m
max image size at 16 feet	3.51 m
projection distance 20 feet	6.10 m
min image size at 20 feet	3.60 m
max image size at 20 feet	4.39 m
projection distance 30 feet	9.14 m
min image size at 30 feet	5.39 m
max image size at 30 feet	6.58 m

Display and Image

display technology	DLP from Texas Instruments
native resolution	1024 x 768
brightness	1100 ANSI lumens
contrast ratio	400:1 full on full off
aspect ratio	4:3
displayable color palette	16.7 million colors

Lens and Projection

projection lens zoom ratio	1.22:1
projection ratio wide	0.72:1
projection ratio narrow	0.59:1
projection offset	111.3% typical
digital keystone correction	+/- 20˚

Power and Consumption

light source	120 Watt UHP+
lamp life	2000 hours
power supply	100-120V, 200-240V at 50Hz-60 Hz
power consumption	150 Watts

Weight and Dimensions

dimensions	6.68" x 8.63" x 2.0" (170mm x 219mm x 51mm)
weight	3 lbs (1.36 kg)
operational noise	37dB
