Setting up the Projector

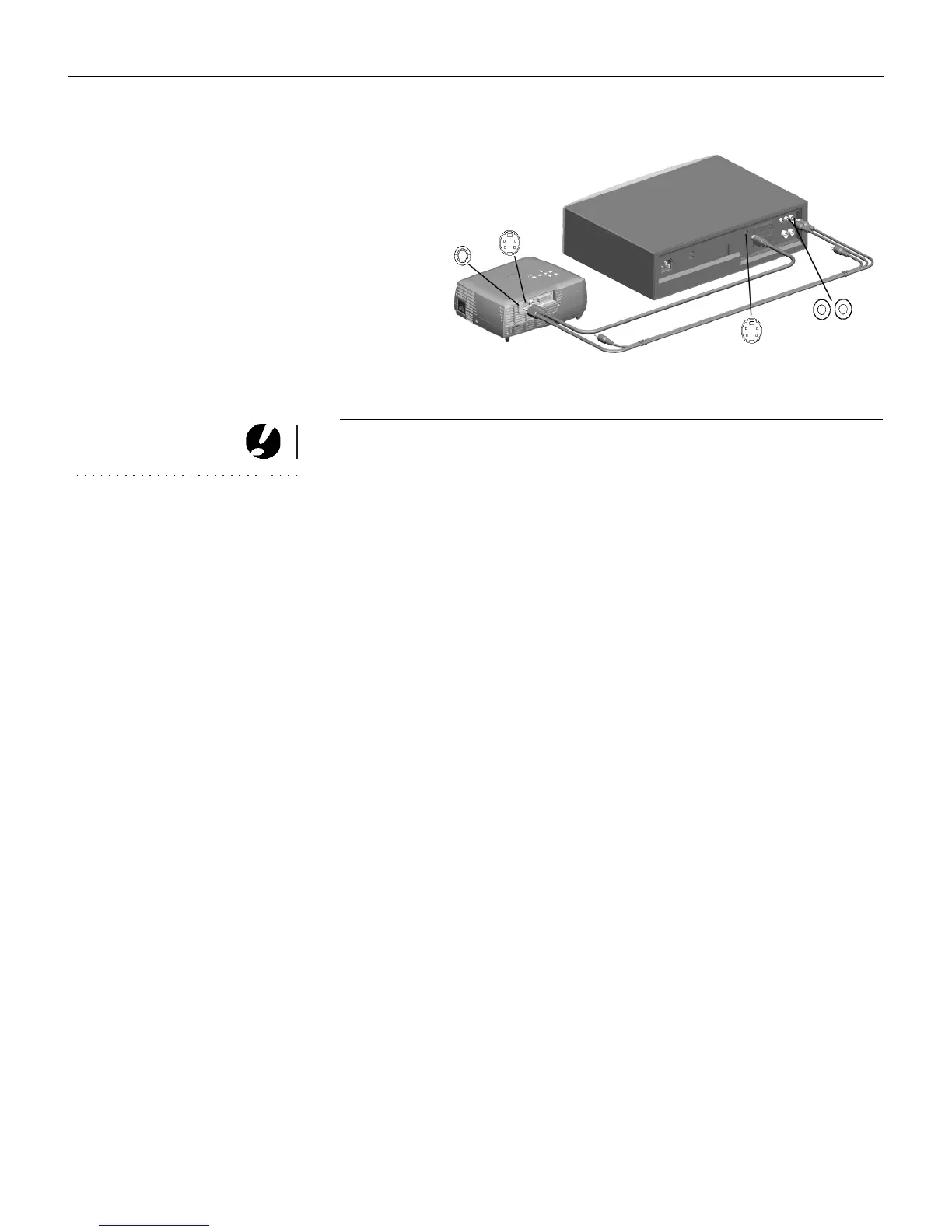

FIGURE 9
Connecting the projector to a VCR using the S-video cable and A/V cable
CAUTION: Your video player
may also have a “Video Out”
connector for a coaxial cable
connection. DO NOT use this to
connect to the projector.
3 Plug the A/V cable’s white connector into the left “audio out”
connector on your video device. Plug the cable’s red connec-
tor into the right “audio out” connector on the video device.
4 Plug the blue end of the A/V cable into the “Audio in” con-
nector on the projector.
• When you are using the S-video cable along with the A/V
cable, the A/V cable’s yellow connectors are not used.
The projector is compatible with these major broadcast video
standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60, and
SECAM. It automatically adjusts to optimize its performance for
the incoming video.
