9
Connecting a Video Player
If your video device (VCR, DVD player, video camera) uses a
round, one-prong composite video connector, use the composite
audio/video (A/V) cable.
If your video device uses a round, four-prong S-video con-
nector, use an S-video cable, ordered separately. S-video
generates a higher quality image.
1 Plug the A/V cable’s round yellow connector into the “video-
out” connector on your video device (Figure 8). This connec-
tor may be labeled “To Monitor.”
If you’re using an S-video cable, connect the round black
connector to the “S-video out” connector on the video
device.
2 Plug the other yellow connector into the “Video” connector on
the projector.
If you’re using S-video, plug the other end of the cable into
the “S-video” connector on the projector.

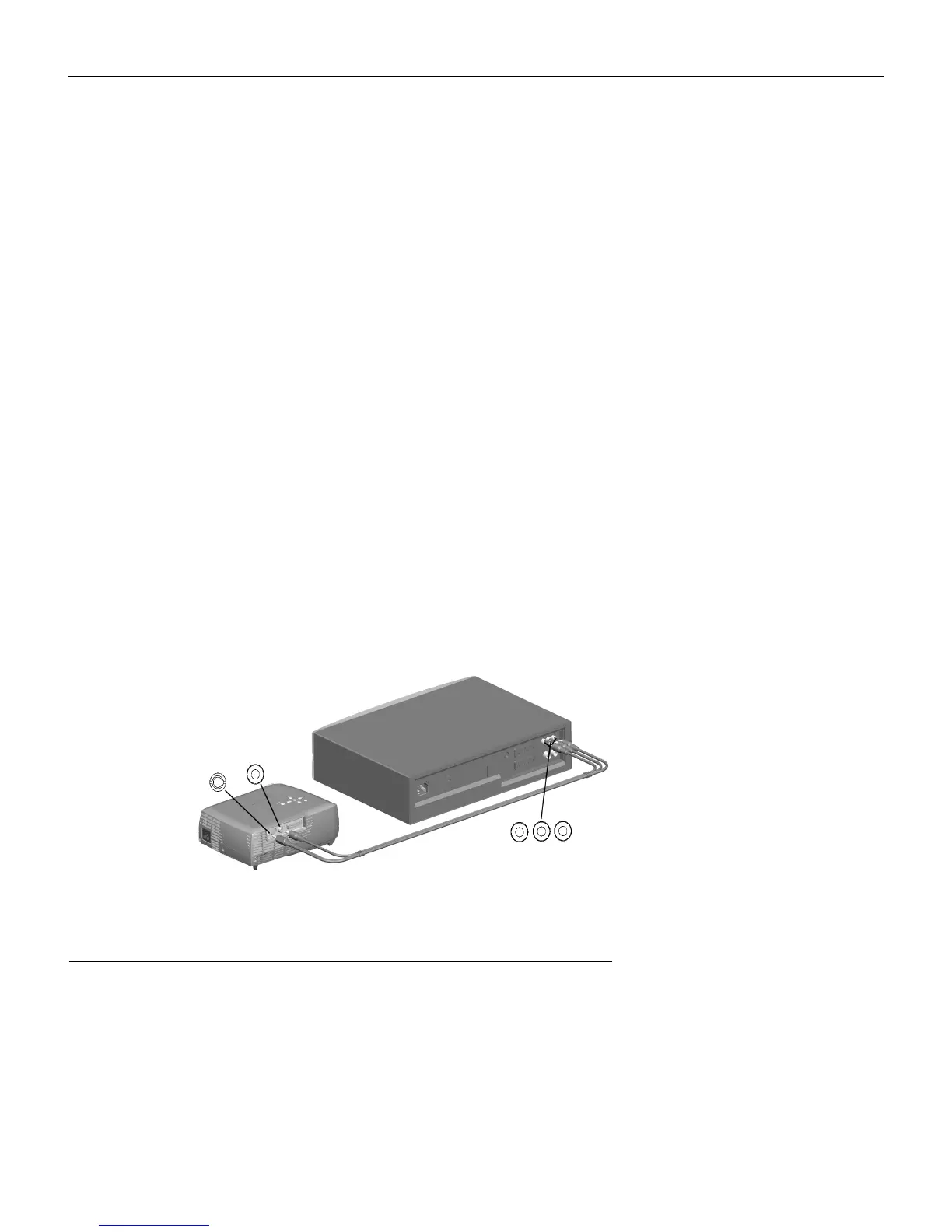

FIGURE 8
Connecting the projector to a VCR using the A/V cable
audio
video
L R
audio
video
