Connector Panel
The projector provides both computer and video connection options,
including:
• M1 for computer and video
• S-video
• Composite RCA audio/video
The projector also provides the following connectors:
• Monitor out
• Audio out
• 12 volt DC output (see below)
12 volt DC output
The 3.5mm mini-jack trigger provides a 12 volt DC output. It provides a
constant output while the projector is on. It has numerous uses. For exam-
ple, if you connect your projection screen to the 12 volt DC output with the
cable that came with your screen, when you turn on the projector the screen
will move down; when you turn the projector off, the screen will return to
the storage position. To use the 12 volt DC output, you must first remove
the safety plug and turn Screen Trigger on in the System menu (see
page 38).
Wireless Projection
You can use the projector’s M1 connector along with the InFocus LiteShow
wireless adapter and software for cable-free digital projection. Contact an
authorized InFocus dealer or visit the website listed on the back inside
cover of this User’s Guide for more information.

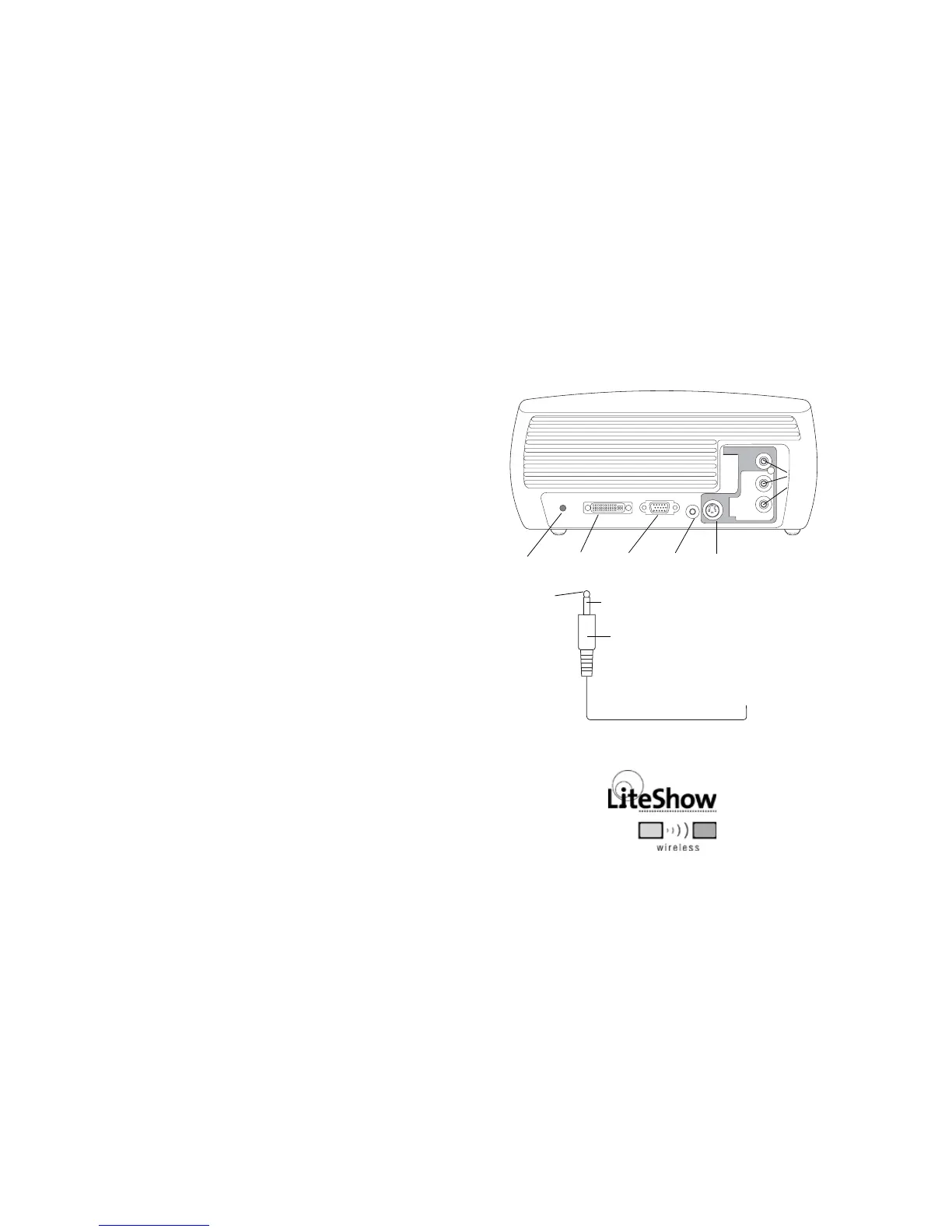

M1computer
monitor
S-video
RCA
12 volt
audio
DC output
out
audio/visual
out
12 volt DC output
+12v
ground
3.5mm plug
connect to, for example, screen relay (see screen
manufacturer for details)
