Projector and Device Connector Guide

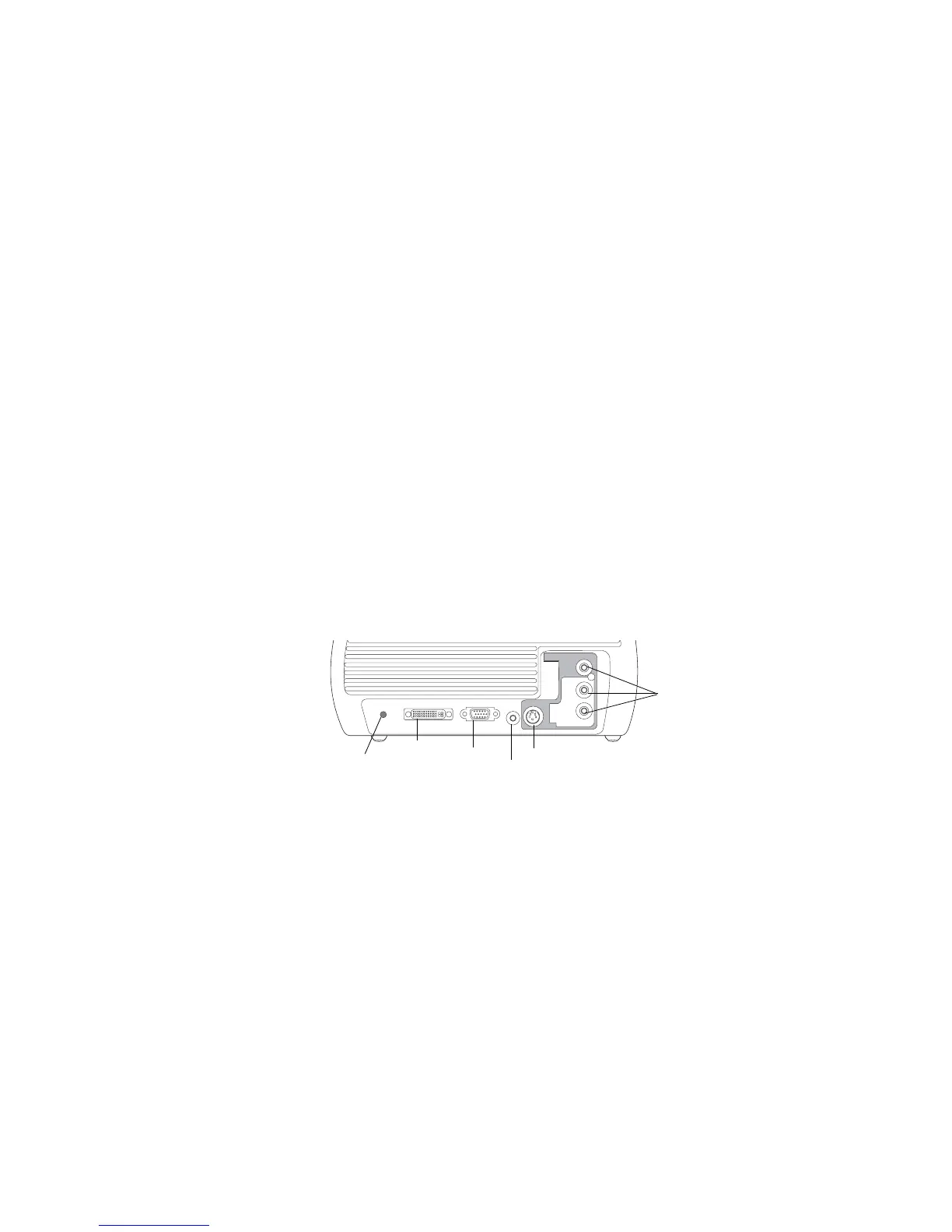

The following illustration and table should help you find the connectors to use and obtain the best resolution possible from your input devices, such as com-

puters, standard VCRs, DVD players (progressive and interlaced), HDTV sources (1080i, 1035i, and 720p HDTV formats), TV and satellite tuners, camcord-

ers, video games (progressive and interlaced), and laser disc players.

Computer connections

Computer connections involve attaching the VGA and USB ends of the provided computer cable to a computer and connecting the other end (M1) to the

Computer In input on the projector. The USB part of the computer cable allows you to advance slides in a PowerPoint™ presentation via a remote control.

See page 11 for computer/projector setup information.

Video connections

The first step for connecting video is deciding what type of output connector you want to connect to the projector. If there is more than one output on your

video device, select the one with the highest quality. Your options are S-video (higher quality) and Composite video (lesser quality).

If you are connecting the projector to HDTV sources, the projector’s M1 computer connector, labeled Computer In, should be used. Keep in mind that

HDTV and progressive sources should only be handled through the projector’s computer connector. You can also use an M1 to Component adapter (avail-

able as an optional accessory) to connect a progressive source’s component connectors to the projector.

computer in

monitor

S-video

projector input connectors

(out)

(HDTV and

progressive

sources)
