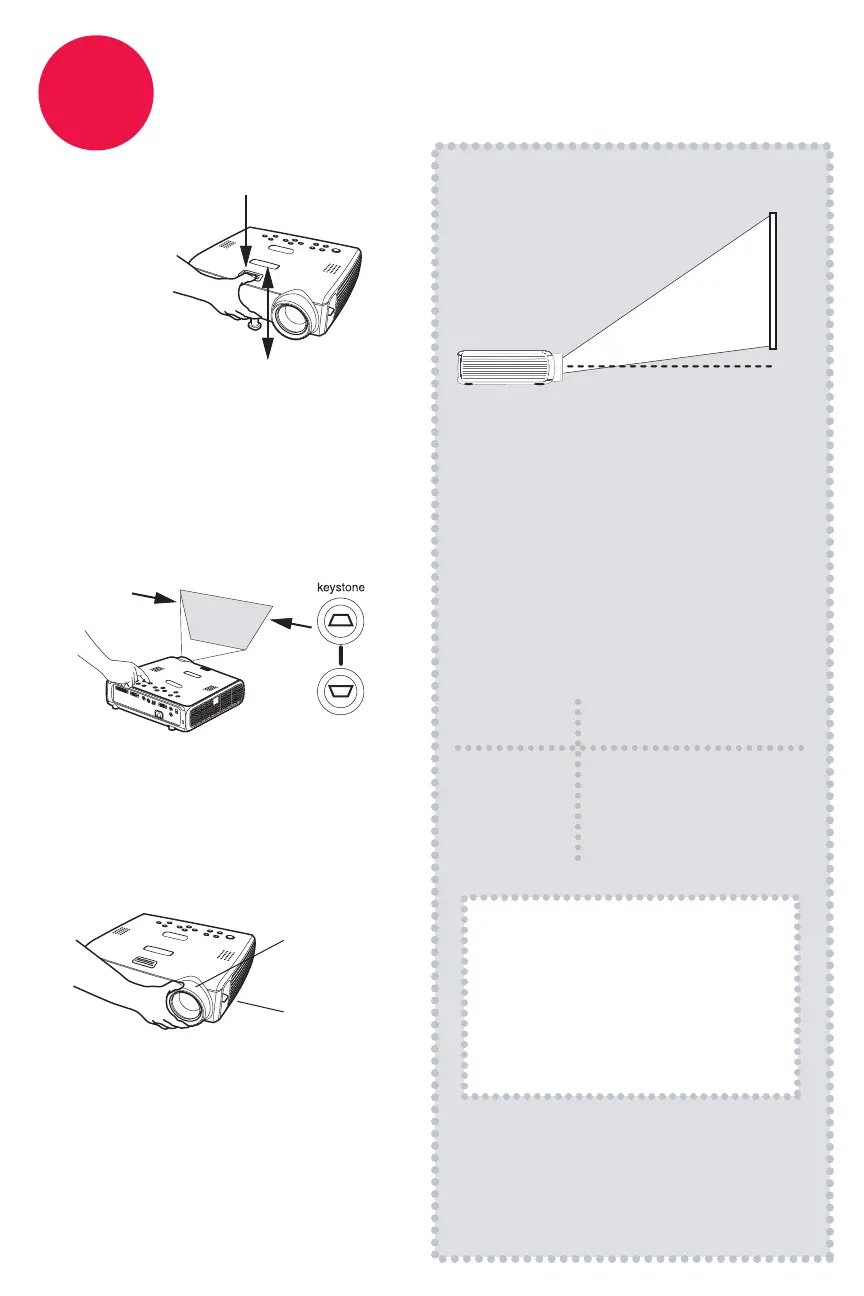

1 Height
2 Keystone
3 Zoom and focus
1 Hold down the release button on
top of the projector.
2 Lift the front of the projector to
the desired height.
3 Release the button.
Press the keystone buttons to
make the picture square.
Adjust zoom first, then focus the
center of the image.
To flip the image, enable Ceiling in the
System menu (press menu, then select
Settings > System > Ceiling).
Ceiling mount?
Adjust the picture
Projector Location
As distance increases, the
image gets larger and
moves upwards.
Focus
Zoom
1
2
Lens center line
Diagonal
Screen Size
Distance to Screen
Minimum Maximum
60" / 1.5m
80" / 2m
92" / 2.3m
150" / 3.8m
8'1" / 2.4m
10'10" / 3.2m
12'5" / 3.7m
20’2" / 6.1m
9'10" / 2.9m
13'1" / 3.9m
15' / 4.5m
24'6" / 7.5m
Interactive Screen Size and
Distance Calculator
www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories
www.infocus.com/store
