3 Installation and Operation
The packing condition and the external outlook of the unit should be inspected
carefully before installation. Retain the packing material for future use.
3.1. Unpacking
3.1.1 Unwrap the pack of UPS.
3.1.2 Take the UPS out of the PE foam.

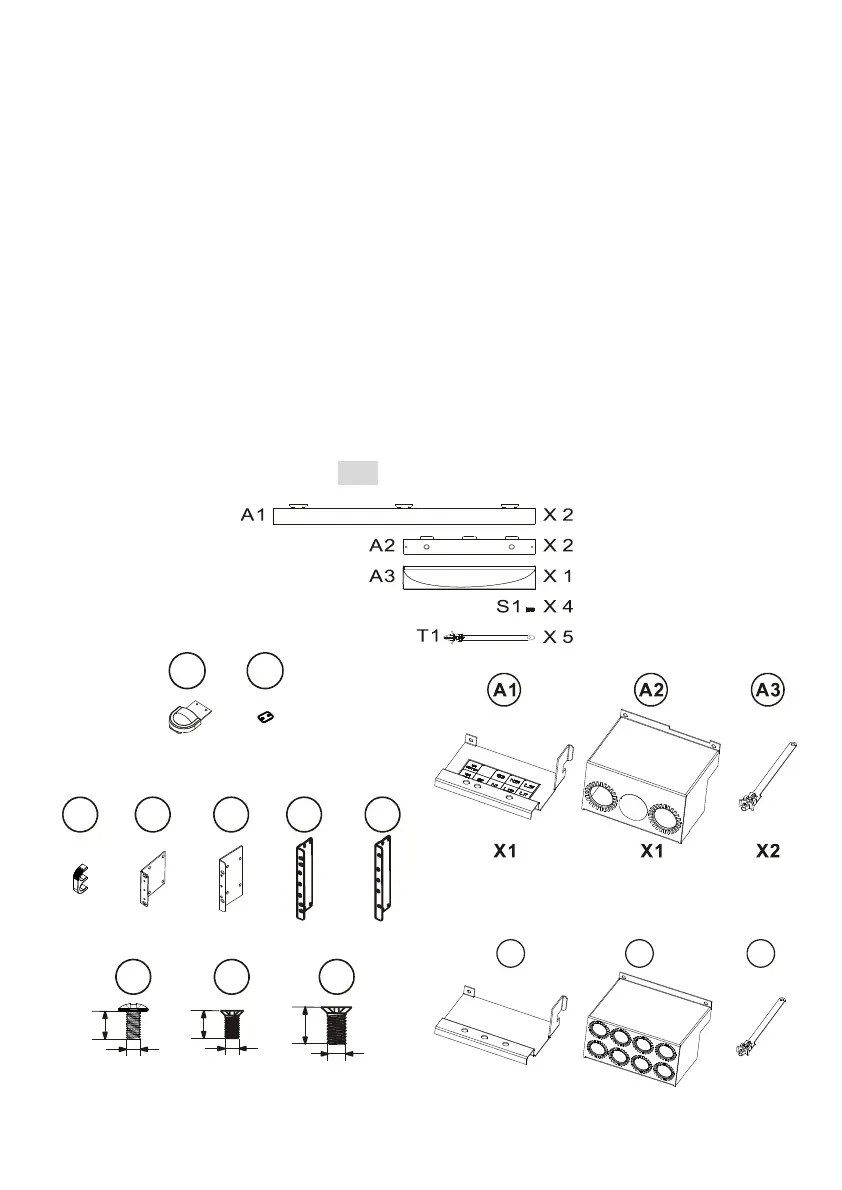

3.1.3 Standard Package includes:
➢ 1 set of Quick Start Manual
➢ 1 set of User's Manual
➢ 1 set of UPS communication software with RS232 cable
➢ 1 set of accessories pack
3.1.4 Package for the UPS with dual input:
➢ Ditto, but with additional 1pcs wire No. 7.
(p.s. Wire No. 7 is to be used at the input/output terminal block of the UPS.
Please refer to Chapter 3.11 for installation.
Tower model
X1
A1
X1
A2
X4
A3
Power Module
PM10K only
15-20K
S2
S3
x8
x6
6
.
0
±
1
.
0
m
m
M3
8
.
0
±
1
.
0
m
m
M4
A1
A3
x4
x1
B1
B2
B3
x2
x2
x2
for 2U
for 3U
B4
for 4U
x2
S1
x2
6
.
0
±
1
.
0
m
m
M3
(PM10K x5)
B5
for 5U
x2
(15-20K x5)
