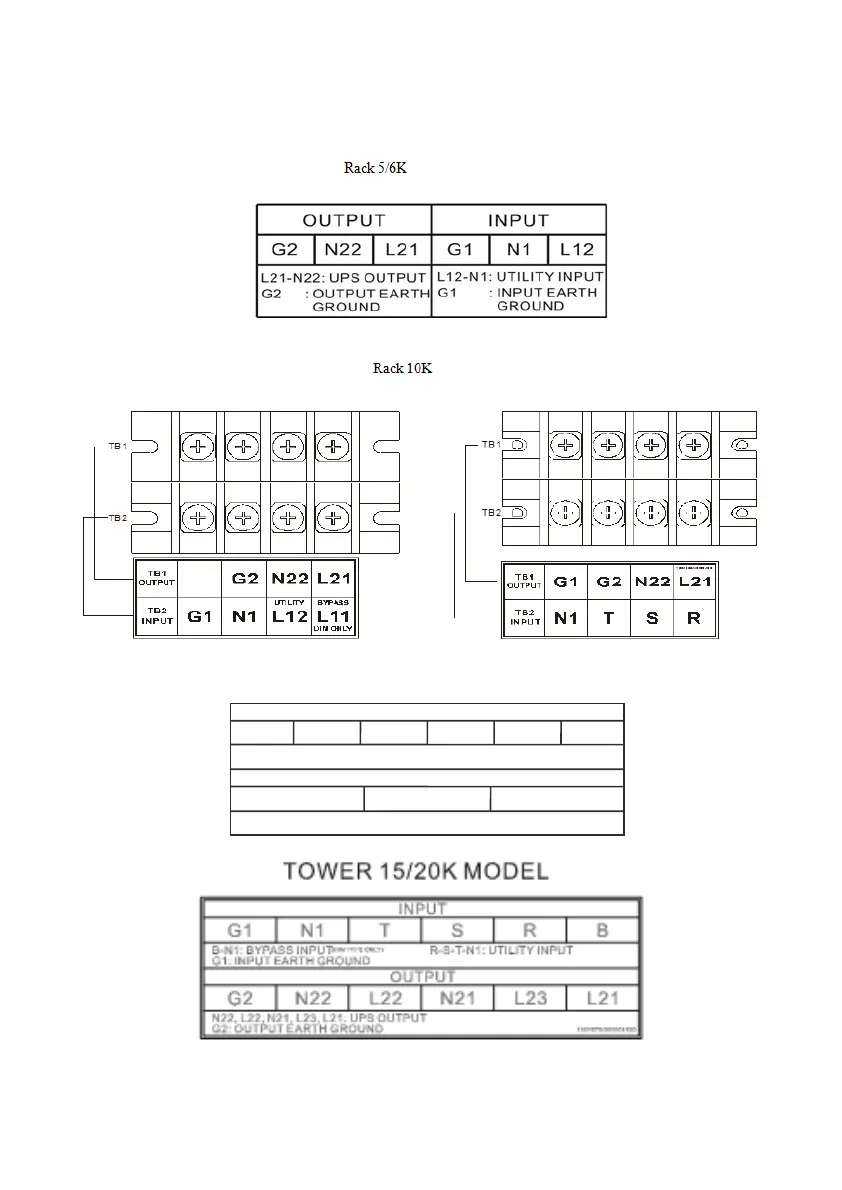

3.11. Terminal Block Explanation
3.12.
●
INPUT
OUTPUT
B
G
S
T
N
R
L21
N22
G
N22-L21 : UPS OUTPUT
G : OUTPUT EARTH GROUND
N-B : BYPASS INPUT
G : INPUT EARTH GROUND
(DIM TYPE ONLY)
N-T-S-R : UTILITY INPUT
Rack 15/20K
